Summary of Contents for Hay PIER SYSTEM

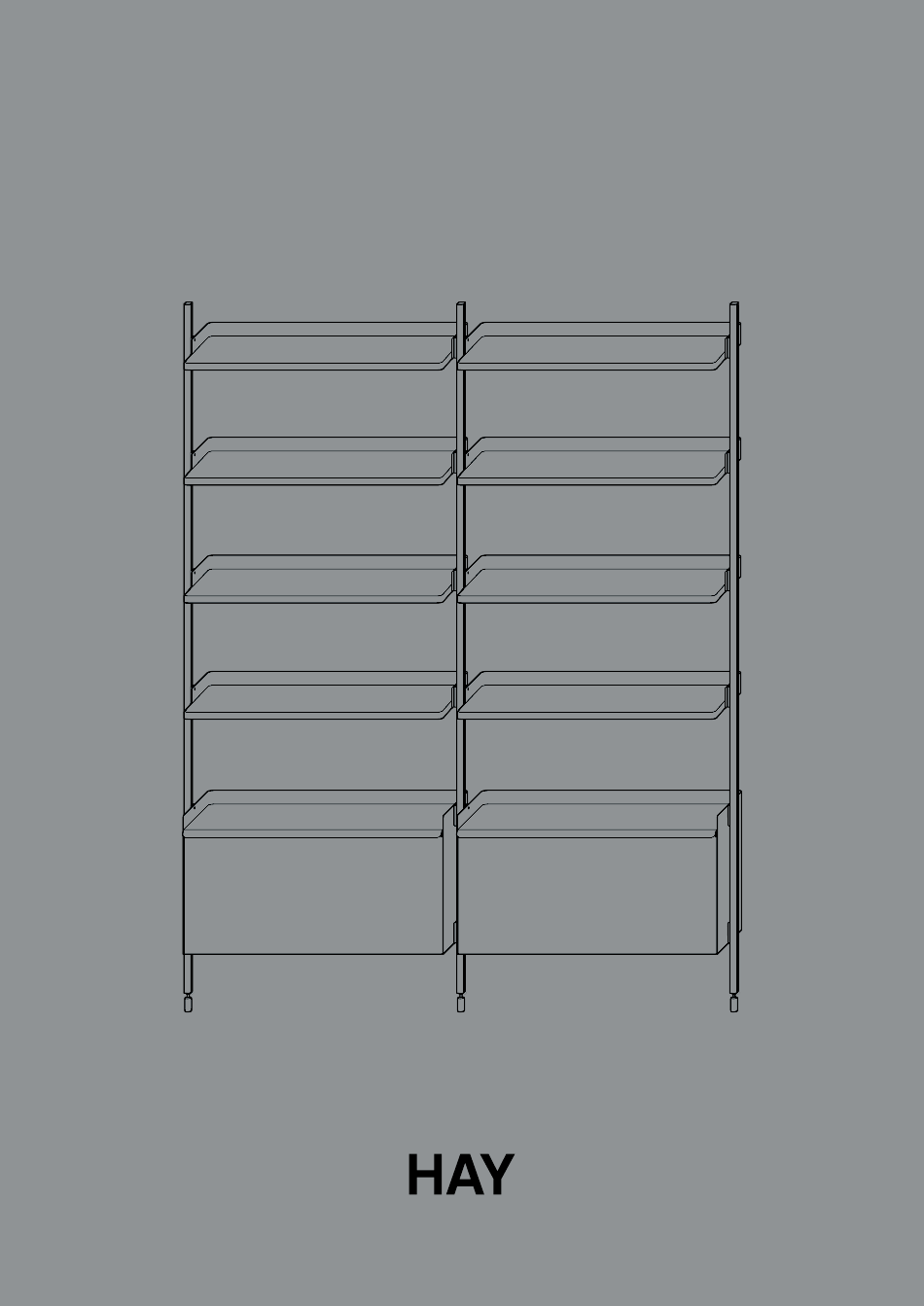

- Page 1 – INSTRUCTION MANUAL – PIER SYSTEM DESIGN BY RONAN & ERWAN BOUROULLEC...
- Page 3 – PARTS – Screw Connector Allen key Mounting tool Wall bracket Shelf Work shelf wall bracket Work shelf Coat rack Work shelf screw Wire shelf Shelf with hanger ...
- Page 4 Protect the products from scratches and other damage while assembling.
- Page 5 – NOTICE – A minimum of two people are required to assemble the Pier System.
-
Page 6: Installation Of Connectors
– INSTALLATION OF CONNECTORS – When assembling your Pier System, you first need to identify where on the profiles the shelves are going to be mounted. This page features three standard configurations, with markings for where the connectors that hold the shelves are to be mounted. - Page 7 CONFIGURATION 2 Raised height: 100 cm Standard height: 74 cm CONFIGURATION 3...
- Page 8 – NOTICE – MAX WEIGHT PER SECTION MAX WEIGHT PER SHELF MAX WEIGHT FOR WORK SHELF MAX WEIGHT FOR CABINET...
-
Page 9: Securing To The Wall
– SECURING TO THE WALL – Pier System is secured to the wall with a wall bracket. The wall bracket must be connected to a shelf that is mounted above the 14th hole in the profile, counting from the bottom upwards. - Page 10 – INSTALLATION OF WALL BRACKET – Make sure you have mounted all connectors 4. Identify your wall type and insert fastening on your profiles before going ahead. hardware suitable for your wall (not provided). Consult a professional if in doubt. ...
- Page 11 8. Insert a wall plug if needed. 9. Move the wall bracket back up and insert the next screw. Do not tighten it completely yet. 10. Use a spirit level (or the mounting tool ) to make sure the wall bracket is level.
- Page 12 CONFIGURATION 1 1. Start by laying a cabinet and a shelf down on their backs. Then Make sure you have finished the first fasten them to the pre-assembled steps with mounting connectors and connectors on the profiles the first wall bracket before going sliding them into the cut-outs.
- Page 13 4. Slide the mounting tool into the top Make sure the connectors on the back of the connector on the profile. shelf go into the designated cut-outs on the wall bracket. 5. Go back to pages 10-11 and follow the instructions for mounting the next 3.
- Page 15 7. Lay the other cabinet on the floor and connect the last profile by sliding the cabinet into the cut-outs of the connectors. 8. Lift the cabinet and profile and slide into the connectors of the middle profile. 9.
- Page 16 CONFIGURATION 2 1. Start by laying a cabinet and a shelf down on their backs. Then fasten them to the pre-assembled Make sure you have finished the first steps with mounting connectors and connectors on the profiles the first wall bracket before going sliding them into the cut-outs.
- Page 17 Make sure the connectors on the back of the 4. Slide the mounting tool into the shelf go into the designated cut-outs on the connector where the top shelf will sit. wall bracket. 5. Go back to pages 10-11 and follow the 3.
- Page 18 6. Slide the mounting tool E. into the 8. Slide the shelves into the connectors in the connector where the work shelf I. will sit. profiles. Make sure the connectors on the back of the top shelf go into the designated cut-outs. 7.
- Page 19 10. Secure the work shelf by inserting the nut right under the profile. Use the provided work shelf screws into the holes on the wrench . Then turn the glider to bring it underside of the shelf, and tighten them with up or down.
- Page 20 CONFIGURATION 3 1. Start with laying a wire shelf a shelf down on their backs. Then fasten them to the pre-assembled Make sure to have finished connectors on the profiles by sliding the first step with mounting them into the cut-outs.
- Page 21 Make sure the connectors on the back of 4. Slide the mounting tool into the top the shelf go into the designated cut-outs connector. on the wall bracket. 5. Go back to pages 10-11 and follow the 3. Slide the next wire shelf and the coat instructions for mounting the next wall ...
- Page 22 6. Slide the next profile onto a wire shelf into the connector on the profile. 7. Slide the wire shelf with the profile into the connectors on the middle profile. Then add the second wire shelf and the coat rack.
- Page 23 8. Slide the last shelf into the connectors in 9. Finally, you can adjust the height of the the profiles. Make sure the connectors on the feet of your shelving by first loosening the back of the top shelf go into the designated nut right under the profile.
-
Page 24: Care And Maintenance
– CARE & MAINTENANCE – Our Care & Maintenance offers guidance for optimal maintenance of your HAY product. It includes advice and instructions on cleaning and caring for specific materials to prolong the life of your furniture. Please find our Care & Maintenance... - Page 28 Havnen 1 8700 Horsens Denmark +45 3164 6000 / hay@hay.com 02/02/2023...
