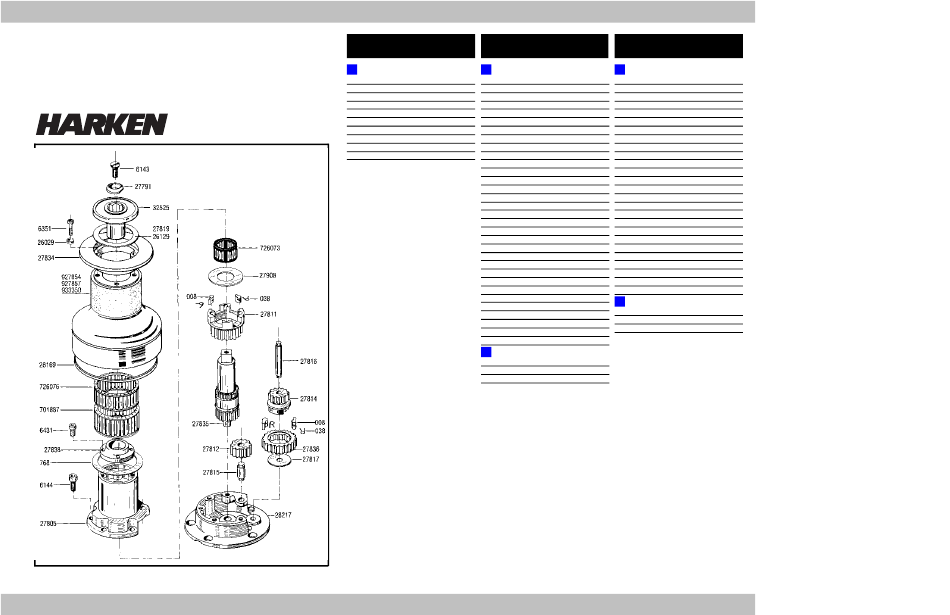

Harken 46.2 Parts And Service Instructions

46.2
Two Speed Winch
®
When ordering parts for service, please include a "B" before each number (i.e. B008).
Tools Two Speed 46.2
Tools Required Parts List
Allen Wrench (6mm) 008 Pawl
Allen Wrench (5mm for Self-Tailing) 038 Pawl Spring
Screwdriver 768 Thrust Washer
Plastic Head Hammer or Mallet 6143 Top Screw
Small Knife 6144 Screw
Brush 6351 Screw
Rags 6431 Screw
Solvent 26029 Plastic Washer
Oil 26129 Plastic Washer
Grease 27791 Plastic Washer
27805 Center Stem
27811 Pawl Gear
27812 Gear
27814 Pawl Gear
27815 Gear Shaft
27816 Gear Shaft
27817 Cover Plate
27819 Handle Socket
27834 Drum Crown
27835 Spindle
27836 Ratchet Gear
27838 Stem Cap
27908 Washer
28169 Red Line Ring
28217 Base
32525 Top Cap
701887 Bearing
726073 Bearing
726076 Bearing
927854 Aluminum Drum
927857 Chrome Drum
933350 Bronze Drum
Suggested Service Kits
BK4512 10 Pawls 008
10 Springs 038
BK4513 100ml Grease
Self-Tailing 46.2st
Parts List
6063 Screw
6069 O - Ring
6106 Ball (32 required)
6143 Top Screw
6431 Screw
6662 Screw
26732 Roller
27699 Washer
27791 Plastic Washer
27841 Handle Socket
27845 Drum Crown
32374 Guide Ring
32537 Top Cap
33602 Upper Jaw
33603 Lower Jaw
33604 Adjusting Castle
33666 Shimming Washer
33702 Spring
33703 Chrome Stripper Arm
33706 Stripper Arm Support
33751 Spring
33753 Line Peeler
33790 Roller Shaft
33898 Bushing
35345 Bronze Stripper Arm
933703 Chrome Stripper Arm Assembly
Suggested Service Kits
BK4512 10 Pawls 008
10 Springs 038
BK4513 100ml Grease
