Harken 53.2 Manual

53.2
Two Speed Winch
53.3 Three Speed Winch
®
When ordering parts for service, please incluce a "B" before each number (i.e. B008).
Tools

Tools Required

Allen Wrench (6mm)
Allen Wrench (5mm for Self-Tailing)
Screwdriver
Plastic Head Hammer or Mallet
Small Knife
Brush
Rags
Solvent
Oil
Grease

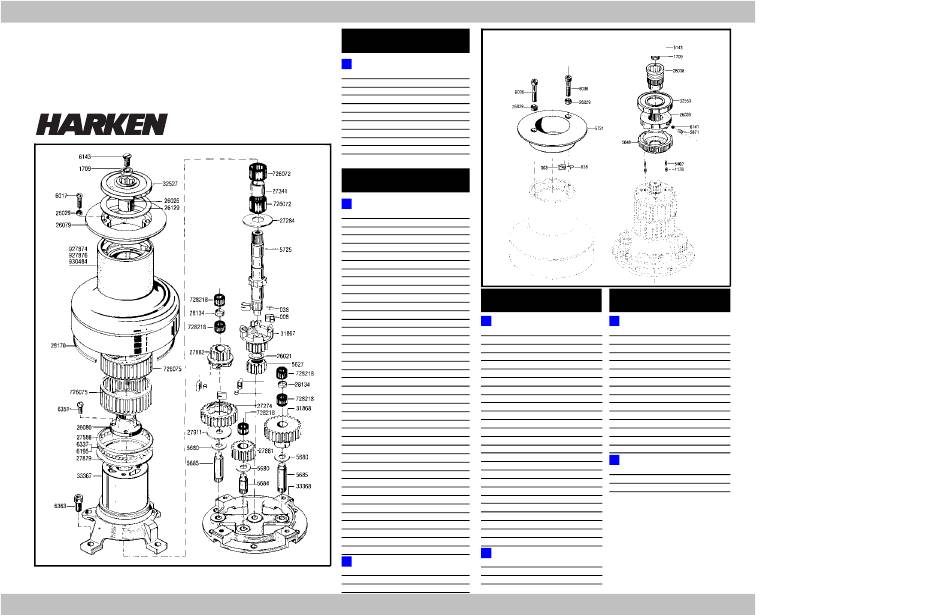

Two Speed 53.2

Parts List

008 Pawl
038 Pawl Spring
1709 Plastic Washer
5627 Gear
5680 Washer
5684 Gear Shaft
5685 Gear Shaft
5725 Spindle
6017 Screw
6143 Top Screw
6195 Delrin Ball
Self-Tailing 53.2st
6337 Stainless Steel Ball
6351 Screw
Parts List
6363 Screw
26021 Washer 1709 Plastic Washer
26026 Handle Socket 6068 Screw
26029 Washer 6069 O - Ring
6106 Ball (32 required)
26079 Drum Crown
6143 Top Screw
26080 Stem Cap
26129 Plastic Washer 6246 Screw
27274 Ratchet Gear 6351 Screw
27284 Washer 26029 Washer
27341 Bearing Spacer 26732 Roller
27696 Handle Socket
27588 Thrust Bearing
27699 Washer
27879 Thrust Washer
27881 Gear 32375 Guide Ring
27882 Pawl Gear 32539 Top Cap
27911 Cover Plate 33606 Upper Jaw
28134 Bearing Spacer 33607 Lower Jaw
33608 Adjusting Castle
28170 Red Line Ring
33610 Drum Crown
31867 Pawl Gear
31868 Gear 33667 Shimming Washer
32527 Top Cap 33702 Spring
33367 Center Stem 33707 Stripper Arm Support
33368 Base 33708 Chrome Stripper Arm
33751 Spring
726072 Bearing
33753 Line Peeler
726075 Bearing
728218 Bearing 33790 Roller Shaft
927874 Aluminum Drum 33898 Bushing
927876 Chrome Drum 933708 Chrome Stripper Arm Assembly
930484 Bronze Drum

Suggested Service Kits

Suggested Service Kits
BK4512 10 Pawls 008
BK4512 10 Pawls 008 10 Springs 038
10 Springs 038 BK4513 100ml Grease
BK4513 100ml Grease
Three Speed 53.3
Three Speed 53.3
Parts List
008 Pawl
038 Pawl Spring
1178 Stop Pin Spring
1709 Plastic Washer
5402 Stop Pin
5648 Lower Drive Ring
5721 Drum Crown
5871 Ball Spring
6036 Screw
6141 Detente Ball
6143 Top Screw
26029 Plastic Washer
26038 Handle Socket
26039 Upper Drive Ring
32553 Top Cap
Suggested Service Kits
BK4512 10 Pawls 008
10 Springs 038
BK4513 100ml Grease
