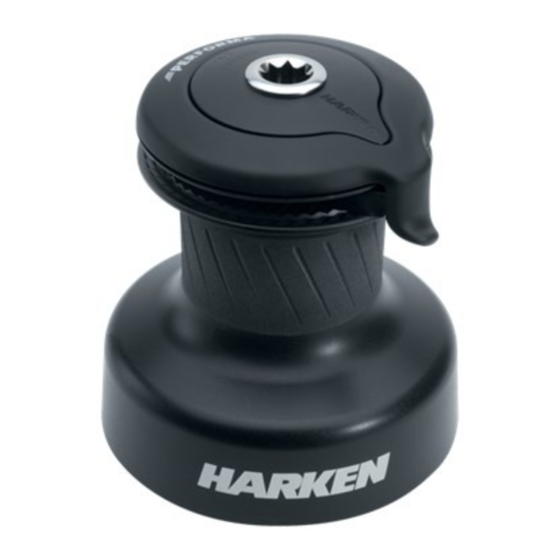

Two Speed Winch
Winch Parts
Installation
Service
Required Tools
Allen Wrench (6 mm)
Screwdriver
Plastic Head Hammer or Mallet
Small Knife
Brush
Rags
Solvent
Oil
Grease

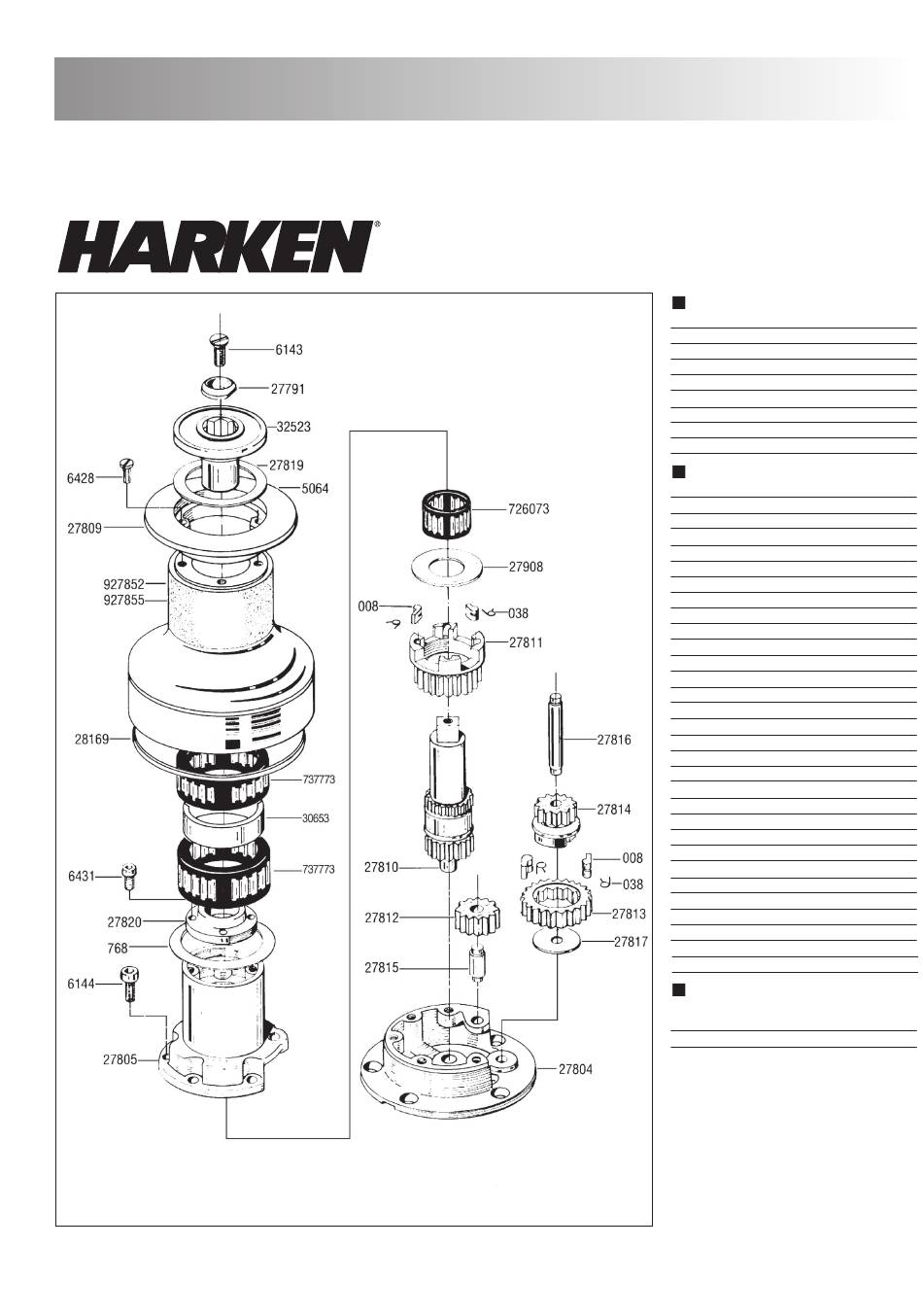

Parts List
008
Pawl
038
Pawl Spring
768
Thrust Washer
5064
Plastic Washer
6143
Top Screw
6144
Screw
6428
Screw
6431
Screw
27791
Plastic Washer
27804
Base
27805
Center Stem
27809
Drum Crown
27810
Spindle
27811
Pawl Gear
27812
Gear
27813
Ratchet Gear
27814
Pawl Gear
27815
Gear Shaft
27816
Gear Shaft
27817
Cover Plate
27819
Handle Socket
27820
Stem Cap
27908
Washer
28169
Red Line Ring
30653
Bearing Spacer
32523
Top Cap
726073
Bearing
737773
Bearing
927852
Aluminum Drum
927855
Chrome Drum
933348
Bronze Drum
Suggested Service Kits
BK4512
10
008 Pawls
10
038 Springs
BK4513
100 ml Grease
When ordering parts, please include a
"B" before each number (i.e. B008).
