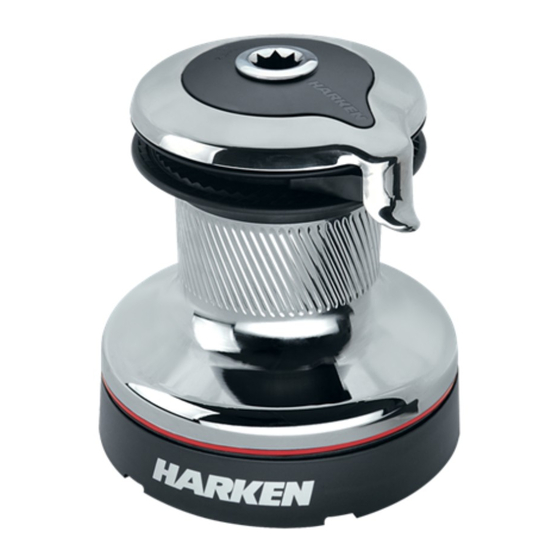

® In case of doubt the Harken Tech Service is at your disposal at techservice@harken.it ® This Manual is available only in English. If you do not fully understand the English language, do not carry out the operations described in this Manual.
It is the installer's responsibility to carry out all structural tests needed to ensure that the deck can bear the load. Harken does not supply the screws needed to install the winch since these may vary depending ®...
Page 5
The winch can be installed following one of the two procedures below (Procedure1 or Procedure 2): Procedure 1 To install the winch you must remove the drum and use bolts as described ahead. Tools needed One medium flat-bladed screwdriver To identify the various parts, refer to the exploded view at the end of this Manual. Torque to apply when assembling 2.
Page 6
5. Lift off the drum n°23 Winch STA, STC and STCW versions: Install the winch on the deck in the position you have chosen, keeping in mind the limits described on page 4 and using socket head (SH) bolts. Winch STBBB and STCCC versions: Install the winch on the deck in the position you have chosen, keeping in mind the limits described on page 4 and using socket head (SH) bolts or hexagonal headed bolts (HH).
Page 7
3. Position the 5 M8 hexagonal headed bolts in their holes 4. Reposition the skirt n°2 in its housing 5. Press down the skirt to position it correctly NOTICE Make sure the skirt is correctly clipped on to the base of the winch. Install the winch on the deck in the position you have chosen, keeping in mind the limits described on page 4 and using hexagonal headed bolts (HH).
64° Ø150 B. Remove the winch and drill the five 8.2 mm diameter holes. C. Bolt the base of the winch to the deck using five M8 bolts (not supplied by Harken ) as ® described at Procedure 1 or Procedure 2, correctly chosen for the thickness and type of the boat deck.
Installation and maintenance of winches must be carried out exclusively by specialized personnel. In the case of doubt contact Harken Tech Service at techservice@harken.it ®...
Page 10
Carry out Procedure 1 as shown in the paragraph on winch installation and then do the following: 6. Completely unscrew the three screws n° 28 7 . Slide out the central shaft n°20 and remove the stripper arm support n°22 8.
Page 11
12. Remove the gear n°10 and remove the pawls carrier n°7 . 13. Remove the gear n°3 14. Remove the pinion n°11. To facilitate the operation press the spring against the pawl with a blade 15. Slide off gear n°6 17 .
Page 12
If it is necessary to replace any jaws of the winch, proceed as follows: I. Unscrew the 4 screws n°26 II. Remove the jaws n°25 ( 4Nm/35 in-lb) Once the winch is completely disassembled, clean the parts with a degreasing that does not leave residues, proper to clean metal components;...
Page 13
Apply Harken grease: 1. on assy socket screw - 2. on drum gear ® NOTICE On every gear and every component that must be greased, apply Harken grease with a brush in a proper ® quantity as shown below: NOTICE...
Page 14
Hold the spring closed and slide the pawl into its housing. Once in position, check that the pawls can be easily opened and closed with a finger. In case of doubt concerning the assembly procedure contact Harken Tech Service: ® techservice@harken.it 46.2 ST...
Harken® limited worldwide warranty - Ordering spare parts Harken limited worldwide warranty ® Refer to the Harken Limited Worldwide Warranty in the Harken Catalogue and on the website ® ® www.harken.com Ordering spare parts Spare parts can be requested from Harken ®...
