WisyCom MTB40S Quick User Manual page 2

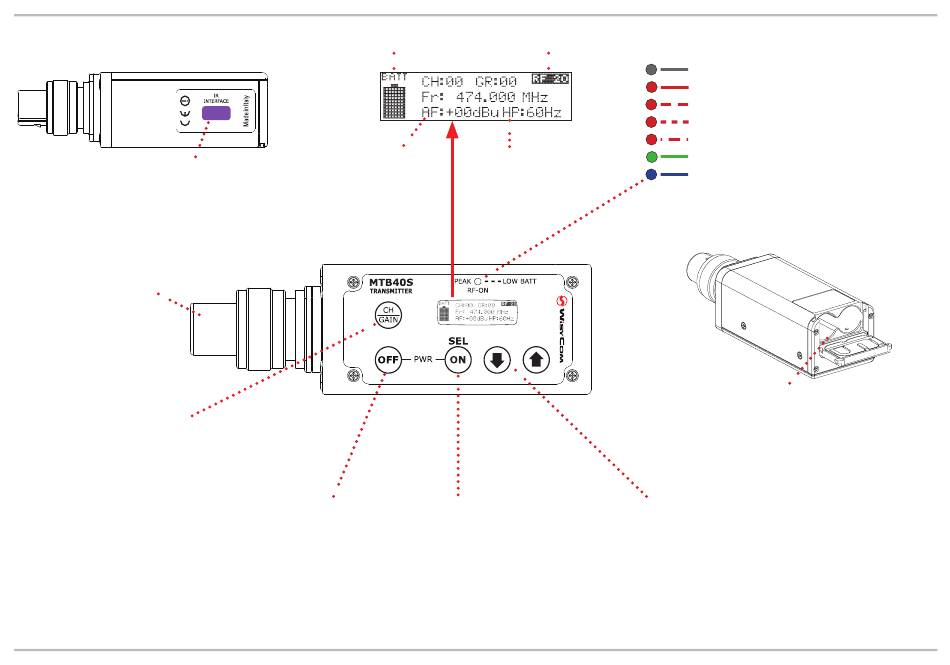

Side view
IR Port
To activate Infrared scroll up twice
from the main menu.
TIP: when you turn on the Tx, infrared
will be enabled automatically for 30
seconds.
XLR mic input
Be sure you enable the
+48V via the menu to
work with condenser
microphones.
CH/Gain shortcut
Push to access channel/group/
frequency menu. Make selection
with SEL button. Scroll through
the menu using the up/down
arrows to enter and adjust gain
in 1dB steps.
Battery status
Audio
max level ( )
dBu
or gain ( )
dB
Power ON & Select
Power OFF
Keep pressed to turn on
Keep pressed
the device.
to switch off
Push to select and save
the device.
menu options.
RF power
High pass
filter
Don't forget to select battery type
installed within the options menu to
optimise battery life.
Up and down arrows
Use the arrows to scroll into the MTB
menu.
MTB40 16/2/21
Status Led
OFF: Transmitter is OFF
RED: RF power OFF/Transmitter ON
RED SLOW BLINK: battery < 25%
RED FAST BLINK: battery < 12%
RED FLASHES: modulation peak
GREEN: RF power is ON
BLUE: limiter is intervening
Back view
Batteries
MTB40 16/2
