Table of Contents

Supported Models

PMD-2201
PMD-2206
Technical Support
 PMD User Manual and Firmware:
http://pmms.icpdas.com/en/download.html
ftp://ftp.icpdas.com/pub/cd/pmd_cd/
 PMD Official Website:
 PMD-2201:
 PMD-4201:
 PMD-2206:
 PMD-4206:
What's in the box?
The package includes the following items:

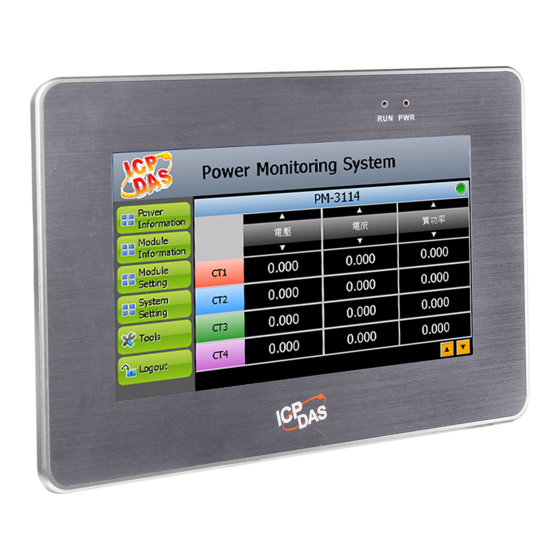

Power Meter Concentrator
(PMD)
Cable * 2
(CA-090910-A)
Copyright © 2016 ICP DAS Co., Ltd. All Rights Reserved
PMD-4201
PMD-4206
http://pmms.icpdas.com/en/PMD_2201.html
http://pmms.icpdas.com/en/PMD_4201.html
http://pmms.icpdas.com/en/PMD_2206.html
http://pmms.icpdas.com/en/PMD_4206.html
microSD card
Panel Clip * 4
PMD Quick Start
Screw Driver (1C016)
M4 x 30L Screw * 4
E-mail: service@icpdas.com
v1.3, Sep 2019
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PMD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ICP DAS USA PMD

Summary of Contents for ICP DAS USA PMD

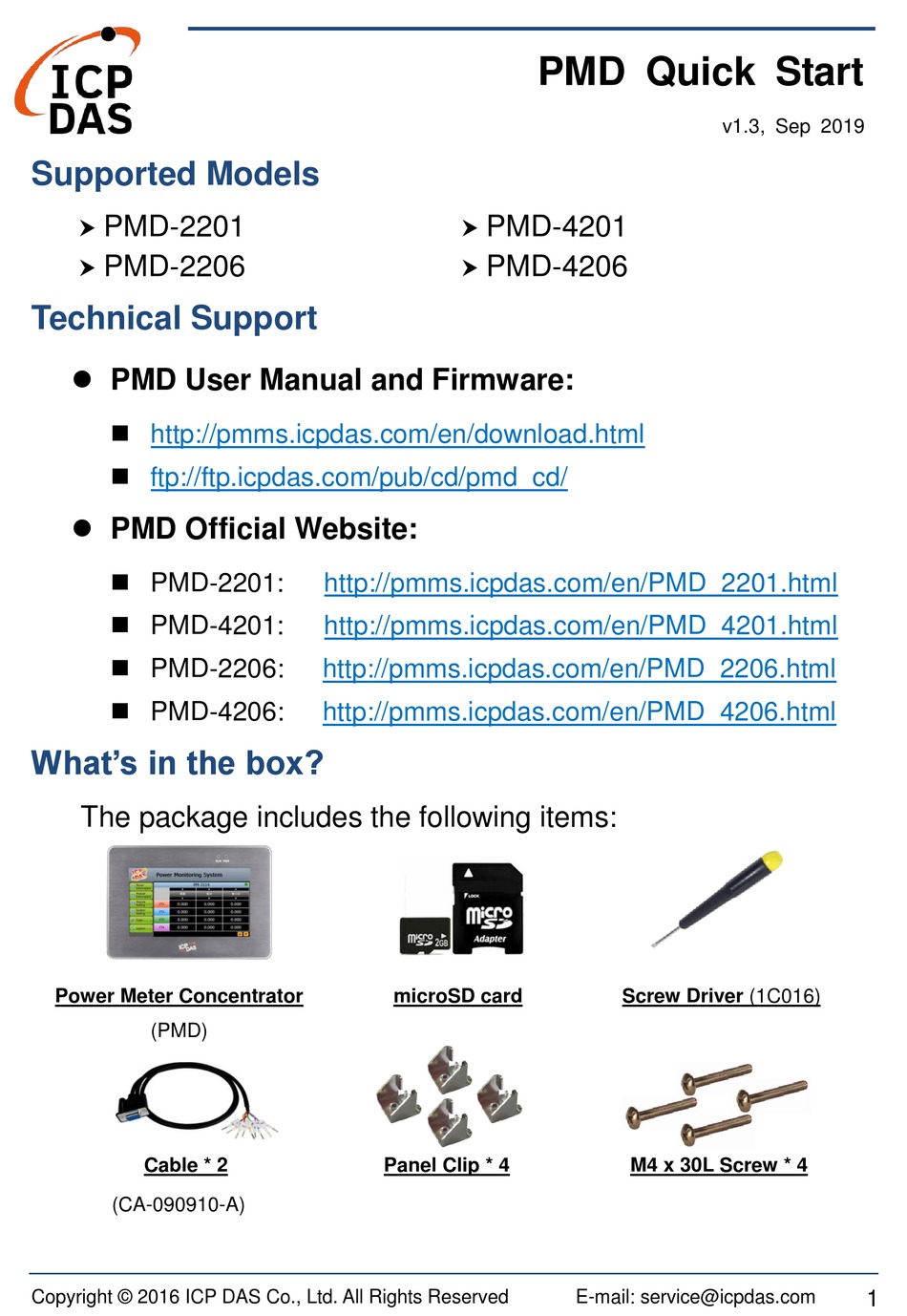

  • Page 1 PMD Quick Start v1.3, Sep 2019 Supported Models  PMD-2201  PMD-4201  PMD-2206  PMD-4206 Technical Support  PMD User Manual and Firmware:  http://pmms.icpdas.com/en/download.html  ftp://ftp.icpdas.com/pub/cd/pmd_cd/  PMD Official Website:  PMD-2201: http://pmms.icpdas.com/en/PMD_2201.html  PMD-4201: http://pmms.icpdas.com/en/PMD_4201.html  PMD-2206: http://pmms.icpdas.com/en/PMD_2206.html ...
  • Page 2 Mounting the Hardware The PMD can be mounted on a panel of maximum thickness 5 mm. Adequate access space can be available at the rear of the instrument panel for wiring and servicing purposes. To ensure proper ventilation for your PMD,...
  • Page 3 2) Attach the PMD to the cut-out hole. 3) Insert the panel mounting clips into the upper and lower ventilation holes. 4) Screw the panel mounting clips to the panel. Recommended Screw Torque: 3.4 ~ 4.5 kgf-cm. Copyright © 2016 ICP DAS Co., Ltd. All Rights Reserved...
  • Page 4 Configuring the boot mode Before starting PMD at the first time, be sure that the rotary switch is placed in the “0” position. The rotary switch must be placed in the "0" position Connect to PC, Network and Power The PMD is equipped with an RJ-45 Ethernet port for connection to an Ethernet hub/switch and PC.
  • Page 5 Assign a New IP to PMD The PMD is an Ethernet controller, which comes with a default IP setting. The factory default IP settings of LAN1 are as follows: Item Default IP Address 192.168.255.1 Subnet mask 255.255.0.0 Gateway 192.168.0.1 DNS Server 8.8.8.8 (Default: Google DNS Server)
  • Page 6 Step4: Clicking on the “Save” button to save the setting. Now you can use the Browser to connect to the PMD’s IP address to open the Web page of PMD. 2. Network setting by Remote Side Web Page Interface Change the PC’s IP setting as following.
  • Page 7 Please follow the steps below to build a power monitoring and management applications with ICP DAS PMD & Power Meter. Step 1: Open a browser, and type in the URL address of the PMD Open a browser and type in the URL address(The new IP setting) of the PMD in the address bar.
