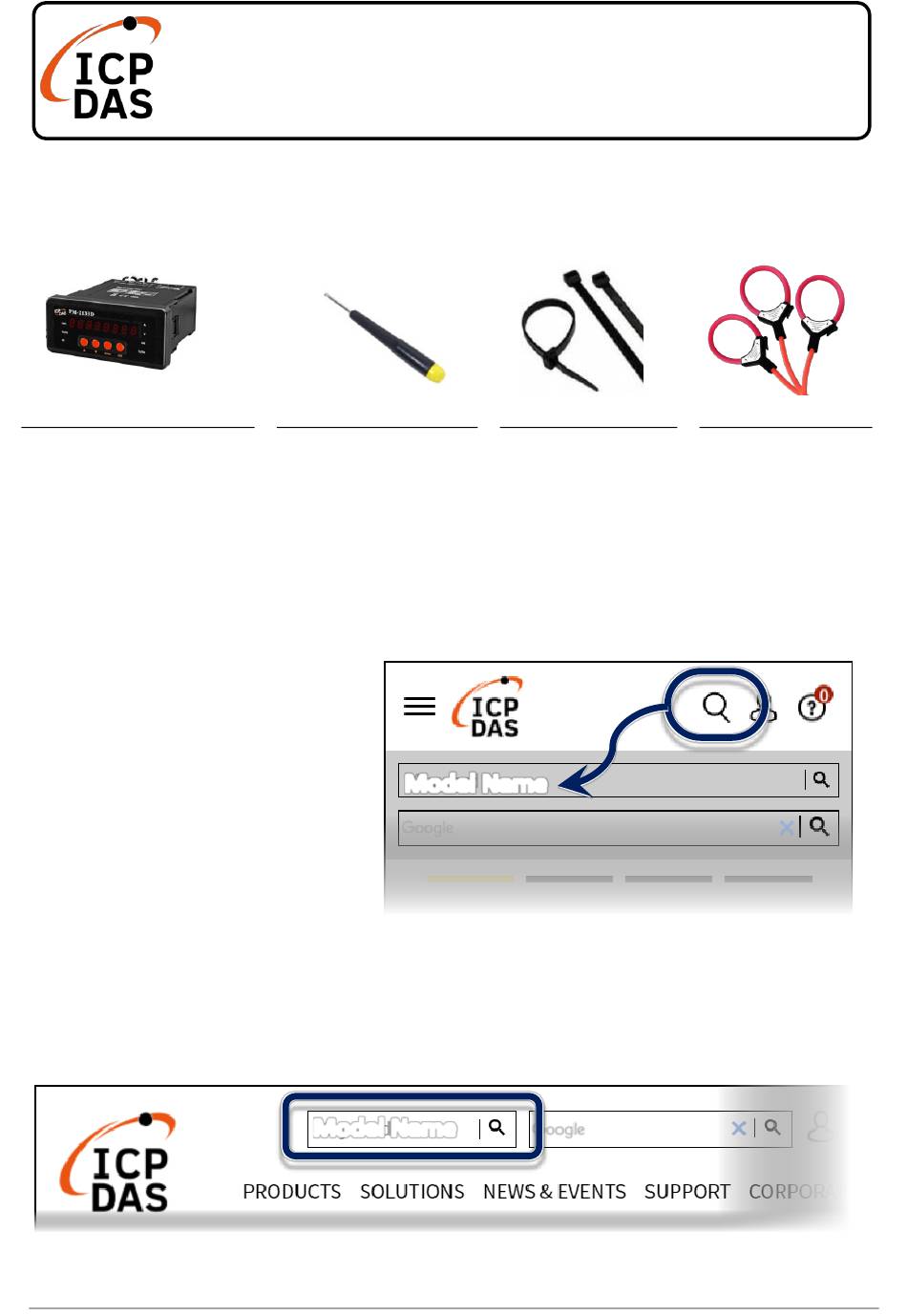

Packing List

In addition to this guide, the package includes the following items:

PM-2133D-RCT * 1

Technical Support

service@icpdas.com

www.icpdas.com

 For Desktop Web

PM-2133D-RCT Quick Start

Screw Driver * 1

Resources

How to search for drivers, manuals and

spec information on ICP DAS website.

 For Mobile Web

Model Name

v1.0, April 2025

Cable ties * 3

CT * 3

Need help?

Do you have a question about the PM-2133D-RCT and is the answer not in the manual?

Questions and answers

Summary of Contents for ICP DAS USA PM-2133D-RCT

Page 1 PM-2133D-RCT Quick Start v1.0, April 2025 Packing List In addition to this guide, the package includes the following items: PM-2133D-RCT * 1 Screw Driver * 1 Cable ties * 3 CT * 3 Resources How to search for drivers, manuals and Technical Support spec information on ICP DAS website.
Page 2  Please read this operation manual carefully before using.  Please re-confirm the measure position.  Reconfirm the RST (ABC) phase sequence of the power system.  Meter auxiliary power for PM-2133D-RCT series is AC +85 ~ +264 VAC (277 VAC available).
Page 3 2.2.Voltage Input 1. PM-2133D-RCT series: Input Voltage up to 500V. For any higher Input Voltage large than 500V, please add the PT (power transformer), and Change PT RATIO setup. 2. Confirm the RST (ABC) phase sequence. 2.3. Connection Please firstly check the current input terminal, and then in red black, red black, red black wire sequences (CT1-K, CT1-L, CT2-K, CT2-L, CT3-K, CT3-L).
Page 4 2. Due to small variations in the winding density and coil cross-sectional area the transducer output varies slightly depending on the position of the current within the coil loop. The diagram below shows the variation of accuracy throughout the coil. The variation is greatest when the current is positioned near the junction of the connecting cable and the coil, where there is some discontinuity, and the error here can be typically 5%.
Page 5 2.5.Wiring  1P2W-1CT  1P3W-2CT  3P3W-2CT (PM-4324)
Page 6  3P3W-3CT  3P3W-2CT (If phase B is in a floating state, it may pick up induced voltage signals. To avoid this, phase B can be connected to the neutral (N) line.)
Page 7  3P4W-3CT(PM-2133D)
Page 8 3. Keypad, LED Indicator & Display 3.1.Function of LED Display, Indicator and Keypad PM-2133D has a built-in 8-Digit LED Display to display the power data measured by the meters. The 7 LED Indicators are used to indicate the type of the power data which are currently shown on the 8-Digit LED Display, and the status of RS-485 communication (Tx/Rx).
Page 9 3.2.1 Normal Mode After power up PM-2133D, the default power data shown is power data of I_a (Phase A Current). User can press the "▲" button and "▼" button of the Keypad to select the desired power data to be displayed on PM-2133D.
Page 10 3.2.2 Setup Mode User can press the buttons of Keypad to enter the Setup Mode to adjust the parameters setting of PM-2133D. The steps are as below: i. Press the "Enter" button to enter the Setup mode, all the LED Indicators of PMD-2133D will be in "ON"...
Page 11  : PT ratio setting. The range is from 0.01 to 655.35.  Press the "Enter" button, the hundreds digit of the PT ratio will blink. Press the "▲" button and "▼" button to adjust the setting of hundreds digit. ...
Page 12 : Display Voltage setting.   Press the "Enter" button, the current Display Voltage setting will blink.  Press the "▲" button and "▼" button to adjust the Display Voltage setting. There are 3 options: Automatic( ), "Show as Vln" ) and "Show as Vll"...
Page 13 4. Mounting the PM-2133D 1. Prepare a panel and cut a hole to the specified size (unit: mm). 46.0± Panel thickness: 1 to 5 mm 2. Remove the latch assembly. i. Press the protruding pin of the latch assembly. The protruding pin...
Page 14 ii. Slide the latch assembly to the groove, and then remove the latch assembly. Keep on pressing the protruding pin to slide the latch assembly to the groove The groove 3. Attach the PM-2133D to the cut-out hole. 4. Attach the latch assembly, and then slide the latch assembly toward the panel.
Page 15 5. Common Malfunction Analysis: 5.1. PC and meter cannot make the connection with RS-485？ Add the Bias Resistor on RS-485 Network for stable signal The RS-485 master is required to provide the bias for PM-2133D series. Otherwise, the tM-SG4 or SG-785 should be added to provide the bias.
