ICP DAS USA PM-3133 Quick Start Manual

Hide thumbs Also See for PM-3133:
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
Packing List
In addition to this guide, the package includes the following items:
PM-3133
PM-3133i
Technical Support
service@icpdas.com
www.icpdas.com
 For Desktop Web
PM-3133/PM-3133i Quick Start
Screw Driver * 1
Resources
How to search for drivers, manuals and
spec information on ICP DAS website.
 For Mobile Web
Model Name
Model Name
v1.4, April 2025
Cable ties * 3
P1

Advertisement

loading
Need help?

Need help?

Do you have a question about the PM-3133 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ICP DAS USA PM-3133

Summary of Contents for ICP DAS USA PM-3133

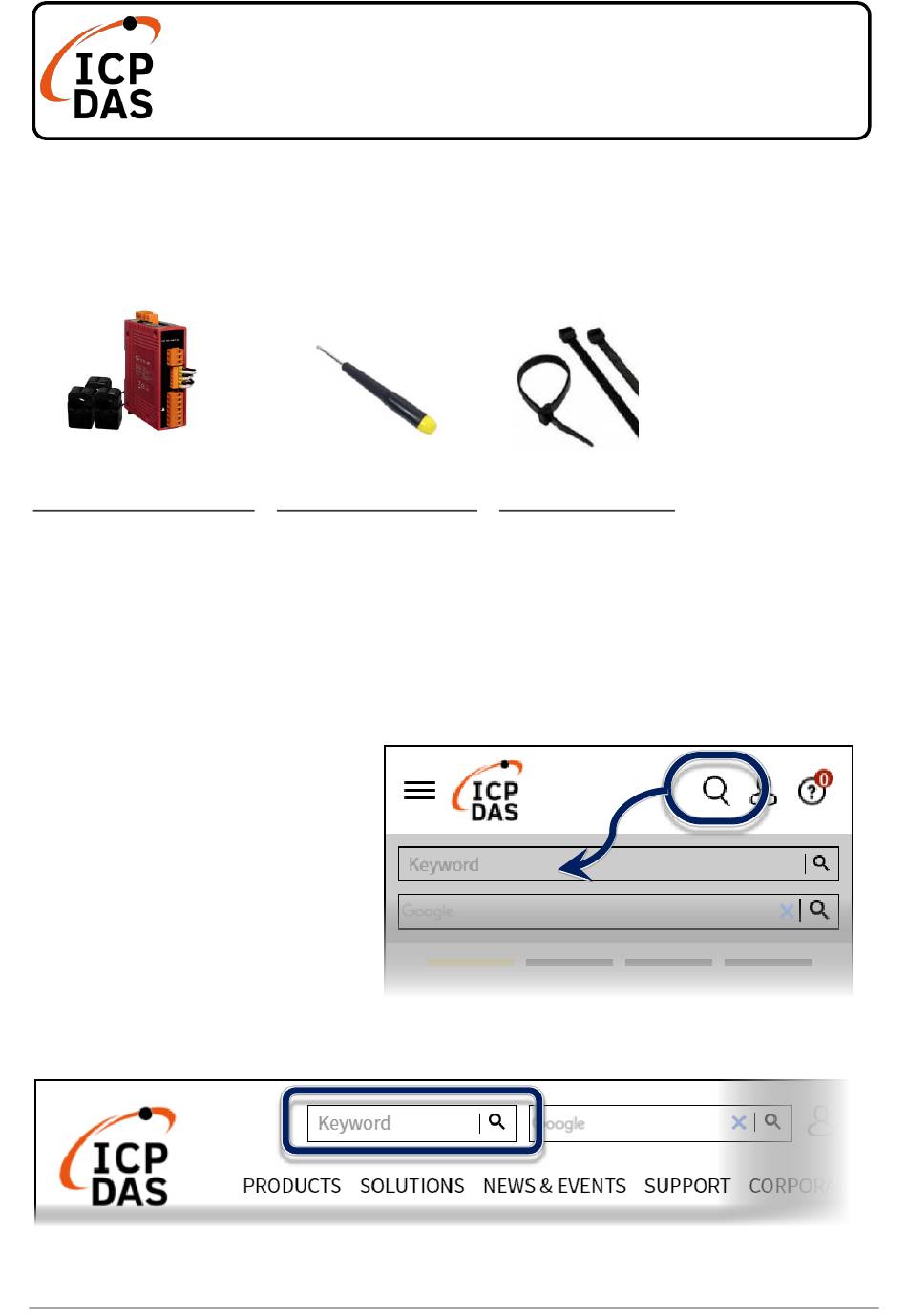

  • Page 1 PM-3133/PM-3133i Quick Start v1.4, April 2025 Packing List In addition to this guide, the package includes the following items: PM-3133 Screw Driver * 1 Cable ties * 3 PM-3133i Resources How to search for drivers, manuals and Technical Support spec information on ICP DAS website.

  • Page 2: Caution And Warning

     Reconfirm the RST (ABC) phase sequence of the power system.  Meter auxiliary power: DC +12V to +48V. 2.2.Voltage Input 1. PM-3133 series: Input Voltage up to 500V. PM-3133i series: Input Voltage up to 600V. For any input voltage greater than the meter rating, please add a PT (Potential Transformer) and update the PT RATIO setting.
  • Page 3 2.3.Wiring  1P2W-1CT  1P3W-2CT...
  • Page 4  3P3W-3CT  3P3W-2CT (If phase B is in a floating state, it may pick up induced voltage signals. To avoid this, phase B can be connected to the neutral (N) line.)
  • Page 5  3P4W-3CT 2.4. Wire Disconnection 1. Unlock the CT clip and remove the CT from the power cable, avoiding disconnecting the CT terminal wires if possible (do not disconnect the terminal wirers first). Warning! If you need to remove the CT terminal wires, make sure to first detach the CT before removing the CT terminal wires.
  • Page 6 2.5.CT Installation Steps  At the bottom of the CT, there  Open the CT clip. is a “K→L” mark.  Make sure the power current  Complete the Installation. direction follow the “K→L” marking on the CT and then close the CT clip.
  • Page 7 3. Communication 3.1.RS-485 & CAN setting  Default setting for RS-485: 19200, n, 8, 1 ,for CAN: 125K bps  DIP switch (SW1-SW6) is used for Modbus address(or CANopen Node ID) setting, default is 1, i.e. all OFF For example: Modbus address(or CANopen Node ID) is 10，find the table of DIP switch 1-6 is ON, OFF, OFF, ON, OFF, OFF ...

  • Page 8: Questions And Answers

     Select the different wiring mode (Please select the Software setting, if 1P2W-1CT or 1P3W-2CT is used) PM-3133 PM-3133 -MTCP/ Models PM-3133i PM-3133i -MTCP Wiring SW 9 SW 10 SW 1 SW 2 Software setting 3P3W-2CT 3P3W-3CT 3P4W-3CT Ethernet default settings：...

This manual is also suitable for:

Pm-3133i
