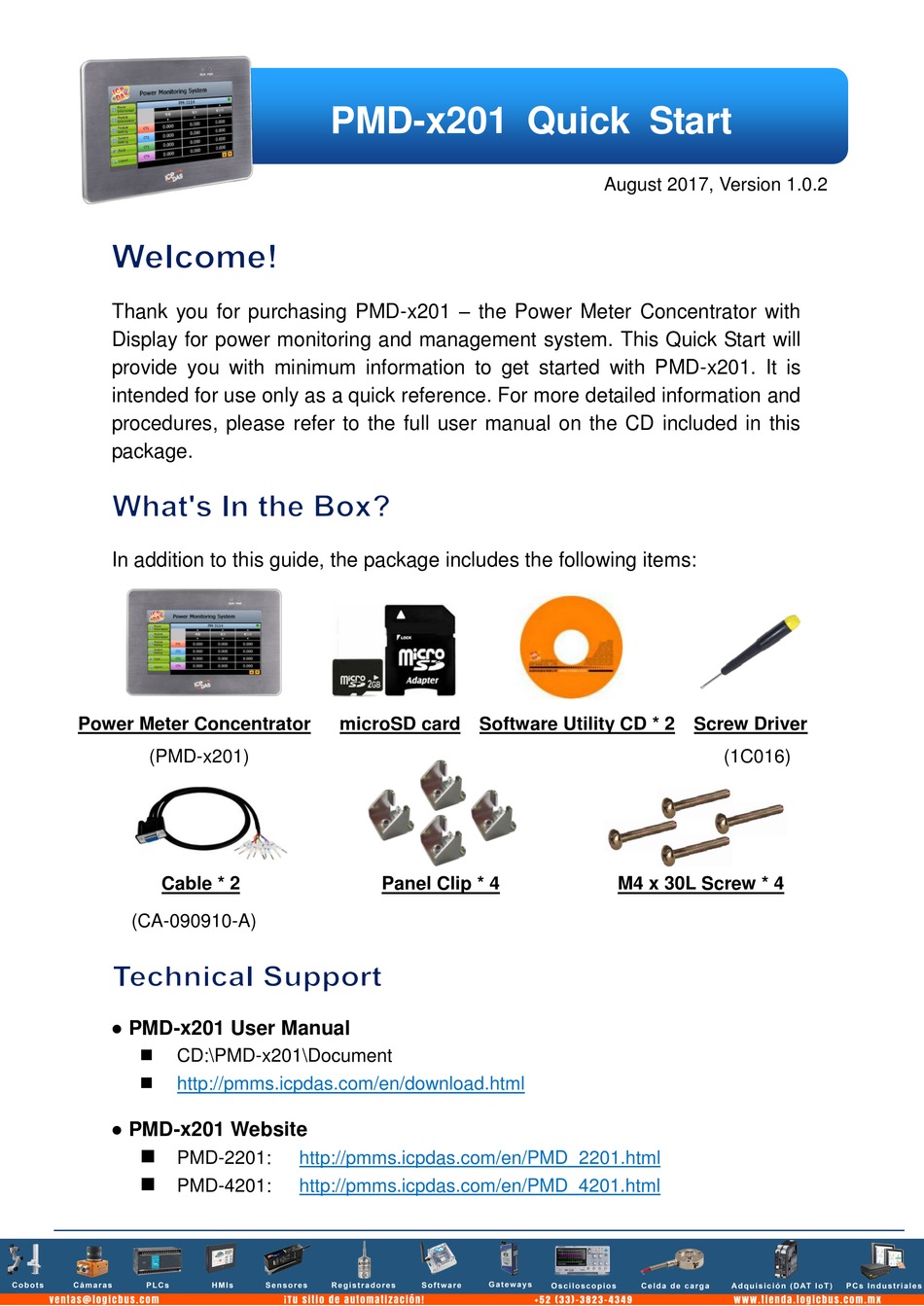

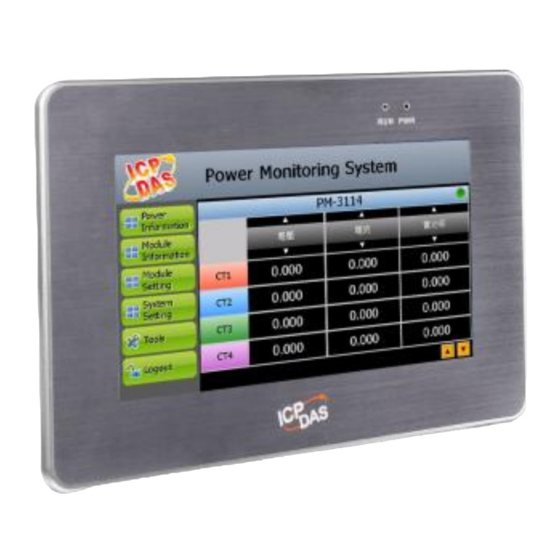

Thank you for purchasing PMD-x201 – the Power Meter Concentrator with
Display for power monitoring and management system. This Quick Start will
provide you with minimum information to get started with PMD-x201. It is
intended for use only as a quick reference. For more detailed information and
procedures, please refer to the full user manual on the CD included in this
package.
In addition to this guide, the package includes the following items:
Power Meter Concentrator
(PMD-x201)
Cable * 2
(CA-090910-A)
● PMD-x201 User Manual
CD:\PMD-x201\Document
http://pmms.icpdas.com/en/download.html
● PMD-x201 Website
PMD-2201:
PMD-4201:
PMD-x201 Quick Start
microSD card Software Utility CD * 2 Screw Driver
Panel Clip * 4
http://pmms.icpdas.com/en/PMD_2201.html
http://pmms.icpdas.com/en/PMD_4201.html
August 2017, Version 1.0.2
(1C016)
M4 x 30L Screw * 4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PMD- 201 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ICP DAS USA PMD- 201 Series

  • Page 1 PMD-x201 Quick Start August 2017, Version 1.0.2 Thank you for purchasing PMD-x201 – the Power Meter Concentrator with Display for power monitoring and management system. This Quick Start will provide you with minimum information to get started with PMD-x201. It is intended for use only as a quick reference.
  • Page 2 -------------------------------------------------------------------------------- Mounting the Hardware The PMD-x201 can be mounted on a panel of maximum thickness 5 mm. Adequate access space can be available at the rear of the instrument panel for wiring and servicing purposes. To ensure proper ventilation for your PMD-x201, leave a minimum of 50 mm space between the top and bottom edges of the PMD-x201 and the enclosure panels.
  • Page 3 2) Attach the PMD-x201 to the cut-out hole. 3) Insert the panel mounting clips into the upper and lower ventilation holes. 4) Screw the panel mounting clips to the panel. Recommended Screw Torque: 3.4 ~ 4.5 kgf-cm.
  • Page 4 -------------------------------------------------------------------------------- Configuring the boot mode Before starting PMD-x201 at the first time, be sure that the rotary switch is placed in the “0” position. The rotary switch must be placed in the "0" position -------------------------------------------------------------------------------- Connect to PC, Network and Power The PMD-x201 is equipped with an RJ-45 Ethernet port for connection to an Ethernet hub/switch and PC.
  • Page 5 -------------------------------------------------------------------------------- Assign a New IP to PMD-x201 The PMD-x201 is an Ethernet controller, which comes with a default IP setting. The factory default IP settings of LAN1 are as follows: Item Default IP Address 192.168.255.1 Subnet mask 255.255.0.0 Gateway 192.168.0.1 DNS Server 8.8.8.8 (Default: Google DNS Server) The user can modify the Network setting of PMD-x201 by two interfaces...
  • Page 6 Step4: Clicking on the “Save” button to save the setting. Now you can use the Browser to connect to the PMD-x201’s IP address to open the Web page of PMD-x201. 2. Network setting by Remote Side Web Page Interface Step1: Change the PC’s IP setting as following. ...
  • Page 7 -------------------------------------------------------------------------------- Go to PMD-x201 Web Site for Power Management Please follow the steps below to build a power monitor and management applications with ICP DAS PMD-x201 & Power Meter. Step 1: Open a browser, and type in the URL address of the PMD-x201 Open a browser and type in the URL address(The new IP setting) of the PMD-x201 in the address bar.
