PM-3133i User's Manual v1.00

Last Revised: Sep. 2019

Page: 1

 E-mail: service@icpdas.com

www.icpdas.com

Table of Contents

Need help?

Do you have a question about the PM-3133i and is the answer not in the manual?

Questions and answers

Summary of Contents for ICP DAS USA PM-3133i

Page 2: Table Of Contents
Chapter 1 Introduction ........4 Wiring ......15 1.1. PM-3133i introduction ..4 LED Indicator ....17 1.2. Caution ......5 Chapter 6 Modbus-RTU communication ..18 6.1.1 SW1－SW6 setting ..18 1.2.1. Danger ......5 1.3. Warning ......5 Modbus-RTU setting ..
Page 3 Manufacturer Specific Profile Area ..... 59 8.3.3 Application Object ... 63 Appendix 1: Questions & Answers ....64 PM-3133i User’s Manual v1.00 Last Revised: Sep. 2019 Page: 3  E-mail: service@icpdas.com Copyright © ICP DAS Co., Ltd. All Rights Reserved.

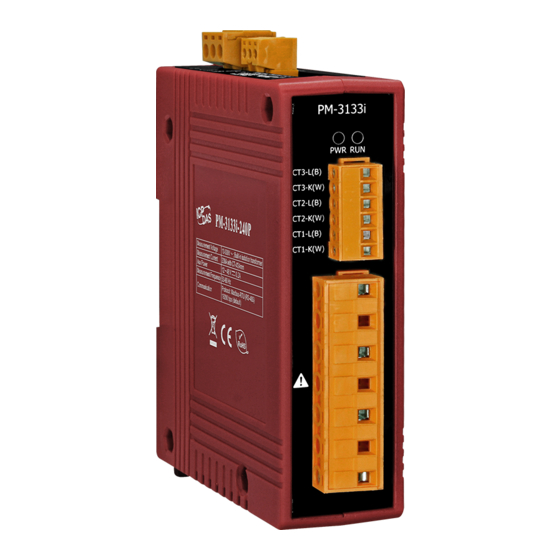

Page 4: Chapter 1 Introduction
With its high accuracy (<0.5%, PF=1 ), the PM-3133i series can be applied to both low voltage primary side and/or medium/high voltage secondary side and enables the users to obtain reliable and accurate energy consumption readings from the monitored equipments in real time under operation.
Page 5: Caution
If the problem concerns a particular reading, please have all meter readings available. When returning any merchandise to ICP DAS, a return SN. is required. PM-3133i User’s Manual v1.00 Last Revised: Sep. 2019 Page: 5  E-mail: service@icpdas.com Copyright ©...
Page 6: Limitation Of Warranty
This warranty does not apply to defects resulting from unauthorized modification, misuse, or use for reason other than electrical power monitoring. The supplied meter is not a user-serviceable product. PM-3133i User’s Manual v1.00 Last Revised: Sep. 2019 Page: 6  E-mail: service@icpdas.com Copyright ©...
Page 7: Chapter 2 Specifications
Bias RS-485 Master. Alternatively, add Resistor a tM-SG4 or SG-785) Protocol Modbus TCP Ethernet Yes, IEEE 802.3af PM-3133i User’s Manual v1.00 Last Revised: Sep. 2019 Page: 7  E-mail: service@icpdas.com Copyright © ICP DAS Co., Ltd. All Rights Reserved. www.icpdas.com...
Page 8 5.08mm (For Measurement Voltage, Aux Power and Alarm Output): Use Copper Conductors Only, wires range 12-24 AWG, torque value 7.0 lb-in. 7.62mm: Use Copper Conductors Only, wires range 12-24 AWG, torque value 4.5 lb-in. PM-3133i User’s Manual v1.00 Last Revised: Sep. 2019 Page: 8 ...
Page 9: Chapter 3 Installation
Please re-confirm the measure position.  PM-3133i series can be installed as rail mounting mode or embedded, no need to drill a hole or screw to fix it (rail mounting width can up to the length of 35 mm). ...
Page 10: Dimension And Latch
3.3 Dimension and Latch PM-3133i User’s Manual v1.00 Last Revised: Sep. 2019 Page: 10  E-mail: service@icpdas.com Copyright © ICP DAS Co., Ltd. All Rights Reserved. www.icpdas.com...
Page 11: Mounting And Dismounting
3.3.1 Mounting and Dismounting  Mounting Assembly: Place the PM-3133i on the DIN-Rail. Push the front of the PM-3133i toward the mounting surface until it audibly snaps into place. Dismantling: Pull out the latch and then remove the PM-3133i from the DIN-rail ...
Page 12: Ct's Installation Steps
 Make sure the power current  Installation steps finished. direction follow the “K→L” mark on the CT and then close the CT clip. PM-3133i User’s Manual v1.00 Last Revised: Sep. 2019 Page: 12  E-mail: service@icpdas.com Copyright © ICP DAS Co., Ltd. All Rights Reserved.
Page 13: Chapter 4 Wiring Diagrams
Note: it must be in the same direction. Connect the voltage input terminal N C B A. for PM-3133i, in the three phase order as follows on N C B A. Attention please!! For 3P3W-2CT, connect in N C A phase sequence, do not connect phase B (Check the diagram).
Page 14: Last Revised: Sep. 2019
The external CT’s are fragile, please handle with care. The current input of PM-3133i series is in mA range. Only the ex-factory attached CT’s can be used. The other CT’s, for example, from panel will damage the instrument due to its large current (around When more than one smart meter (PM-3133i series) are installed, please do not disconnect the CT with its original meter and mix use with each other.
Page 15: Wiring
4.2 Wiring  1P2W-1CT(PM-3133i)  1P3W-2CT(PM-3133i)  3P3W-2CT(PM-3133i) PM-3133i User’s Manual v1.00 Last Revised: Sep. 2019 Page: 15  E-mail: service@icpdas.com Copyright © ICP DAS Co., Ltd. All Rights Reserved. www.icpdas.com...
Page 16  3P3W-3CT(PM-3133i)  3P4W-3CT(PM-3133i) PM-3133i User’s Manual v1.00 Last Revised: Sep. 2019 Page: 16  E-mail: service@icpdas.com Copyright © ICP DAS Co., Ltd. All Rights Reserved. www.icpdas.com...
Page 17: Led Indicator
Chapter 5 LED Indicator 5.1 LED Indicator The PM-3133i has 2 LED to indicate the unit power status, RS-485 communication, and power data calculation.  RUN: Green, light up after RS-485 ready. LED will flash when the unit is processing RS-485 communication.
Page 18: Chapter 6 Modbus-Rtu Communication
Setting Modbus-RTU address for communication (1-64) Modbus Address SW 1 SW 2 SW 3 SW 4 SW 5 SW 6 PM-3133i User’s Manual v1.00 Last Revised: Sep. 2019 Page: 18  E-mail: service@icpdas.com Copyright © ICP DAS Co., Ltd. All Rights Reserved. www.icpdas.com...
Page 20 SG-785 should be added to provide the bias. All ICP DAS controllers and converters provide the bias.  SW9－SW10 setting PM-3133i：Select the different wiring mode (Please select the Software setting, if 1P2W-1CT or 1P3W-2CT is used) Wiring SW 9...
Page 21: Modbus-Rtu Setting
Integer：16 bits with sign, each with 1 register Unsigned Integer：16 bits without sign, each with 1 register Float：IEEE 754 Format ，each with 2 registers, Low Word is first priority while transmit PM-3133i User’s Manual v1.00 Last Revised: Sep. 2019 Page: 21  E-mail: service@icpdas.com Copyright ©...
Page 22 Data Low Word， Data High Word， Data High Word， High Byte Low Byte High Byte Low Byte PM-3133i User’s Manual v1.00 Last Revised: Sep. 2019 Page: 22  E-mail: service@icpdas.com Copyright © ICP DAS Co., Ltd. All Rights Reserved. www.icpdas.com...
Page 23: Modbus Register
 Modbus Module #3 － Input Register : System Information Modbus Register Data Default Parameter name Range Units Comment Modicom Type value Format PM-3133i User’s Manual v1.00 Last Revised: Sep. 2019 Page: 23  E-mail: service@icpdas.com Copyright © ICP DAS Co., Ltd. All Rights Reserved. www.icpdas.com...
Page 24 Model Type 30516 0x0203 Word UInt 0x0002 0x0002: 60Hz Firmware Version 30517 0x0204 Word 0x0100 Ver. 1.0 PM-3133i User’s Manual v1.00 Last Revised: Sep. 2019 Page: 24  E-mail: service@icpdas.com Copyright © ICP DAS Co., Ltd. All Rights Reserved. www.icpdas.com...
Page 25 Float 34411-34412 0x113A-0x113B DWord Float kW_tot 34413-34414 0x113C-0x113D kvar_tot DWord Float kvar 34415-34416 0x113E-0x113F kVA_tot DWord Float PM-3133i User’s Manual v1.00 Last Revised: Sep. 2019 Page: 25  E-mail: service@icpdas.com Copyright © ICP DAS Co., Ltd. All Rights Reserved. www.icpdas.com...
Page 26 DWord UInt32 0.1 Volt 34645- 34646 0x1224-0x1225 DWord UInt32 0.1A 34647- 34648 0x1226-0x1227 kW_c DWord Int32 0.1kW PM-3133i User’s Manual v1.00 Last Revised: Sep. 2019 Page: 26  E-mail: service@icpdas.com Copyright © ICP DAS Co., Ltd. All Rights Reserved. www.icpdas.com...
Page 27 0.1 Volt 34884- 34885 0x1313- 0x1314 DWord UInt32 0.1A 34886- 34887 0x1315- 0x1316 kW_b DWord Int32 0.1kW PM-3133i User’s Manual v1.00 Last Revised: Sep. 2019 Page: 27  E-mail: service@icpdas.com Copyright © ICP DAS Co., Ltd. All Rights Reserved. www.icpdas.com...
Page 28 0x1345 Freq_b Word 45~65 45~65 34935 0x1346 Freq_c Word 45~65 45~65 34936 0x1347 Freq_max Word 45~65 45~65 PM-3133i User’s Manual v1.00 Last Revised: Sep. 2019 Page: 28  E-mail: service@icpdas.com Copyright © ICP DAS Co., Ltd. All Rights Reserved. www.icpdas.com...
Page 29: Chapter 7 Modbus-Tcp Communication
Run position and repower on after settings changed. User also can recover settings to default value by Modbus command. SW1－SW2 setting PM-3133i：Select the different wiring mode (Please select the Software setting, if 1P2W-1CT or 1P3W-2CT is used) Wiring SW 1...
Page 30: Ethernet Configurations
In the Power Meter Utility, please select “Modbus TCP” in the Communication Interface. Click “Search” to enter the “Communication Interface Setting” window. Click ”Search” button to search the available power meter. PM-3133i User’s Manual v1.00 Last Revised: Sep. 2019 Page: 30 ...
Page 31 Select the power meter which you want to modify parameters from the meter list, then click ”Configuration” button to setup the meter parameters. After complete all setting, click “OK”, and return to the meter list windows. PM-3133i User’s Manual v1.00 Last Revised: Sep. 2019 Page: 31 ...
Page 32: Specifications
Net ID (Station number)： Assign the device (Modbus/TCP slave)。 7.2.1 Modbus Register Please refer the 6.2.2 Modbus Register。 PM-3133i User’s Manual v1.00 Last Revised: Sep. 2019 Page: 32  E-mail: service@icpdas.com Copyright © ICP DAS Co., Ltd. All Rights Reserved.
Page 33: Connecting The Power And
7.3 Connecting the Power and Host PC (without PoE) Power over Ethernet (PoE): The PM-3133i-xxxP-MTCP module can be powered by an IEEE802.3af compliant PoE switch. Both Ethernet and power can be carried by an Ethernet cable eliminating the need for additional wiring and power supply.
Page 34: Chapter 8 Canopen Communication
Setting CANopen Node ID for communication (1-64) Modbus Address SW 1 SW 2 SW 3 SW 4 SW 5 SW 6 PM-3133i User’s Manual v1.00 Last Revised: Sep. 2019 Page: 34  E-mail: service@icpdas.com Copyright © ICP DAS Co., Ltd. All Rights Reserved. www.icpdas.com...
Page 36: Canopen Protocol
 SW7－SW8 setting PM-3133i：For CANopen Baud Rate Setting Baud Rate SW 7 125 K bps(Default) 250 K bps 500 K bps 1M bps  SW9－SW10 setting PM-3133i-CPS：Select the different wiring mode (Please select the Software setting, if 1P2W-1CT or 1P3W-2CT is used)
Page 37: Sdo Introduction
: Only valid if e = 1 and s = 1, otherwise 0. If valid, it indicates the number of bytes in d that do not contain data. Bytes [8-n, 7] do not contain segment data. e: transfer type PM-3133i User’s Manual v1.00 Last Revised: Sep. 2019 Page: 37  E-mail: service@icpdas.com Copyright ©...
Page 38 After finishing the transmission of the initiate SDO upload protocol, the SDO client will start to upload the data. The upload SDO segment protocol will comply with the process shown below. PM-3133i User’s Manual v1.00 Last Revised: Sep. 2019 Page: 38 ...
Page 39: Download Sdo Protocol
4 bytes, the download action will finish in the download initialization protocol. Otherwise, the download segment protocol will be needed. These two protocols are shown below. PM-3133i User’s Manual v1.00 Last Revised: Sep. 2019 Page: 39 ...
Page 41 0.The toggle bit will be equal for the request and the response message. x: not used, always 0 reserved: reserved for further use , always 0 PM-3133i User’s Manual v1.00 Last Revised: Sep. 2019 Page: 41  E-mail: service@icpdas.com Copyright ©...
Page 42: Abort Sdo Transfer Protocol
0 m: multiplexer It represents index and sub-index of the SDO contains a 4-byte “Abort Code” about the reason for the abort. PM-3133i User’s Manual v1.00 Last Revised: Sep. 2019 Page: 42  E-mail: service@icpdas.com Copyright © ICP DAS Co., Ltd. All Rights Reserved.
Page 43 0800 0023h Object dictionary dynamic generation fails or no object dictionary is present (e.g. object dictionary is generated from file and PM-3133i User’s Manual v1.00 Last Revised: Sep. 2019 Page: 43  E-mail: service@icpdas.com Copyright © ICP DAS Co., Ltd. All Rights Reserved.
Page 45: Pdo Introduction
0111 Node-ID TxPDO4 1001 Node-ID RxPDO1 0100 Node-ID RxPDO2 0110 Node-ID RxPDO3 1000 Node-ID RxPDO4 1010 Node-ID PM-3133i User’s Manual v1.00 Last Revised: Sep. 2019 Page: 45  E-mail: service@icpdas.com Copyright © ICP DAS Co., Ltd. All Rights Reserved. www.icpdas.com...
Page 46: Transmission Type
SYNC object. For these two transmission types, the PDO is only transmitted on remote transmission requests.  For the transmission types 254 and 255, the event timer will be used in the TxPDO. PM-3133i User’s Manual v1.00 Last Revised: Sep. 2019 Page: 46  E-mail: service@icpdas.com Copyright ©...
Page 47: Pdo Communication Rule
8.2.2.3 PDO Communication Rule The PDO related objects are indicated from index 0x1400 to 0x1BFF. For the PM-3133i-CPS, RxPDO communication objects are not used. The ranges of the TxPDO communication objects and the mapping objects are from index 0x1800 to index 0x1813 and from index 0x1A00 to index 0x1A13 respectively.
Page 48 L: the data length about how many bytes the PDO message has PDO-msg: the real-time data or the data which can be mapped into the PDO mapping objects PM-3133i User’s Manual v1.00 Last Revised: Sep. 2019 Page: 48  E-mail: service@icpdas.com Copyright ©...
Page 49: Nmt Introduction
8.2.3 NMT Introduction 8.2.3.1 Module Control Protocol The NMT communication set can be applied for changing the NMT slave status. The following figure shows how to change the different NMT statuses for the PM-3133i-CPS. Start Remote Node Protocol cs: NMT command specified...
Page 50 Reset Node Protocol cs : NMT command specified 129: Reset_Node Node ID : the node ID of the NMT slave device PM-3133i User’s Manual v1.00 Last Revised: Sep. 2019 Page: 50  E-mail: service@icpdas.com Copyright © ICP DAS Co., Ltd. All Rights Reserved.
Page 51: Error Control Protocol
0x100D is the life time factor. The node life time is the guard time multiplied by the life time factor. The Node Guarding timer of the PM-3133i-CPS will start to count after receiving the first RTR message for the guarding identifier. The communication set of the Error Control protocol is displayed below.
Page 52: Pm-3133I-Cps
8.2.4 Special Functions for PM-3133i-CPS 8.2.4.1 Power Meter Data Table The PM-3133i-CPS Manufacturer in the Specific Profile Area defines some entries, which are used for the power meter data. The objects with index 0x3200~0x3208 will map to the PDOs as below table. The D0 to D7 represent the CANopen message from Data0 to Data7.
Page 53: Object Dictionary Of
8.3.1 Communication Profile Area The following tables are regarding each entry of the communication profile area is defined in PM-3133i-CPS. For the convenient purpose, all communication entries are divided into several tables. They are “General Communication Entries”, “TxPDO Communication Entries”, and “TxPDO Mapping Communication Entries”.
Page 54 UNSIGNED 8 for “receive PDO parameter” COB-ID used by PDO (Tx) UNSIGNED 32 480h+Node-ID transmission type UNSIGNED 8 PM-3133i User’s Manual v1.00 Last Revised: Sep. 2019 Page: 54  E-mail: service@icpdas.com Copyright © ICP DAS Co., Ltd. All Rights Reserved. www.icpdas.com...
Page 55 3200 0220h read kWh_b data INTEGER 32 3201 0220h 1A02h largest sub-index UNSIGNED 8 supported for “transmit PDO PM-3133i User’s Manual v1.00 Last Revised: Sep. 2019 Page: 55  E-mail: service@icpdas.com Copyright © ICP DAS Co., Ltd. All Rights Reserved. www.icpdas.com...
Page 56 3202 0420h read I_avg data INTEGER 32 3203 0420h 1A08h largest sub-index UNSIGNED 8 supported for “transmit PDO PM-3133i User’s Manual v1.00 Last Revised: Sep. 2019 Page: 56  E-mail: service@icpdas.com Copyright © ICP DAS Co., Ltd. All Rights Reserved. www.icpdas.com...
Page 57 UNSIGNED 8 read PF_b data INTEGER 32 3206 0220h read kVAh_b data INTEGER 32 3207 0220h PM-3133i User’s Manual v1.00 Last Revised: Sep. 2019 Page: 57  E-mail: service@icpdas.com Copyright © ICP DAS Co., Ltd. All Rights Reserved. www.icpdas.com...
Page 58 1A13h largest sub-index UNSIGNED 8 supported for “transmit PDO mapping” read kvarh_tot data INTEGER 32 3208 0420h PM-3133i User’s Manual v1.00 Last Revised: Sep. 2019 Page: 58  E-mail: service@icpdas.com Copyright © ICP DAS Co., Ltd. All Rights Reserved. www.icpdas.com...
Page 59: Profile Area
8.3.2 Manufacturer Specific Profile Area In the following table, there is information about some special functions for the PM-3133i-CPS. The index from 0x3200 to 0x3209 records the power meter measurement parameters. The number of these entries will be automatically updated when the PM-3133i-CPS boot up.
Page 60 INTEGER32 kvarh_tot INTEGER32 3209h largest sub-index supported for UNSIGNED 8 “Frequency” Freq_a INTEGER32 Freq _b INTEGER32 PM-3133i User’s Manual v1.00 Last Revised: Sep. 2019 Page: 60  E-mail: service@icpdas.com Copyright © ICP DAS Co., Ltd. All Rights Reserved. www.icpdas.com...
Page 61 UNSIGNED 8 object PT Ratio UNSIGNED 16 RW CT Ratio UNSIGNED 16 RW PM-3133i User’s Manual v1.00 Last Revised: Sep. 2019 Page: 61  E-mail: service@icpdas.com Copyright © ICP DAS Co., Ltd. All Rights Reserved. www.icpdas.com...
Page 62 UNSIGNED 16 RW 0x0055 Reset to Factory Settings UNSIGNED 16 RW 0x0055 Default Frequency UNSIGNED 16 RW 0x0055 PM-3133i User’s Manual v1.00 Last Revised: Sep. 2019 Page: 62  E-mail: service@icpdas.com Copyright © ICP DAS Co., Ltd. All Rights Reserved. www.icpdas.com...
Page 63: Application Object
The users can write the object the value 65766173h to object with index 1010h and subindex 1 to save the application setting, or write the value 64616F6Ch to object with index 1011h and subindex 1 and reboot the module to load the factory default. PM-3133i User’s Manual v1.00 Last Revised: Sep. 2019 Page: 63 ...
Page 64: Appendix 1: Questions & Answers
Q1. Can we use the other 5A CT’s (like 300/5) to directly connect to the input current terminals of PM-3133i series? No, because the input current is only mA size on PM-3133i series，definitely not to directly use other 5A CT’s to connect and apply （like100/5…），It could causes the fetal damages.
Page 65 (4) Confirm the RS-485 connection, make sure the D+/D- is right. (5) Confirm the RS-485 master have to provide the bias for PM-3133i series. Otherwise, the tM-SG4 or SG-785 should be added to provide the bias. All ICP DAS controllers and converters provide the bias.
Page 66 The CT of PM-3133i maximum range is 400A. If the target is more than 400A, we suggest the solution as follow. For example the target is to measure maximum 800A current. We can measure big CT output and set a CT Ratio.
Page 67 1.73. An example, on a 380 volt wye system, line to line voltage is 380 volts and line to ground voltage is 380/1.73 = 220 volts PM-3133i User’s Manual v1.00 Last Revised: Sep. 2019 Page: 67 ...
Page 68 The number of harmonics N that can be analyzed within the 2.8 kHz pass band is the whole number of 2800/f. The absolute maximum number of harmonics accepted by the Energy Metering IC is 63. N = [2800/f], N ≤ 63 PM-3133i User’s Manual v1.00 Last Revised: Sep. 2019 Page: 68  E-mail: service@icpdas.com Copyright ©...
Page 69 Q13. How to measure the Voltage large than 600V? For service voltage above 600 Vac, voltage transformers (PTs) are used to step down the voltage to a lower range that will work with a PM-3133i meter. Selecting a Transformer: Selecting the right voltage transformer is simple. Review the following considerations to determine the best fit for your application.
Page 70 The built-in cache function reduces the loading of serial communication on the slave port by removing duplicated queries when the two master devices are requesting the same information. PM-3133i User’s Manual v1.00 Last Revised: Sep. 2019 Page: 70 ...
Page 71 37/2.3 21.0 37/2.6 23.0 *Wire and current will have discrepancy because of the temperature, material and brand PM-3133i User’s Manual v1.00 Last Revised: Sep. 2019 Page: 71  E-mail: service@icpdas.com Copyright © ICP DAS Co., Ltd. All Rights Reserved. www.icpdas.com...
