7. Keep control knob pressed in for 30
seconds after lighting pilot. After 30
seconds, release control knob. If control
knob does not pop up when released,
contact a qualified service technician or
gas supplier for repairs.
Note: If pilot goes out, repeat steps 3
through 7. This heater has a safety inter-
lock system. Wait one (1) minute before
lighting pilot again.
Ignitor Button
IGNITOR
20,000 BTU/Hr Heaters
Control Knob
OFF
OFF
OFF
20,000 BTU/Hr
Heaters

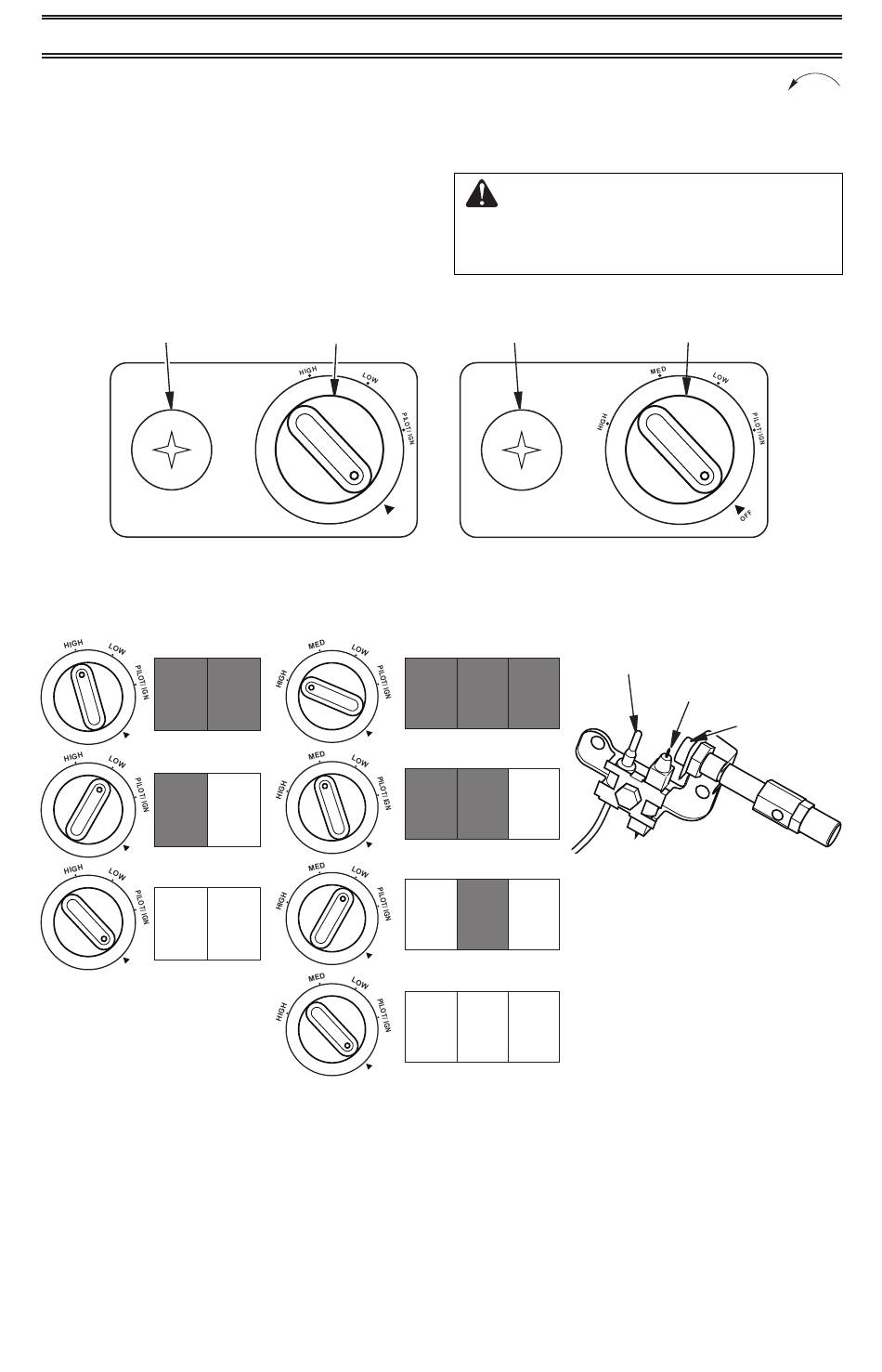

Figure 18 - Burner Patterns
18
OPERATION
Control Knob
OFF
Figure 17 - Control Knob in the OFF Position
Control Knob
OFF
OFF
OFF
OFF
30,000 BTU/Hr Heaters
www.usaprocom.com
8. Turn control knob counterclockwise
to desired heating level. The main burner
should light. Set control knob at LOW,
MED or HIGH locked positions.
CAUTION: Do not try to ad-
just heating levels by using the
equipment shutoff valve.
Ignitor Button
IGNITOR
30,000 BTU/Hr Heaters
Thermocouple
Figure 19 - Pilot
Control Knob
Ignitor Electrode
Pilot Burner
