LOCATING HEATER
This heater is designed to be mounted on a
wall. For convenience and efficiency, install
heater:
1. Where there is easy access for operation,
inspection, and service.
2. In the coldest part of room.
When installing the appliance directly on car-
peting, tile or other combustible material other
than wood flooring, the appliance shall be
installed on a metal or wood panel extended
the full width and depth of the appliance.
INSTALLING THERMOSTAT
SENSING BULB (OPTIONAL)
1. Pull out the sensing bulb from the two clips
located in the shipping position. There is
no need to take out the two bulb clips.
2. Take out the bulb clip from the hardware
package and insert it into the square hole.
Then insert the sensing bulb into the bulb
clip (see Figure 5).
Thermostat
Sensing
Bulb
Bulb Clip

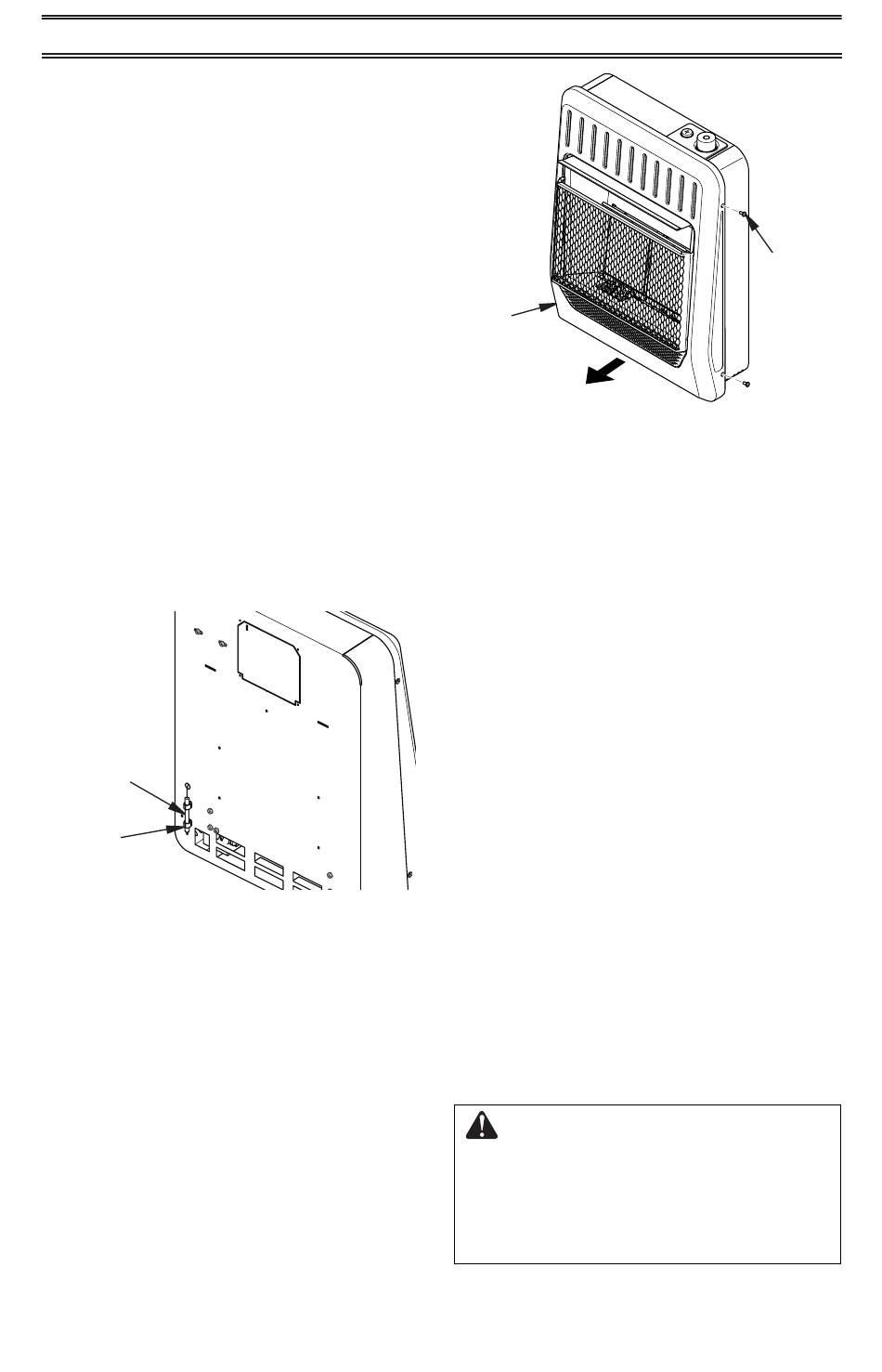

Figure 5 - Moving Thermostat Sensing
REMOVING FRONT PANEL
1. Remove 4 screws securing front panel.
2. Carefully slide front panel forward.
200317-01C
INSTALLATION
Bulb
www.usaprocom.com
Front
Panel
Figure 6 - Removing Front Panel
FASTENING HEATER TO WALL
Mounting Bracket
The mounting bracket is located on back panel
of heater. It has been taped there for shipping.
Remove mounting bracket from back panel.
Methods For Attaching Mounting
Bracket To Wall
Use only the last hole on each end of mount-
ing bracket to attach bracket to wall. Attach
mounting bracket to a wall only in one of two
ways:
1. Attaching to wall stud: This method pro-
vides the strongest hold. Insert mounting
screws through mounting bracket and into
wall studs.
2. Attaching to wall anchor: This method
allows you to attach mounting bracket to
hollow walls (wall areas between studs)
or to solid walls (concrete or masonry).
Decide which method better suits your needs.
Either method will provide a secure hold for
the mounting bracket.
Marking Screw Locations
1. Tape mounting bracket to wall where
heater will be located. Make sure mount-
ing bracket is level.
WARNING: Maintain mini-
mum clearances shown in Figure
4, page 10. If you can, provide
greater clearances from floor
and joining wall.
Screw
