Instruction Manual
Cheddar Easy
Deluxe Tumbler
Model No. 2704-00-000
10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA
© 2023 Gold Medal Products Co.
Part No. 110029

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cheddar Easy Deluxe Tumbler and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Gold Medal Cheddar Easy Deluxe Tumbler

  • Page 1 Instruction Manual Cheddar Easy Deluxe Tumbler Model No. 2704-00-000 10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA © 2023 Gold Medal Products Co. Part No. 110029...
  • Page 2: Safety Precautions

    Read and understand operator’s manual and all other safety instructions before using this equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862 022_060215...
  • Page 3 039_080614 Note: Improvements are always being made to Gold Medal’s equipment. This information may not be the latest available for your purposes. It is critical that you call Gold Medal’s Technical Service Department at 1-800-543-0862 for any questions about your machine operations, replacement parts, or any service questions.
  • Page 4: Installation Instructions

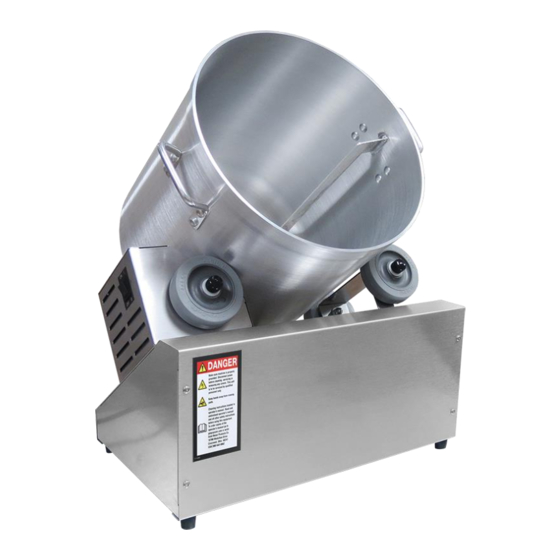

    To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862. Model Description 2704-00-000: Cheddar Easy Deluxe Tumbler, 4 gallon capacity. Setup This unit has been tested at the factory.
  • Page 5: Electrical Requirements

    We recommend this equipment be on a dedicated and protected circuit. Failure to wire properly will void the warranty and may result in damage to the machine. It is Gold Medal Products Co.’s recommendation that this machine be plugged directly into a wall outlet. The use of extension cords is not recommended due to safety concerns, and may cause sacrificed and/or reduced performance.
  • Page 6: Controls And Their Functions

    Cheddar Easy Deluxe Tumbler Model No. 2704-00-000 OPERATING INSTRUCTIONS Controls and Their Functions POWER SWITCH Two position, ON/OFF lighted rocker switch - supplies power to the tumbler drive motor. With this switch in the ON position, the blending pot will continually roll. Power Switch Operating Instructions...
  • Page 7: Care And Cleaning

    Cheddar Easy Deluxe Tumbler Model No. 2704-00-000 Care and Cleaning DANGER Machine must be properly grounded to prevent electrical shock to personnel. DO NOT immerse in water. DO NOT clean appliance with a water jet or steam cleaner. Always unplug the equipment before cleaning or servicing. 025_051321 Good sanitation practice demands that all food preparation equipment be cleaned regularly (only use non-toxic, food grade cleaners).
  • Page 8: Maintenance Instructions

    Cheddar Easy Deluxe Tumbler Model No. 2704-00-000 THE FOLLOWING SECTIONS ARE FOR QUALIFIED SERVICE PERSONNEL ONLY MAINTENANCE INSTRUCTIONS DANGER Machine must be properly grounded to prevent electrical shock to personnel. Failure to do so could result in serious injury, or death. Make sure all machine switches are in the OFF position before plugging the equipment into the receptacle.
  • Page 9: Ordering Spare Parts

    4. Please include your model number, serial number, and date of manufacture (located on the machine nameplate/data plate) with your order. 5. Address all parts orders to Parts Department, Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, Ohio 45241-4807 or place orders by phone or online:...
  • Page 10 20, 21, 22 25, 26 Bottom View *CAUTION: If supply cord is damaged, it must be replaced by Gold Medal Products Co., its service agent, or similarly qualified persons in order to avoid a hazard. General images shown for parts reference only.
  • Page 11 Cheddar Easy Deluxe Tumbler Model No. 2704-00-000 Cabinet View – Parts List Part Number Item Part Description 2704-00-000 ROLLER BRACKET 111239 1/4-20 X 5/8 P/H PHIL 12472 1/4 FLAT WASHER ST. STL. 42989 HEX NUT 1/4-20 ESLOK 42361 COVER PLATE 111241 SCREW #8-32X3/8 PAN HD PH 74141...
  • Page 12 Cheddar Easy Deluxe Tumbler Model No. 2704-00-000 Motor and Drive/Idler Wheels 2704-00-000 6, 7, 8 12, 12a General images shown for parts reference only. Part Number Item Part Description 2704-00-000 IDLER WHEEL 17506 111230 1/2"X1-1/2" SHOULDER BOLT 111210 3/8" FLAT WASHER, ZINC 111231 3/8-16 NYLON LOCKNUT 114032...
  • Page 13: Wiring Diagram

    Cheddar Easy Deluxe Tumbler Model No. 2704-00-000 Wiring Diagram Model No. 2704-00-000 gmpopcorn.com Page 13...
  • Page 14: Warranty

    No claim under this warranty shall be honored in the event that components in the unit at the time of the claim were not supplied or approved by Gold Medal Products Co. This warranty is effective only when electrical items have been properly attached to city utility lines only at proper voltages.
