Luxier

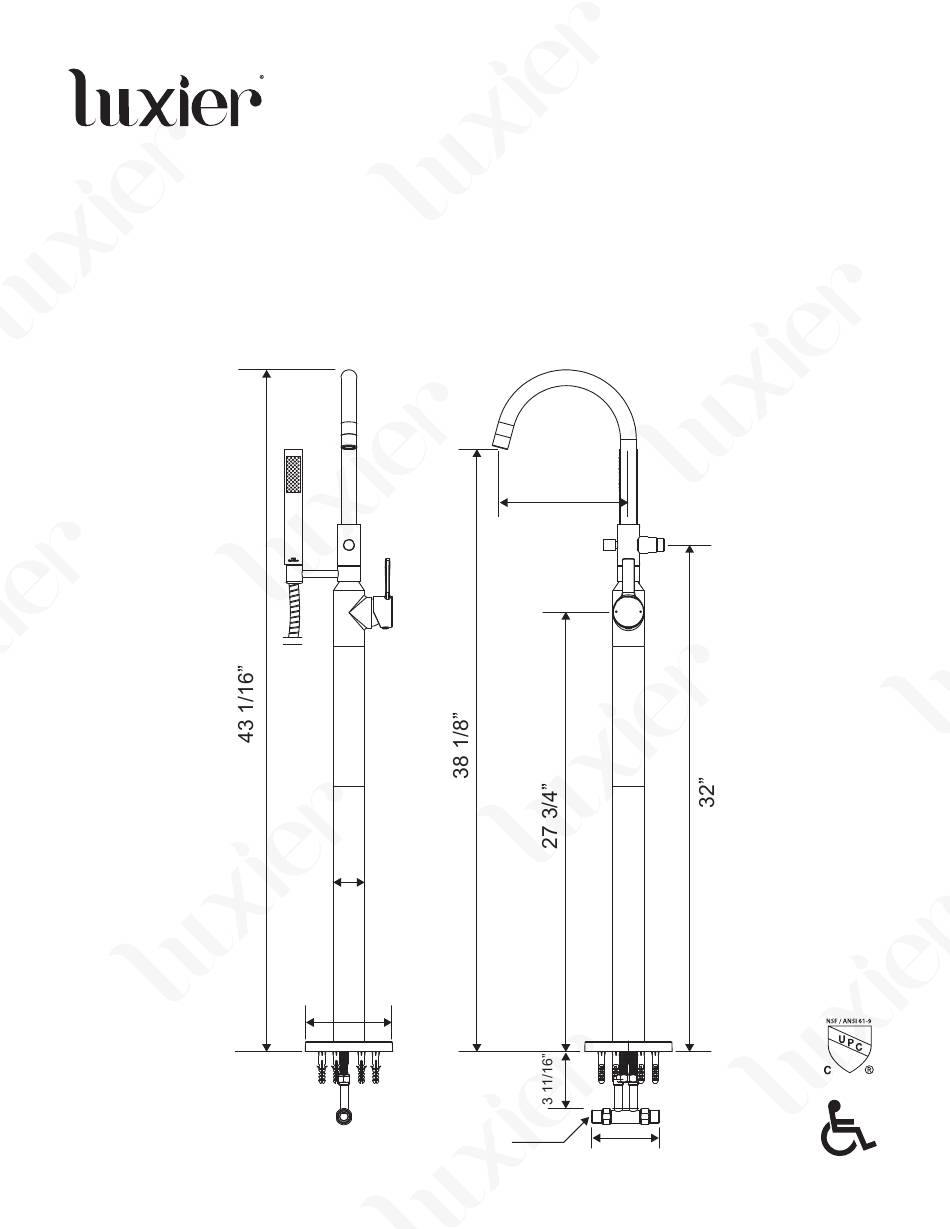

Freestanding Floor Mount Bathtub Filler
Model Number:
2"
5 1/2"
* All Measurements are Approximate *
Features:
FTF01-TB
- Brass and Zinc Alloy Construction
- Single Hole Installation
FTF01-TC
- Drip Free 40 mm Ceramic Cartridge
- Hand shower flow rate 1.8 gpm at 80 psi
- Tub spout flow rate 3.7 gpm at 20 psi
- Rough-in kit included
- Complies with:
8 1/8"
1/2 NPT
1
IAPMO / UPC / cUPC
ADA
4 5/16"
FTF01 Rev.1 042018
Advertisement
Related Manuals for Luxier FTF01-TB
Summary of Contents for Luxier FTF01-TB
- Page 1 Freestanding Floor Mount Bathtub Filler Model Number: Features: FTF01-TB - Brass and Zinc Alloy Construction - Single Hole Installation FTF01-TC - Drip Free 40 mm Ceramic Cartridge - Hand shower flow rate 1.8 gpm at 80 psi - Tub spout flow rate 3.7 gpm at 20 psi...
- Page 2 (2) issue a refund of the purchase price paid for the product (Valid within 30 days from the date of purchase); or (3) issue a credit to be applied against the purchase of a new Luxier product. Shipping/delivery charges may apply and are in Luxier USA’s sole discretion.
-
Page 3: Important Points
• When using spray cleaners, spray fi rst onto a soft cloth or sponge. Never spray directly onto the faucet as droplets can enter openings and gaps and cause damage. • After cleaning, rinse thoroughly with clean water to remove any cleaner residue. Luxier FTF01 Rev.1 042018... -
Page 4: Installation
Hot and Cold water supply hoses. Insert the water supply hoses through the hole and place Tub Filler Assembly on the floor and check for alignment. Top View FINISHED WALL LINE BASE BOARD 2" Hole COLD Level Luxier FTF01 Rev.1 042018... - Page 5 Connect the 2 water supply hoses to the T-Connector (1) and use an adjustable wrench to tighten connections. Do not over tighten the connections. water pipe pipe support water pipe Luxier FTF01 Rev.1 042018...
- Page 6 Remove the aerateor assembly (2) from the spout and turn on water for couple of minutes and check all connections for leaks. Move the Handle (4) throughout the temperature range to flush out any debris in both hot and cold water lines thoroughly. Luxier FTF01 Rev.1 042018...
- Page 7 07. Mounting Screws and Anchors 08. Escutcheon 09. Cartridge 10. Cartridge Locking Nut 11. Dome Cap 12. Cap, Setscrew and Hex Wrench 10 11 13. Handle 14. Diveter Cartridge 15. Hand Shower Connector Assembly 16. Setscrew Luxier FTF01 Rev.1 042018...
