2.97"
Luxier USA

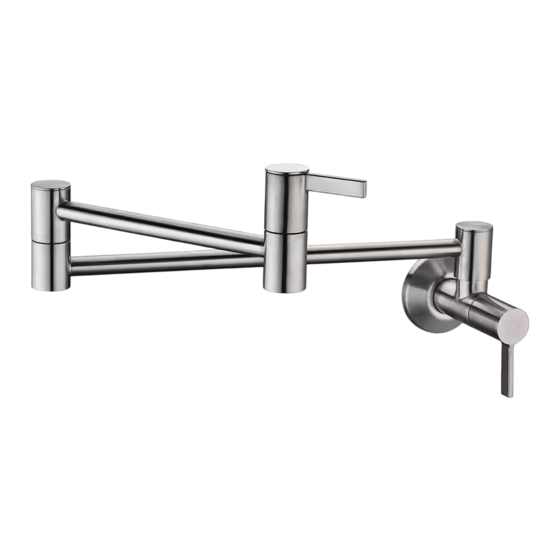

Wall Mounted Pot Filler
Model Number:
KTS17-TB
(Brushed Nickel)
KTS17-TC
(Chrome)
KTS17-TG
(Brushed Gold)
KTS17-TM
(Matte Black)
KTS17-TO
(Oil Rubbed Bronze)
13.95"
12.85"
7.97"
1.75"
Features:
- Drip Free 1/4 Turn Ceramic Cartridge
- Maximum Flow Rate 4.0 gpm at 60 psi
- 1/2" NPT Connection
- For Cold Water Only
- Complies with:
NSF 61-9
ASME A112.18.1
IAPMO / UPC / cUPC
CSA B125-1
CA AB-1953
2.54"
2.56"
2.26"
* Drawing not to scale. All measurements are approximate.
1
1.91"
4.24"
1/2" NPT
KTS17 SG Rev.3 08/2021
Advertisement
Related Manuals for Luxier KTS17-TB
Summary of Contents for Luxier KTS17-TB
- Page 1 Wall Mounted Pot Filler Model Number: Features: KTS17-TB - Drip Free 1/4 Turn Ceramic Cartridge (Brushed Nickel) - Maximum Flow Rate 4.0 gpm at 60 psi KTS17-TC (Chrome) - 1/2” NPT Connection KTS17-TG (Brushed Gold) - For Cold Water Only...
- Page 2 Should a malfunction occur within the warranty period, Luxier USA will, as its option, (1) repair or replace the defective part(s) or product at no charge; (2) issue a refund of the purchase price paid for the product (Valid within 30 days from the date of purchase);...
- Page 3 • When using spray cleaners, spray fi rst onto a soft cloth or sponge. Never spray directly onto the faucet as droplets can enter openings and gaps and cause damage. • After cleaning, rinse thoroughly with clean water to remove any cleaner residue. KTS17 SG Rev.3 08/2021 Luxier USA...
- Page 4 08. Lower Arm 09. Cap 10. Handle 11. Cartridge 12. Body 13. Flange 14. Mounting Base 15. Rubber Washer 16. Setscrew 17. Hex Wrench 18. Screws (x3) 19. Wall Anchors (x3) KTS17 SG Rev.3 08/2021 Luxier USA...
