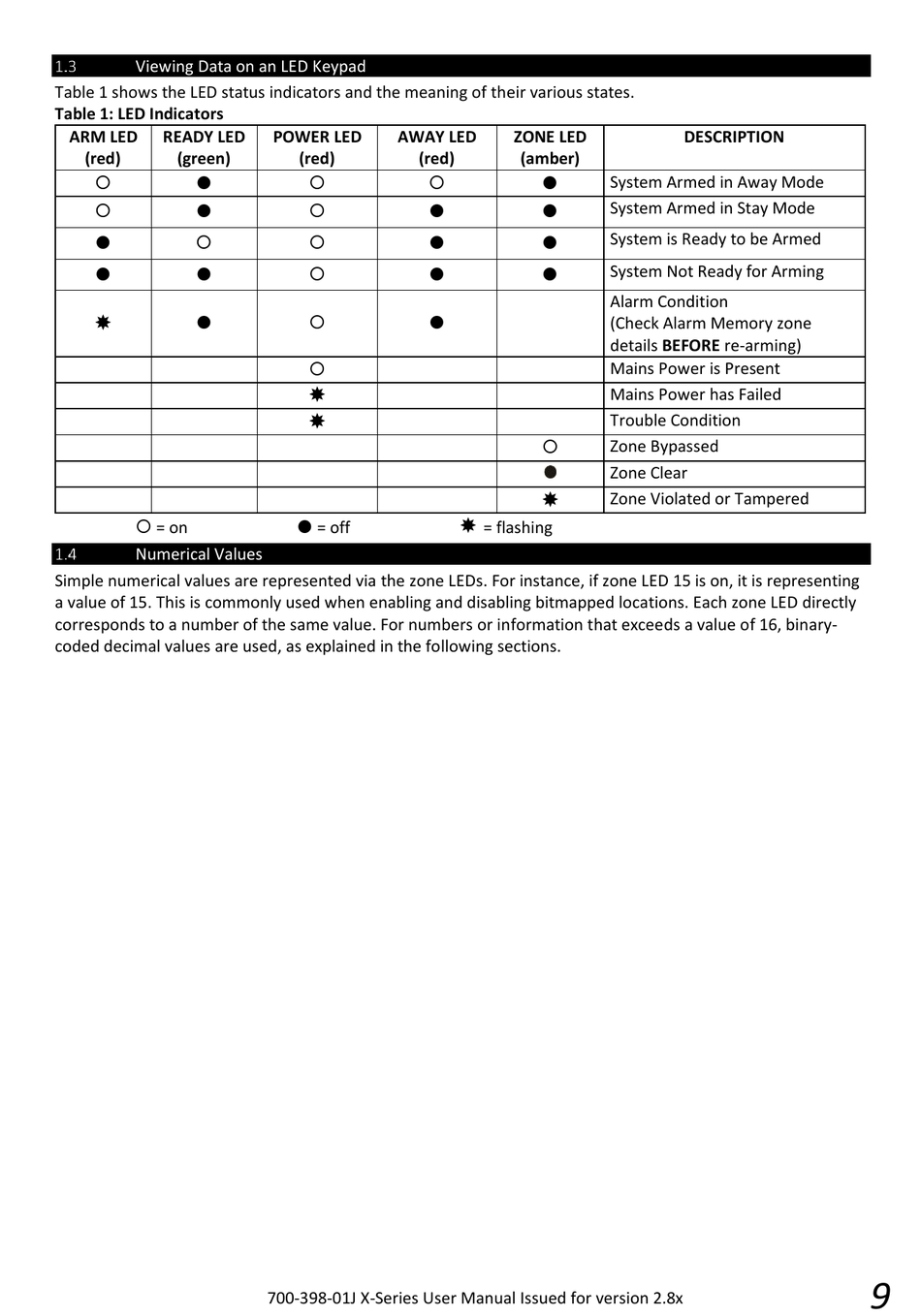

Viewing Data on an LED Keypad

Table 1 shows the LED status indicators and the meaning of their various states.
Table 1: LED Indicators
ARM LED
READY LED
(red)
(green)
 = on

Numerical Values

Simple numerical values are represented via the zone LEDs. For instance, if zone LED 15 is on, it is representing
a value of 15. This is commonly used when enabling and disabling bitmapped locations. Each zone LED directly
corresponds to a number of the same value. For numbers or information that exceeds a value of 16, binary-
coded decimal values are used, as explained in the following sections.
POWER LED
AWAY LED
(red)
(red)
 = off
700-398-01J X-Series User Manual Issued for version 2.8x
ZONE LED
(amber)
System Armed in Away Mode
System Armed in Stay Mode
System is Ready to be Armed
System Not Ready for Arming
Alarm Condition
(Check Alarm Memory zone
details BEFORE re-arming)
Mains Power is Present
Mains Power has Failed
Trouble Condition
Zone Bypassed
Zone Clear
Zone Violated or Tampered
= flashing
DESCRIPTION
9
