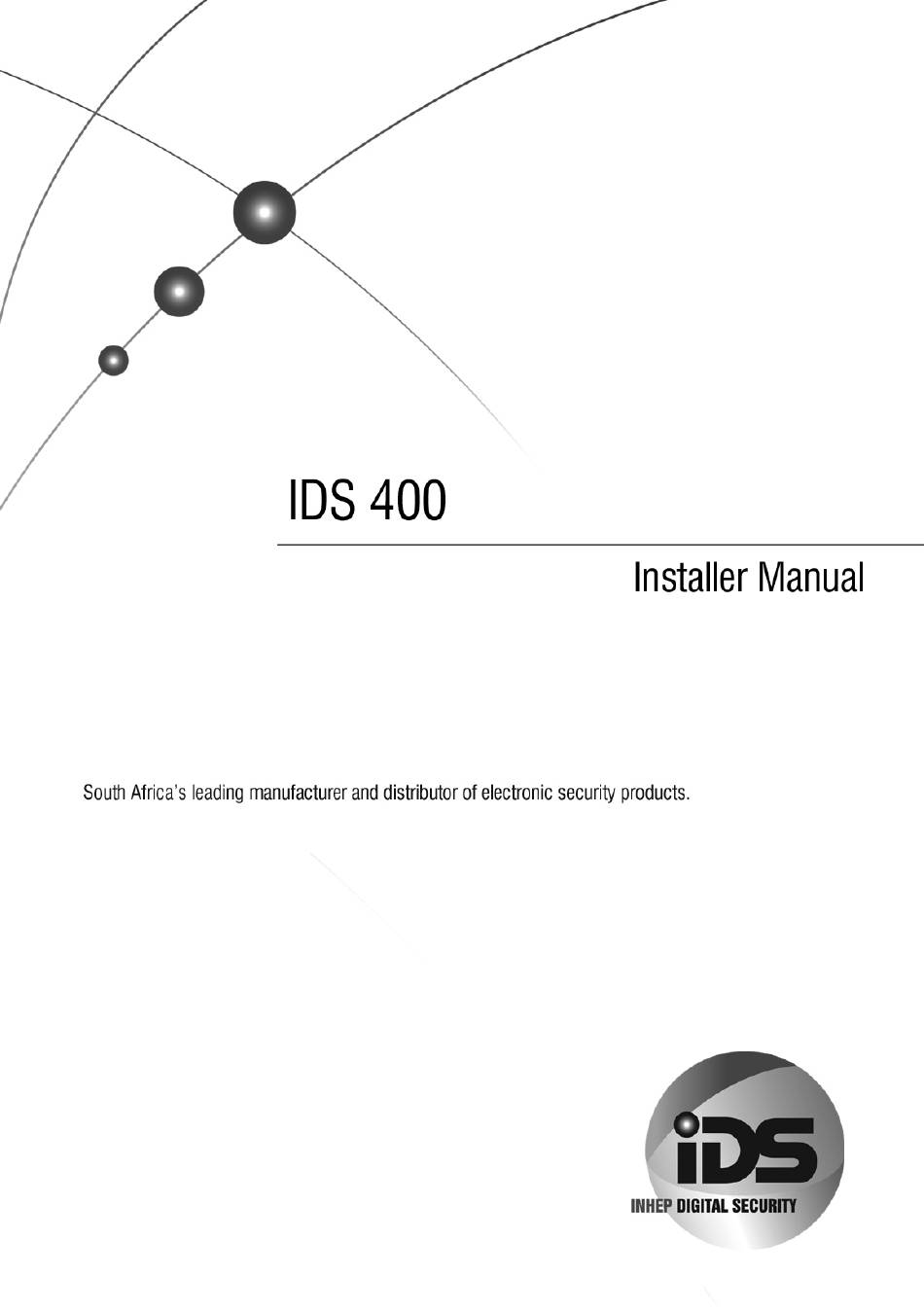

Inhep Digital Security IDS 400 Installer Manual

Alarm panel
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IDS 400 and is the answer not in the manual?

Questions and answers

Related Manuals for Inhep Digital Security IDS 400

Summary of Contents for Inhep Digital Security IDS 400

  • Page 3: Keypad Programming

    Installer Guide to Wiring and Keypad Programming MANUAL NO. 700-204-02A ISSUED NOV 2000 VERSION 1.01...
  • Page 4 IDS400 INSTALLER MANUAL Summary of Operation & [E] + + [E + + [E + IDS400 INSTALLER MANUAL NO. 700-204-02A ISSUED NOV 2000 VER 1.01...

  • Page 5: Table Of Contents

    IDS400 INSTALLER MANUAL Contents 1. Introduction to the IDS400 ..........6 1.1 Features ................6 2. Installation and Wiring ............. 7 3. Connecting the Telephone Communicator ....7 4. Programmable Outputs............ 8 5. The Key-Switch or Remote Control Unit ....... 9 6.

  • Page 6: Introduction To The Ids400

    IDS400 INSTALLER MANUAL 1. Introduction to the IDS400 The IDS400 is a versatile, state of the art, microprocessor based, four zone alarm panel. Most features are optional and may be programmed either directly through the keypad or via the telephone system, using the IDS download software and appropriate modem.

  • Page 7: Installation And Wiring

    IDS400 INSTALLER MANUAL 2. Installation and Wiring Please refer to Figure 1: Connection Diagram and familiarise yourself with the following sections. Figure 1: Connection Diagram Line Telkom Earth Line Phone P.I.R. Phone P.I.R. Radio Auxilliary Outputs Transmitter or Panic Communicator Button Zone 4 NC C +...

  • Page 8: Programmable Outputs

    IDS400 INSTALLER MANUAL protection connect a low impedance earth to the communicator. A poor earth will be ineffective and may result in damage to the communicator and alarm panel. Always connect the telephone communicator in the line seizure mode. Never in parallel with the telephone. If a radio transmitter or voice message communicator is being used for monitoring purposes the power for these devices should be taken from the “+TX”...

  • Page 9: The Key-Switch Or Remote Control Unit

    IDS400 INSTALLER MANUAL 5. The Key-Switch or Remote Control Unit A momentary key-switch or non-latching remote control receiver may be connected to any zone to allow remote arm/disarm capability and or remote panic. If a key-switch or remote control unit is used, a 3K3 resistor must be connected between the zone input and ground.

  • Page 10: Hardware Reset Switch And Timer Reset

    IDS400 INSTALLER MANUAL A door LED may be connected to the keypad. This LED will mimic the ARM LED on the keypad i.e. When the system is not armed the LED will be extinguished. If the system is armed the LED will be illuminated and will flash if an alarm condition was registered while the system was armed.

  • Page 11: Auto-Test Delay

    IDS400 INSTALLER MANUAL 7.1 Auto-test Delay An additional function of the hardware reset switch is the resetting of the auto-test delay clock. This delay is set for 24 hours and the first auto-test takes place 24 hours after application of power to the panel. Depressing the switch while the panel is powered will reset the auto- test delay clock to 23:59:50 i.e.

  • Page 12: Programming Instructions

    IDS400 INSTALLER MANUAL Programming Instructions 9.1 Introduction The panel may be programmed either using the keypad or using the up/download software. Programming the panel by means of the keypad is explained in the following sections of this manual. For information on programming the panel using the up/download software refer to the manual pertaining to the software.

  • Page 13: Programming The Panel

    IDS400 INSTALLER MANUAL Table 2: Binary Representation F F F F F F F F l l l l l l l l F F F F F F F F l l l l l l l l u l l 9.3 Programming the Panel For all programming procedures, the [E] (star) key functions as the enter key and the [#] (hash) key functions as a clear key to...

  • Page 14: Program Location Summary

    IDS400 INSTALLER MANUAL If the correct code has been entered the green READY indicator will begin flashing. Press the [E] key. Enter the [ ] of the program location that you LOCATION NUMBER wish to change. Press the [E] key. The zone LED ’s will now display the content of the selected program location in binary format (ref.

  • Page 15: Table 3: Programmable Zone Types

    IDS400 INSTALLER MANUAL ) t l Program locations 4 to 7 define the zone characteristics of each of the four zones. Each zone can be programmed to function in one of seven modes. Table 3 below (and continued overleaf) provides a description of the different zone types that may be programmed into these locations i.e.
  • Page 16 IDS400 INSTALLER MANUAL t a l o l l y r t t i x o l l t i x o l l o l l t i x r i f . t s t a l y t i t s i t a l l l i...
  • Page 17 IDS400 INSTALLER MANUAL t l u Quick Arm The quick arm option allows the user to arm the panel by holding down the [1] key for 1 second until the keypad beeps. Using the quick arm key initiates an arming cycle as if a valid user code has been entered. User code 1 will be reported if the quick arm key is used for arming.
  • Page 18 IDS400 INSTALLER MANUAL period, the alarm condition will immediately be registered. (See location 12) The Exit delay is the period of time allowed for exiting before the panel arms. The exit delay begins after entry of a valid user code. During this period is it possible to violate entry/exit, and follower zones without causing an alarm condition.
  • Page 19 IDS400 INSTALLER MANUAL ) t l Siren time out is the period of time for which the siren will sound after an alarm condition is registered. ) t l The Exit delay is the period of time allowed for exiting before the panel arms.
  • Page 20 IDS400 INSTALLER MANUAL The Entry delay is the period of time allowed to enter and disarm the panel before an alarm condition is registered; it begins after the violation of an entry/exit zone. During this period it is permissible to violate follower zones without causing an alarm condition, provided that an entry/exit zone was violated first.
  • Page 21 IDS400 INSTALLER MANUAL ) t l l l u l l u Table 4: Description of Locations l i a These locations control the function of the 2 programmable outputs. If a smoke detector, strobe light (or any other device requiring power) is connected to a programmable output, a relay board must be used to provide the high current.
  • Page 22 IDS400 INSTALLER MANUAL Set high- Latched Set low - Latched The locations 21 and 22 may only be programmed as a 0, 1 or 2 i.e. values 3 - 6 are not permissible. t l u Dialling Option: Value 0 Pulse dial primary and secondary phone numbers until there is a successful communication or for the number of attempts programmed into location 33.
  • Page 23 IDS400 INSTALLER MANUAL Determines the maximum number of attempts the panel will make to contact the base station. In the event the panel is unsuccessful at communicating with the first attempt, the telephone numbers as programmed into locations 40-55 and locations 56-71 will be dialled in the manner programmed into location 32.
  • Page 24 IDS400 INSTALLER MANUAL t l u ) y t ) y t c i t n i l e l i Transmit Handshake PPS Pulses per Second The value entered into location 35 selects the format to be used for communication to the base station receiver or other device.
  • Page 25 IDS400 INSTALLER MANUAL 3374. The account code is not “hexed” by the panel when Sescoa Superfast is used. EXAMPLE The desired account code is 14 (i.e. 0014) Enter [10] into location 36. Enter [10] into location 37. Enter [1] into location 38. Enter [4] into location 39.
  • Page 26 IDS400 INSTALLER MANUAL ) t i These locations contain the secondary telephone number that may be up to sixteen digits long. The same procedures apply as for the Primary Telephone Number. Communicator Reporting Codes (Locations 72-88) With the exception of Sescoa Superfast, all other communication formats are 4 x 2 reporting formats which means that a 4 digit account code will be reported with a 2 digit reporting code.
  • Page 27 IDS400 INSTALLER MANUAL NOTE To disable any of the reporting codes program a [0] into the locations for both digit 1 and digit 2. All reporting codes that require a “0” to be reported must be programmed as a [10] i.e. an “A” will be reported in the place of the “0”.
  • Page 28 IDS400 INSTALLER MANUAL The open code will be reported when the system is disarmed. NOTE The digit programmed into this location is the first digit of the reporting code. The second digit will automatically be added and will be the number which corresponds to the user code used to disarm the system (see Users Manual).
  • Page 29 IDS400 INSTALLER MANUAL l i a The AC fail code will only be reported if the AC power is lost for a period longer than 12 minutes. The AC restoral code will be reported once the AC power has been restored after an AC failure period of more than 12 minutes.
  • Page 30 IDS400 INSTALLER MANUAL it will prevent access to programming mode from the keypad. In this case program access can only be achieved by using the IDS download software. This can be used to disable the keypad programming mode. IDS400 INSTALLER MANUAL NO. 700-204-02A ISSUED NOV 2000 VER 1.01...
  • Page 31 IDS400 INSTALLER MANUAL Index AC Fail ..................21, 29 AC Restore ................21.29 Alarm Condition ............10, 16 - 18, 20 Audible Keypad Panic ..............18 Auto-test ................11, 21, 29 Delay ................11 Auxilliary Power Outputs ............6, 10 Base Station ................
  • Page 32 IDS400 INSTALLER MANUAL Fax Defeat Mode ..............6, 23, 24 Fire ................21, 22, 27 Hardware Reset Switch ............. 10, 11, 20 Installer Code ............10, 13, 20, 29, 30 Keypad ..........6, 9, 10, 12, 13, 24, 28, 30 Keyswitch ..............
  • Page 33 IDS400 INSTALLER MANUAL Relay Board ................8, 21 Siren ..............6, 10, 16, 18, 19 Time-out Period ............... 19 Stay Mode ................15, 17 Strobe .................. 21, 22 Telephone Numbers Primary ..............22, 25, 26 Secondary ..............22, 26 Timer Reset ................... 10 Trigger Outputs ................
  • Page 34 IDS400 INSTALLER MANUAL t l u t i x c t i n i l IDS400 INSTALLER MANUAL NO. 700-204-02A ISSUED NOV 2000 VER 1.01...
  • Page 35 IDS400 INSTALLER MANUAL IDS400 INSTALLER MANUAL NO. 700-204-02A ISSUED NOV 2000 VER 1.01...
  • Page 36 IDS400 INSTALLER MANUAL IDS400 INSTALLER MANUAL NO. 700-204-02A ISSUED NOV 2000 VER 1.01...
  • Page 37 IDS400 INSTALLER MANUAL e l l e l l e l l e l l IDS400 INSTALLER MANUAL NO. 700-204-02A ISSUED NOV 2000 VER 1.01...
