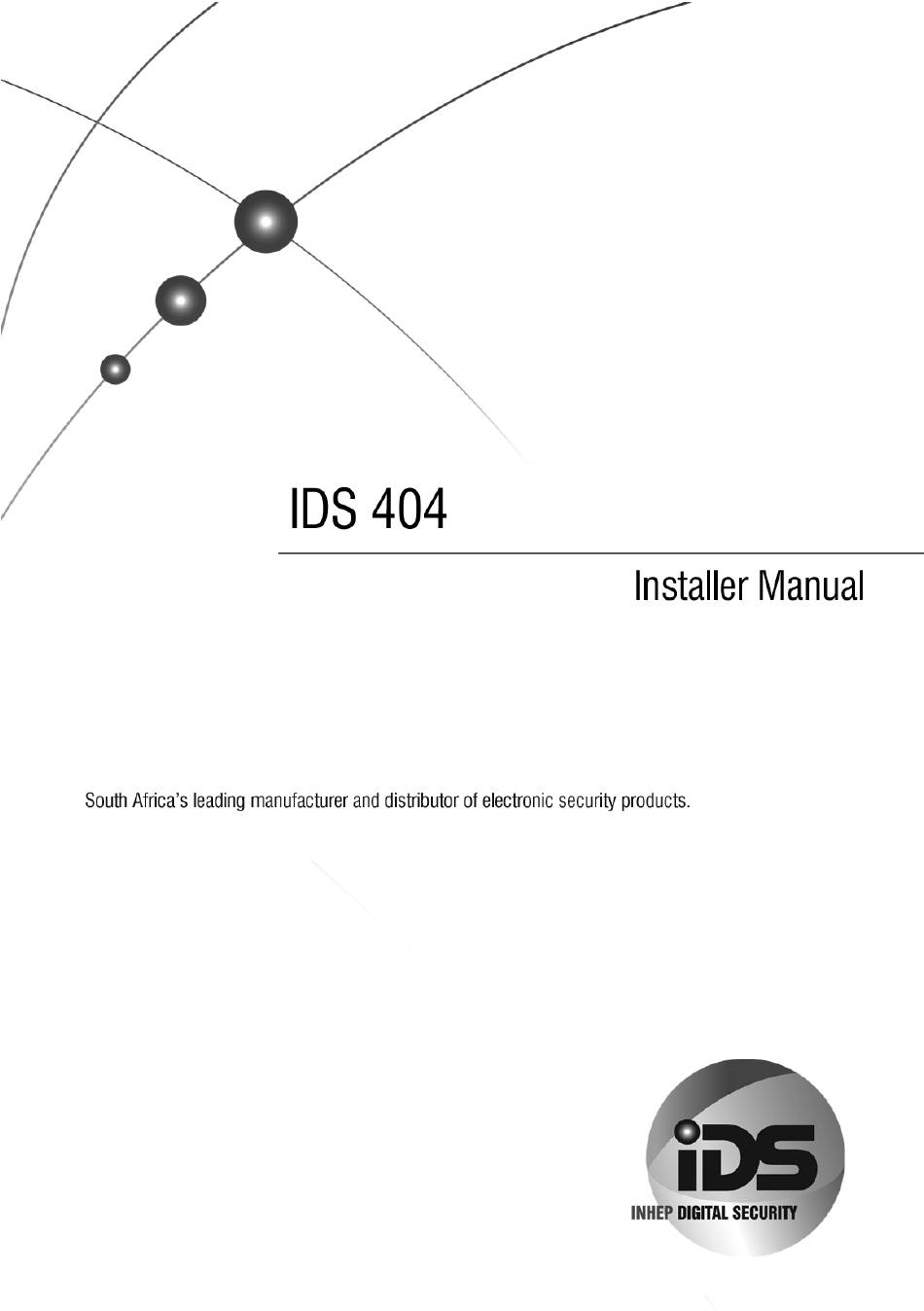

Inhep Digital Security IDS 404 Installer Manual

Alarm panel
Hide thumbs Also See for IDS 404:
Table of Contents

Advertisement

Quick Links

See also: User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IDS 404 and is the answer not in the manual?

Questions and answers

Related Manuals for Inhep Digital Security IDS 404

Summary of Contents for Inhep Digital Security IDS 404

  • Page 3 IDS404 INSTALLER MANUAL Summary of Operation & + [! ! ! ! ! ] e l i [! ! ! ! ! ] + + [! ! ! ! ! ] + [! ! ! ! ! ] + [! ! ! ! ! ] IDS404 INSTALLER MANUAL NO.

  • Page 4: Table Of Contents

    IDS404 INSTALLER MANUAL Contents Introduction to the IDS404 ..........5 1.1 Features ................5 Installation and Wiring ..........6 End-of-Line Resistors/Tamper per Zone & Zone Doubling ................. 7 Zone Expansion ............. 9 Box Tamper Zone ............9 Connecting the Telephone Communicator ....9 Telephone Line Integrity Monitoring ......
  • Page 5 IDS404 INSTALLER MANUAL Figures Figure 1: Connection Diagram ..........6 Figure 2: resistors used for Tamper per Zone and Zone Doubling ................. 8 Figure 3: Tamper per Zone Connection ......8 Figure 4: Connection for Zone Doubling ......8 Figure 5: Programmable Output Configuration ....9 Figure 6: Strobe Output Sequence ........

  • Page 6: Introduction To The Ids404

    IDS404 INSTALLER MANUAL 1. Introduction to the IDS404 The IDS404 is a versatile, state of the art, microprocessor based, four zone alarm panel. Most features are optional and may be programmed either directly through the keypad or via the telephone system, using the IDS download software and appropriate modem.

  • Page 7: Installation And Wiring

    IDS404 INSTALLER MANUAL 2. Installation and Wiring Please refer to Figure 1: Connection Diagram and familiarise yourself with the following sections. Figure 1: Connection Diagram - without tamper per zone IDS404 INSTALLER MANUAL NO. 700-277-02A ISSUED SEPT 2004 VER 1.02...

  • Page 8: End-Of-Line Resistors/Tamper Per Zone & Zone Doubling

    IDS404 INSTALLER MANUAL 3. End-of-Line Resistors/ Tamper per Zone & Zone Doubling All zones are end-of-line supervised. Any unused zones must also be terminated with the appropriate resistor and a [0] programmed into the relevant locations. The end-of-line resistor should be placed inside or as close to the sensor as possible.

  • Page 9: Figure 2: Resistors Used For Tamper Per Zone And Zone Doubling

    IDS404 INSTALLER MANUAL Figure 2: Resistors used for Tamper per Zone and Zone doubling Yellow Red Brown Orange Purple NOTE: The 4K7 and 12K zone doubling resistors are not included with the panel but may be obtained from your local IDS distributor. Figure 3: Tamper per Zone Connection Figure 4: Connection for Zone Doubling IDS404 INSTALLER MANUAL NO.

  • Page 10: Zone Expansion

    IDS404 INSTALLER MANUAL The operation of the tamper is as follows: ! If the panel is not armed and a tamper condition occurs, the siren will not sound but a tamper condition will be reported. ! If the panel is armed and tamper condition occurs the alarm will register a zone violation and a tamper condition will be reported.

  • Page 11: Telephone Line Integrity Monitoring

    IDS404 INSTALLER MANUAL protection connect a low impedance earth to the communicator. A poor earth will be ineffective and may result in damage to the communicator and alarm panel. Always connect the telephone communicator in the line seizure mode. Never in parallel with the telephone i.e. connect the telephone receiver to the communicator terminals marked “phone”...

  • Page 12: The Key-Switch Or Remote Control Unit

    IDS404 INSTALLER MANUAL Figure 5: Programmable Output Configuration 9. The Key-Switch or Remote Control Unit A momentary key-switch or non-latching remote control receiver may be connected to any zone to allow remote arm/disarm capability and/ or remote panic. If a key-switch or remote control unit is used, a 3K3 resistor must be connected between the zone input and ground.
  • Page 13 IDS404 INSTALLER MANUAL Use a 12V sealed lead acid battery, min. 3ah. The back up period after mains failure will depend on the number of keypads, sensors and peripheral devices attached to the system. The current drawn by the panel and keypad (no indicators illuminated), excluding sensors, is 200mA.

  • Page 14: Hardware Reset Switch

    IDS404 INSTALLER MANUAL 11. Hardware Reset Switch In the event that the installer code is lost, it is possible to reset the panel to its factory default values using the hardware reset switch labelled SW1 on the main PC board. Provided that the reset switch has not been disabled (see location 21) the panel may be defaulted by removing both battery and AC power from the panel, and then reapplying the power ( AC /battery) while depressing the switch.

  • Page 15: Dialler Progress Mode

    IDS404 INSTALLER MANUAL 13. Dialler Progress Mode When the panel sends data to a central station, the keypad zone ’s may be used to display the “progress” of such communication. To view the communication status proceed as follows: Hold down the [0] key until the keypad buzzer sounds twice. Press the [9] key.

  • Page 16: Programming Instructions

    IDS404 INSTALLER MANUAL 15. Programming Instructions 15.1 Introduction The panel may be programmed either using the keypad or using the up/download software. Programming the panel by means of the keypad is explained in the following sections of this manual. For information on programming the panel using the up/download software refer to the manual pertaining to the software.

  • Page 17: Programming The Panel

    IDS404 INSTALLER MANUAL Table 3: Binary Representation " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " " u l l 15.3 Programming the Panel For all programming procedures, the [! ! ! ! ! ] (star) key functions as...

  • Page 18: Program Location Summary

    IDS404 INSTALLER MANUAL location value, press the [#] key. The READY indicator will continue flashing and the AWAY indicator will extinguish. If the data value has been changed, the buzzer will give a long beep indicating that a valid entry has been stored. 10.

  • Page 19: Table 4: Location/Zone Defaults

    IDS404 INSTALLER MANUAL Program locations 1 to 4 define the zone characteristics of each of the four zones. If zone doubling has been enabled, program locations 5 to 8 to define the zone characteristics of zones 1a - 4a. Each zone can be programmed to function in one of eleven modes.

  • Page 20: Table 5: Programmable Zone Types

    IDS404 INSTALLER MANUAL Table 5: Programmable Zone Types t a l t a l t i x t i x t a l t i x t i n t i x u l i t i x t i x l l i f I .
  • Page 21 IDS404 INSTALLER MANUAL t a l e l i t s i e l i t a l e l i e l i / y r t i x / y r t i x t a l t a l t n i y l t .
  • Page 22 IDS404 INSTALLER MANUAL t l u If the Entry/ Exit delay is enabled, the panel can be programmed to allow arming with violated Follower and/ or Entry/ Exit zones. NOTE: For all values programmed into location 9 the panel will only arm if the indicator is illuminated.
  • Page 23 IDS404 INSTALLER MANUAL . n i . n i . n i . n i . n i . n i ) t l . n i . n i . n i . n i . n i The secondary entry delay applies to the secondary entry/exit zone. If a primary entry zone is violated, the primary entry delay is activated.
  • Page 24 IDS404 INSTALLER MANUAL If a value of [3] has been programmed into this location, please note: Double end-of-line resistors must be used on all panel zones in order to detect a tamper. t l u The quick arm option allows the user to arm the panel by holding down the [1] key until the keypad beeps.
  • Page 25 IDS404 INSTALLER MANUAL automatically. If a zone which has been automatically bypassed clears while the panel is armed, the zone will become active i.e. the window is pushed closed. Opening the window again will cause an alarm condition to be registered. If Bypass block has been enabled (by programming a value of [8] or higher into this location) the panel will not allow any zones to be bypassed.
  • Page 26 IDS404 INSTALLER MANUAL e l i t l u e l i If a zone is programmed as a silent instant zone, an alarm condition as a result of a violation of this zone would be silent regardless of the value programmed into this location.
  • Page 27 IDS404 INSTALLER MANUAL . n i . n i . n i . n i . n i . n i . n i . n i ) t l . n i . n i . n i The siren time out period is the period of time for which the siren will sound after an alarm condition is registered.
  • Page 28 IDS404 INSTALLER MANUAL & . n i . n i . n i ) t l . n i . n i . n i . n i . n i . n i . n i . n i .
  • Page 29 IDS404 INSTALLER MANUAL This is the period of time allowed to enter and disarm the panel before an alarm condition is registered. The entry delay begins after the violation of a primary entry/exit zone. During this period it is permissible to violate follower zones without causing an alarm condition provided that an entry/exit zone was violated first.

  • Page 30: Table 6: Output Options

    IDS404 INSTALLER MANUAL Table 6: Output Options The strobe and fire-detect outputs may only be programmed with [0] to [4] i.e. a pulsed output. The second phone number dialled output can only be programmed with values [1] - [4] ([0] will disable the output). Table 7: Location default values y t i l i a...
  • Page 31 IDS404 INSTALLER MANUAL . t t l i a Please note the following information on these locations: This output will be triggered once the battery voltage has been restored i.e. the voltage has risen to above 11.9V. This output will be triggered if telephone line monitoring is enabled, and the line voltage drops below 9V for more than 30-60 seconds.

  • Page 32: Figure 6: Strobe Output Sequence

    IDS404 INSTALLER MANUAL The box tamper output will be triggered if the panel box is opened. Programming Example Program output No. 2 to report open and close, with close HIGH and open LOW : It will be noted from Table 7 that output No. 2 is already assigned as the alarm output.

  • Page 33: Figure 7: Fire Detect Output Sequence

    IDS404 INSTALLER MANUAL Figure 7: Fire detect output sequence NOTE Since multiple conditions may be programmed to a single output. It is essential to ensure that no unwanted conditions are assigned to the same output. Provision is made for the panel to dial different phone numbers (locations 68-83 for primary number and 84-99 for the secondary number).
  • Page 34 IDS404 INSTALLER MANUAL t l u l a i n i l l i t l a i n i l l a i n i l e l l o l l i g i . s t l a i n i l l a i n i l...
  • Page 35 IDS404 INSTALLER MANUAL Locations 68 - 83 Primary Phone Number Locations 84 - 99 Secondary Phone Number If dual reporting is selected, program the following locations: Locations 60 - 63 Primary Account Code Location 64 Primary Communicator Format Locations 68 - 83 Primary Phone Number Locations 84 - 99 Secondary Phone Number...
  • Page 36 IDS404 INSTALLER MANUAL t l u ) y t ) y t c i t n i l e l i = Transmit = Handshake PPS = Pulses per Second The value entered into location 64 selects the format to be used for communication to the base station receiver or other device.

  • Page 37: Table 8: Standard Contact Id Reporting Codes

    IDS404 INSTALLER MANUAL If dual reporting is enabled and the Contact ID reporting format is required, both the primary and secondary communicator formats need to be programmed as Contact ID. It is not possible to use Contact ID in conjunction with a second format e.g.. Domestic Reporting, as the second format will transmit all codes as FF or F.

  • Page 38: Table 9: Alarm Reporting Codes

    IDS404 INSTALLER MANUAL Table 9: Alarm reporting codes / y r t i x EXAMPLE Assuming for a given installation it is required to differentiate between entry/exit, interior and general burglary zones, and assuming that zone 1 is a front door (entry/exit zone), zone 2 is an interior PIR (interior zone) and zone 3 is a general burglary zone.
  • Page 39 IDS404 INSTALLER MANUAL To dial a “#” program a [12] into the location. To create a 12 second pause in the number program a [14] into the location. To create a 4 second pause in the number program a [15] into the location.
  • Page 40 IDS404 INSTALLER MANUAL These locations contain the secondary telephone number that may be up to sixteen digits long. The same procedures apply as for the Primary Telephone Number. Communicator Reporting Codes (Locations 100-153) With the exception of Contact ID, all other communications formats are 4 x 2 reporting formats i.e.
  • Page 41 IDS404 INSTALLER MANUAL The keypad tamper code will be reported if multiple attempts are made to disarm the panel using the wrong user code. The code will be reported after 16 incorrect keystrokes i.e. four incorrect user codes. Zone reporting codes will be reported if a violation of a zone causes an alarm condition.
  • Page 42 IDS404 INSTALLER MANUAL The siren tamper condition will be reported if the siren wire is open circuit or the fuse has blown. & The close code will be reported when the system is armed in the AWAY mode indicated by illuminated ARMED and AWAY LED ’s on the keypad.
  • Page 43 IDS404 INSTALLER MANUAL indicating an open by user 1. NOTE If the system is disarmed by means of a key or remote using an arm/ disarm zone the system will report open by user 13. & The stay code will be reported when the system is armed in the stay mode indicated by an illuminated ARMED but extinguished AWAY on the keypad.
  • Page 44 IDS404 INSTALLER MANUAL The zone shut down code will be reported if the system is armed and a zone is automatically bypassed as a result of multiple violations of that zone while the panel is armed. The number of permissible violations is dependent on the value programmed into location 160.
  • Page 45 IDS404 INSTALLER MANUAL The low battery condition will be reported if the battery voltage drops below 10 volts. If the battery fuse blows then the battery will discharge and a low battery condition will be reported, even if the AC power is present.
  • Page 46 IDS404 INSTALLER MANUAL Disable swinger shutdown by entering [0] in this location. t l u The zone loop response is the period of time for which the zone must be violated before a violation is registered. A value of [0] provides a loop response time of 100ms.
  • Page 47 IDS404 INSTALLER MANUAL displayed as trouble conditions. Should the display be disabled no trouble condition will be shown i.e. the power LED will not flash and no trouble condition shown when entering trouble viewing mode. However, reporting codes, if programmed, will be reported to the base station. t l u This location determines whether box tamper, communication failure or telephone line monitoring are displayed as trouble conditions.
  • Page 48 IDS404 INSTALLER MANUAL ) t l This location programs the period of time that the keypad’s back- lighting will remain illuminated without activity. [0] disables this function resulting in constantly illuminated keys. The location can have a value from [0] to [15]. t l u The time period between auto-test reports is programmed using this location.
  • Page 49 IDS404 INSTALLER MANUAL seconds. Note that the default value of 15 (maximum permissible value) enables the fax defeat mode. If fax defeat is enabled and the phone rings 15 times the panel will answer the call, if however the phone rings and the call is terminated within 3 rings the panel will, within a 60 second window, answer a second call on the first ring.
  • Page 50 IDS404 INSTALLER MANUAL t l u This location allows the permanent enabling/ disabling of telephone line, siren tamper and box tamper monitoring. Determines the maximum number of dial attempts the panel will make to contact the base station. NOTE Entering [0] into this location will disable the dialler. This account code is used if the panel is communicating to two base stations and will be transmitted to the secondary phone number.
  • Page 51 IDS404 INSTALLER MANUAL Set System Time, Auto-Test Time, Automatic Arm Time All time values must be entered as a 4 digit value in hours and minutes in a 24 hour format i.e. 1:00pm is entered as 1300. To view and change values in these locations: Enter programming mode by entering a valid [INSTALLER followed by ["...

  • Page 52: Trouble Conditions Summary

    IDS404 INSTALLER MANUAL 16. Trouble Condition Summary The table below indicates the trouble conditions. u l i t i n n i l u l i IDS404 INSTALLER MANUAL NO. 700-277-02A ISSUED SEPT 2004 VER 1.02...
  • Page 53 IDS404 INSTALLER MANUAL Index AC Fail ............13, 27, 29, 36, 40, 46, 51 AC Restore ..............27, 29, 36, 40 Alarm Memory .................. 2 Arm/ Disarm Zone - see “Zone” Audible Instant Zone - see “Zone” Audible Priority Zone - see “Zone” Auto-arm ..................
  • Page 54 IDS404 INSTALLER MANUAL Dialling Pulse ................32, 33 Tone .................. 32, 33 Dialling Options ................32 Domestic Reporting ............. 35, 36, 37 Download ........... 5, 13, 14, 15, 29, 36, 43, 44, 47 Download Code ................14 Download Complete Reporting code ..........43 Dual Reporting ............
  • Page 55 IDS404 INSTALLER MANUAL Keypad Sleep Delay ................ 47 Keyswitch ..........11, 19, 23, 25, 36, 41, 42, 43 Lightning ..................5, 9 Line Seizure Mode ................10 Loop Response Time ..............5, 44 Master User Code ..............17, 41 Medical Alarm ..............2, 29, 36, 42 Panic ............
  • Page 56 IDS404 INSTALLER MANUAL Tamper ............30, 41, 45, 49, 51 Time-out Period ............... 26 Stay Arm ................... 24, 36 Stay Mode ............... 19, 24, 25, 41, 42 Stay Profile ..................2 Strobe ................. 28, 29, 31 System Time ................... 50 Swinger Shutdown ................
  • Page 57 IDS404 INSTALLER MANUAL t l u / y r t i x o l l / y r t i x e l i e l i e l i e l i t i x c t i y t i e t t l i a &...
  • Page 58 IDS404 INSTALLER MANUAL e l i y t i l i a l i a l a i n i l IDS404 INSTALLER MANUAL NO. 700-277-02A ISSUED SEPT 2004 VER 1.02...
  • Page 59 IDS404 INSTALLER MANUAL IDS404 INSTALLER MANUAL NO. 700-277-02A ISSUED SEPT 2004 VER 1.02...
  • Page 60 IDS404 INSTALLER MANUAL i t r i t r i t r i t r i t r i t r i t r i t r i t r i t r i t r i t r i t r i t r i t r i t r...
  • Page 61 IDS404 INSTALLER MANUAL & i t r i t r i t r i t r i t r i t r i t r i t r i t r i t r i t r i t r i t r i t r l i a...
  • Page 62 IDS404 INSTALLER MANUAL o i t o i t o i t : e l o t i o i t o t i l a i e t t c i t IDS404 INSTALLER MANUAL NO. 700-277-02A ISSUED SEPT 2004 VER 1.02...
