B i-D ire c tiona l Re mote Tr ans m itte r
Each remote transmitter is learnt to a user code and will inherit that codes properties, i.e. arm/disarm, arm
only, etc.
Each remote transmitter has five buttons to control the alarm panel or can query alarm status. The default
button assignments are indicated in Figure 4: Remote transmitter default button assignment below.

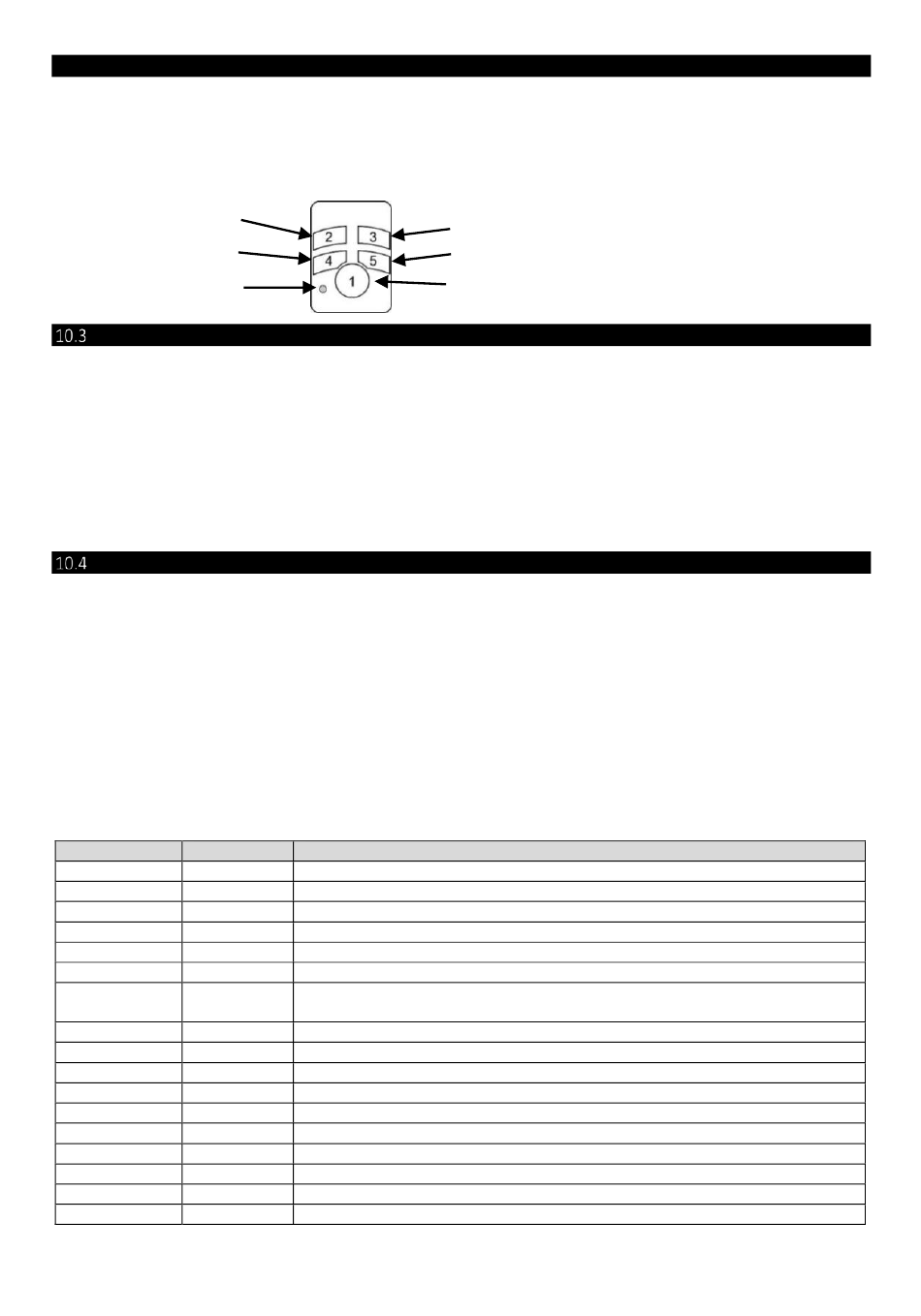

Figure 5: Remote transmitter default button assignment
Stay Arm
Unassigned
Feedback
LED
Adding the Remote Transmitter to a User code – Option 16
To add a bi-directional Xwave2 remote transmitter to a user code.
1. Enter the Master User Menu: Hold down [*] for 3 seconds.
2. Enter the Master code: [1][2][3][4] [*].
3. Scroll using the [Panic >>] key to menu 16 or enter [1][6][*].
4. Enter the Hub that you are teaching the remote too: [1][*].
5. Enter the user code that will be paired with the remote: [1][2][3][4] [*].
6. Hold down any remote button until the remote's ID is displayed.
7. Press [*] to confirm.
8. Enter the next user code if more than one remote is to be learnt or [#] to exit.

Allocating Remote Transmitter Button Functions - Option 17

To change the button functions:
1. Enter the Master User Menu: Hold down [*] for 3 seconds.
2. Enter the Master code: [1][2][3][4] [*].
3. Scroll using the [Panic >>] key to menu 17 or enter [1][7][*].
4. Enter the Hub that the remote belongs too: [1][*].
5. Enter the user code that was paired with the remote: [1][2][3][4] [*].
6. Scroll through the buttons using the [Panic >>] key until the button to be changed.
7. Press [*].
8. Scroll through the buttons using the [Panic >>] key until the function required press [*] to confirm.
9. Enter the parameter followed by [*] to confirm (See table 11 below).
10. Press [#] to exit.
Table 9: Button Assignable Functions
Function Parameter
Unassigned --
Arm Partition No
Disarm Partition No
Arm/Disarm Partition No
Global Arm
Global Disarm
Global
Arm/Disarm
Stay Arm Partition No
Stay Arm Prof1 Partition No
Stay Arm Prof2 Partition No
Stay Arm Prof3 Partition No
Stay Arm Prof4 Partition No
Stay & Go Partition No
Stay & Go Prof1 Partition No
Stay & Go Prof2 Partition No
Stay & Go Prof3 Partition No
Stay & Go Prof4 Partition No
Description
No function allocated
Will only arm the partition allocated to button and user code
Will only disarm the partition allocated to button and user code
Will only arm or disarm the partition allocated to the user code
Will only arm the partitions allocated to the user code
Will only disarm the partitions allocated to the user code
Will only arm or disarm the partitions allocated to the user code
Will arm the allocated partition in the current/last used stay profile
Will arm the allocated partition in stay profile 1
Will arm the allocated partition in stay profile 2
Will arm the allocated partition in stay profile 3
Will arm the allocated partition in stay profile 4
Will arm the allocated partition in the current/last used stay profile
Will arm the allocated partition in stay & Go in stay profile 1
Will arm the allocated partition in stay & Go in stay profile 2
Will arm the allocated partition in stay & Go in stay profile 3
Will arm the allocated partition in stay & Go in stay profile 4
700-398-01J X-Series User Manual Issued for version 2.8x
Arm/Disarm
Unassigned
Query Button
25
