Item #1000 000 000
Model #PHX12-3K-BZ
USE AND CARE GUIDE

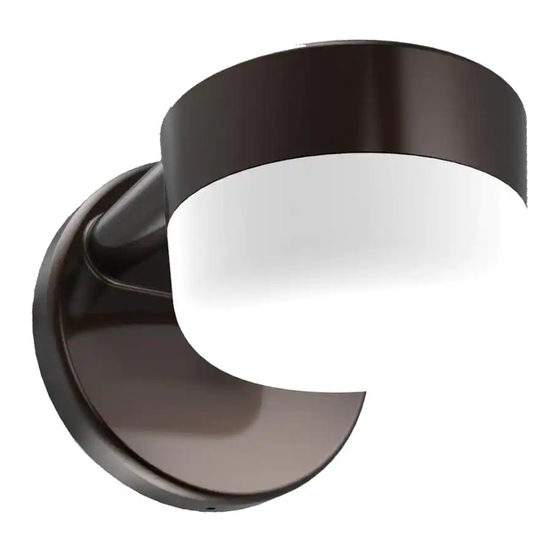

PHOENIX LED ARCHITECTURAL WALLPACK
Questions, problems, missing parts? Before returning to the store,
call Commercial Electric Customer Service
9 a.m. - 5 p.m., EST, Monday - Friday
1-844-548-3776
HOMEDEPOT.COM
THANK YOU
We appreciate the trust and confidence you have placed in Commercial Electric through the purchase of this LED
wallpack. We strive to continually create quality products designed to enhance your home. Visit us online to see our
full line of products available for your home improvement needs. Thank you for choosing Commercial Electric!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Commercial Electric PHX12-3K-BZ
Summary of Contents for Commercial Electric PHX12-3K-BZ
- Page 1 HOMEDEPOT.COM THANK YOU We appreciate the trust and confidence you have placed in Commercial Electric through the purchase of this LED wallpack. We strive to continually create quality products designed to enhance your home. Visit us online to see our...
-
Page 2: Table Of Contents
Table of Contents Safety Information .............2 Installation ..............5 Warranty..............2 Operation..............8 Pre-Installation ............3 Care and Cleaning .............8 Preparing for Installation ..........5 Troubleshooting ............9 Safety Information IMPORTANT WARNING: Before installation or servicing, turn the power OFF at the circuit breaker or fuse. Place tape over THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE the circuit breaker switch and verify power is OFF at the WITH THE APPLICABLE NATIONAL ELECTRICAL CODE AND... -
Page 3: Pre-Installation
Warranty (continued) LIMITATION OF LIABILITY In no event shall the manufacturer be liable for indirect, consequential, incidental or special damages, or lost profits. The manufacturer is not liable for any claims or damage arising out of or connected with the manufacture, sale, delivery, use, maintenance and repair or modification of the manufacturer products, or supply of any replacement parts that exceed the purchase price of the manufacturer products giving rise to a claim. - Page 4 Pre-Installation (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity #8-32x3/4 in. Philips mounting bracket screw Wire nut Clear photocell (light sensor) screw-on cap Allen key PACKAGE CONTENTS Part Description Quantity Light fixture Photocell (light sensor) Mounting plate bolt (pre-installed) Mounting plate with gasket (pre-installed) Hanger wire for hands-free installation (pre-installed)
-
Page 5: Preparing For Installation
Preparing for Installation CAUTION: Do not try to rotate the photocell receptacle on top of the fixture as it may twist the wiring. NOTE: Make sure the photocell is locked on the receptor. Do not over rotate after it is locked. Review this information to ensure a successful installation: □... - Page 6 Installation (continued) Removing the mounting plate NOTE: The mounting plate (D) and mounting plate bolt (C) come pre-assembled on the light fixture (A) for shipping. □ Remove the mounting plate (D) from the back of the fixture by loosening the mounting plate bolt (C) using the Allen key (DD).
- Page 7 Installation (continued) Making the electrical connections □ If necessary, strip 3/8 in. of insulation from the junction box or fixture (A) wires. □ Connect the fixture black wire to the house black wire ((+) line), and fixture white wire to the house white wire ((-) common) by twisting the exposed wires together and using the wire 3/8 in.
-
Page 8: Operation
Operation SELECTING DUSK-TO-DAWN OR SWITCH-ACTIVATED CONTROL Option 1: Dusk-to-Dawn Operation Dusk-to-dawn operation enables the light fixture to automatically turn ON when dark outside and turn OFF when the sun rises, thus saving you energy. □ To enable dusk-to-dawn operation remove the black cap cover (F) and ensure the photocell (B) has the clear cap cover (CC) on it and is unobstructed. -
Page 9: Troubleshooting
Troubleshooting Problem Possible Cause Solution □ Check if circuit breaker is tripped. There is no power to □ Confirm wall switch is ON. Verify wiring to the fixture is correct the fixture. The light does not (turn power OFF to fixture beforehand). turn ON. - Page 10 Questions, problems, missing parts? Before returning to the store, call Commercial Electric Customer Service 9 a.m. - 5 p.m., EST, Monday-Friday 1-844-548-3776 HOMEDEPOT.COM Retain this manual for future use.
