Item #1003 821 753

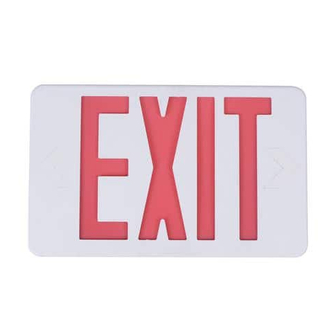

Model #EXLEDRG120277
USE AND CARE GUIDE
DUAL COLOR LED EXIT SIGN
Questions, problems, missing parts? Before returning to the store,
call Commercial Electric Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-877-527-0313
HOMEDEPOT.COM
THANK YOU
We appreciate the trust and confidence you have placed in Commercial Electric through the purchase of this
emergency light. We strive to continually create quality products designed to enhance your home. Visit us online to see
our full line of products available for your home improvement needs. Thank you for choosing Commercial Electric!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Commercial Electric EXLEDRG120277
Summary of Contents for Commercial Electric EXLEDRG120277
- Page 1 HOMEDEPOT.COM THANK YOU We appreciate the trust and confidence you have placed in Commercial Electric through the purchase of this emergency light. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank you for choosing Commercial Electric!
-
Page 2: Table Of Contents
Table of Contents Safety Information .............2 Maintenance ..............7 Warranty..............2 Battery Replacement ..........8 Pre-Installation ............3 Troubleshooting ............8 Installation ..............5 Safety Information IMPORTANT SAFEGUARDS. READ AND FOLLOW ALL SAFETY INSTRUCTIONS. When using electrical equipment, basic safety precautions should WARNING: Before beginning installation, turn off always be followed including the following: electricity by removing the fuse or turning off the circuit breaker. -
Page 3: Pre-Installation
Pre-Installation IMPORTANT: When constructing or remodeling and prior to installing, be sure to check with the local fire marshal or code enforcement office to ensure the correct color guidelines for your municipality are being followed. PLANNING INSTALLATION Before beginning assembly, installation, or operation of the product, make sure all parts are present. Compare parts with the package contents list. - Page 4 Pre-Installation (continued) PACKAGE CONTENTS Part Description Quantity Face plate Exit sign frame Back plate Red lens Green lens JBOX mounting plate Canopy Top/side access cap...
-
Page 5: Installation
Installation Preparing the exit light Changing the color (optional) □ □ Remove the faceplate (A) using a flat screwdriver. Remove the placard buttons (1) by twisting them back and forth while pulling up. Remove □ Remove the appropriate arrow(s) (1) to indicate the preinstalled red lens. - Page 6 Installation (continued) Installing the exit sign to the wall □ Punch out the appropriate mounting pattern and wire hole on the backplate (C) to fit the junction box. Feed the wires through the wire hole. □ Connect the wiring. Refer to “5 Connecting the wiring”.
-
Page 7: Maintenance
Installation (continued) Connecting the wiring Completing the installation □ □ Make wire connections using the wire nuts (BB). Snap the faceplate(s) (A) onto the frame (B). □ □ For 120 V applications, use the black and white Restore power to the circuit. wires. -
Page 8: Battery Replacement
The unit is incorrectly Ensure the unit is wired correctly. wired. The battery isn’t Ensure the battery is connected. connected. If the above troubleshooting does not resolve the issue, contact a qualified electrician, or call Commercial Electric customer service at 1-877-527-0313. - Page 9 Questions, problems, missing parts? Before returning to the store, call Commercial Electric Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday 1-877-527-0313 HOMEDEPOT.COM Retain this manual for future use.
