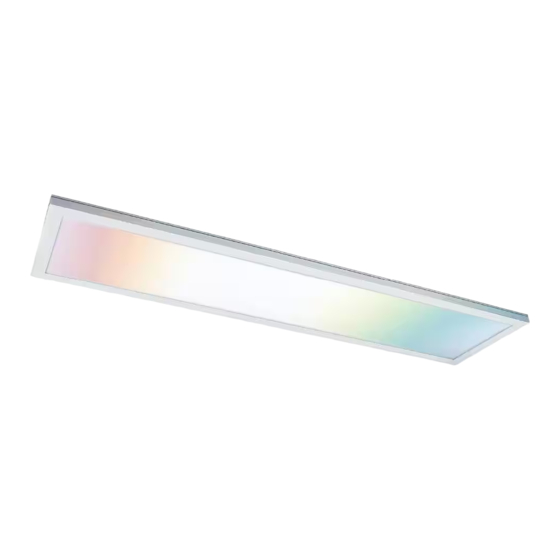

Summary of Contents for Commercial Electric FP1X4RGBWWHAGHD
Page 1
THANK YOU We appreciate the trust and confidence you have placed in Commercial Electric through the purchase of this LED flat panel fixture. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home...
Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. FP1X4RGBWWHAGHD Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an Contains FCC ID: 2AB2Q-LA02301 experienced radio/TV technician for help.
Pre-Installation Ladder Pencil Wire strippers Cordless Drill Part Description Quantity LED Flat Panel Mounting Plate (25.6 in. x 9.8 in. x 0.47 in.) 3/16 in. Toggle Bolts Wire Nuts Screws #8-32 x 1 in. HOMEDEPOT.COM Please contact 1-877-527-0313 for further assistance.
Installation Securing the Toggle Bolts Turning Off the Power □ Remove the mounting plate (BB) from the junction box. □ Turn the power OFF at the switch and fusebox or the □ Drill the marked locations using a 1/2 in. drill bit. circuit breaker.
Page 5
Installation (continued) Attaching the Support Wire Connecting the Swing Arms □ Insert the LED flat panel (AA) swing arm’s key hole slot CAUTION: Care must be taken not to have excess wires into the mounting plate’s (BB) hanging screw. outside the junction box to avoid pinching wires. This may cause a short and could lead to a potential hazard.
Controlling the Light with the Hubspace App Downloading the Hubspace App □ Download the Hubspace™ app from the App Store or Google Play Store to your mobile device. □ Turn on the Bluetooth® & Wi-Fi® functions of the smart device to ensure the Wi-Fi® signal at home is stable and reliable. □...
Care and Cleaning □ To clean the fixture, first disconnect the power to the fixture by turning off the circuit breaker of by removing the fuse at the fuse box. □ Use a dry or slightly dampened, clean cloth (use clean water, never use a solvent) to wipe the surface of the fixture. □...
Page 8
Questions, problems, missing parts? Before returning to the store, call Commercial Electric Customer Service 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-877-527-0313 HOMEDEPOT.COM Retain this manual for future use.
