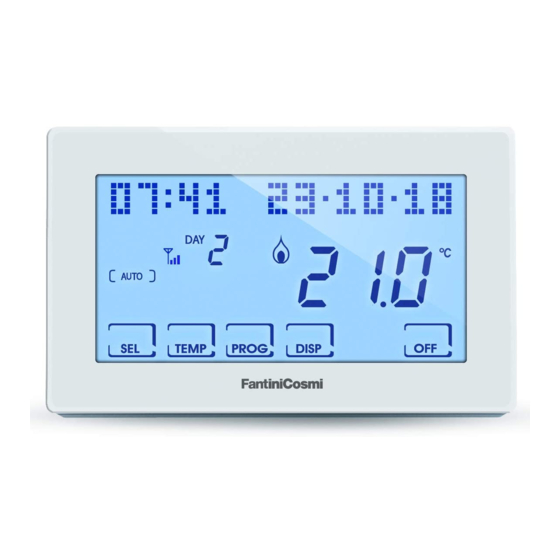

INSTRUCTIONS FOR USE
CH180-230V
TOUCH-SCREEN PROGRAMMABLE
THERMOSTAT
Fantini Cosmi S.p.a. Via dell'Osio, 6 20049 Caleppio di Settala MI - ITALY
Tel. 02 956821 I Fax 02 95307006 I info@fantinicosmi.it I http://www.fantinicosmi.it
Technical support: supportotecnico@fantinicosmi.it
EXPORT DEPARTMENT Tel. ++39 02 95682222 I export@fantinicosmi.it
Advertisement
Table of Contents
Related Manuals for Fantini Cosmi CH180-230V
Summary of Contents for Fantini Cosmi CH180-230V

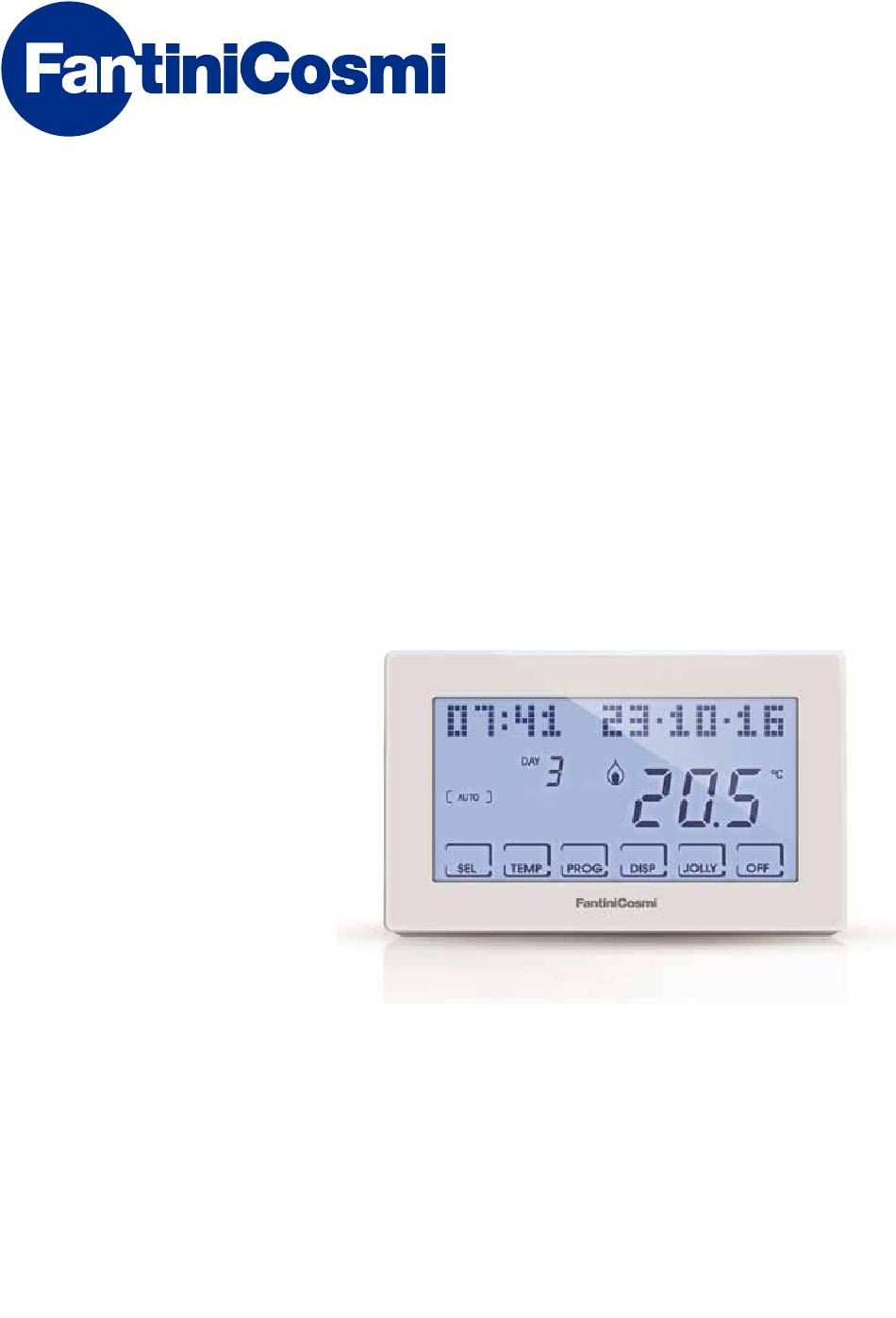

- Page 1 INSTRUCTIONS FOR USE CH180-230V TOUCH-SCREEN PROGRAMMABLE THERMOSTAT Fantini Cosmi S.p.a. Via dell’Osio, 6 20049 Caleppio di Settala MI - ITALY Tel. 02 956821 I Fax 02 95307006 I info@fantinicosmi.it I http://www.fantinicosmi.it Technical support: supportotecnico@fantinicosmi.it EXPORT DEPARTMENT Tel. ++39 02 95682222 I export@fantinicosmi.it...
-
Page 2: Operation
OPERATION The CH180-230V is a programmable thermostat for controlling heating and/or cooling systems. It has a customised temperature program on a time profile for every season, which can be changed as needed. The positive LCD display with white backlighting can also show an intuitive graph of the energy consumption of the entire system. -
Page 3: Description Of Display Keys
CH180-230V TOUCH-SCREEN PROGRAMMABLE THERMOSTAT DESCRIPTION OF DISPLAY KEYS The first press of any touch button allows you to activate the functions of the buttons themselves and to light up the display. [ HOLIDAY ] JOLLY ] AUTO ENTER COPY DISP... -
Page 4: Technical Features
CH180-230V TOUCH-SCREEN PROGRAMMABLE THERMOSTAT TECHNICAL FEATURES Temperature adjustment scale 2 - 40°C, increase 0.1°C Measurement scale/room T display - 50 - + 50 °C Power supply 230V 50 Hz 1 relay with potential-free change-over contact (COM/NA/NC) Type of output 3 screw terminals (closed + open) -
Page 5: Table Of Contents
CH180-230V TOUCH-SCREEN PROGRAMMABLE THERMOSTAT Summary OPERATION ..............2 6.9 - CHG ..................25 6.10 - TECHNICAL ...............25 CONTENTS OF PACKAGE ..........2 6.11 - RESETTING DEFAULT PARAMETERS .......26 DESCRIPTION OF DISPLAY KEYS ........3 7 - DISPOSAL ..............27 TECHNICAL FEATURES ........... 4 8 - GENERAL WARRANTY CONDITIONS ...... -
Page 6: Installation
Make sure that the power supply is disconnected before performing installation. The CH180-230V programmable thermostat must be installed on the wall or on a flush mounting box, in 3 units or round, at a height of about 1.5m from the floor, in a suitable position to detect the room temperature correctly. - Page 7 CH180-230V TOUCH-SCREEN PROGRAMMABLE THERMOSTAT Pry the back panel off the body by applying pressure to the specific groove at the bottom. Remove the insulating protection by unscrewing the specific waterproof screw. 230V~ 230V~ 5(3)A 250v~ 5(3)A 250v~ Make the electrical connections (refer to the “Electrical connections” paragraph) and secure the panel to the wall with the supplied screws.
-
Page 8: Electrical Connection
CH180-230V TOUCH-SCREEN PROGRAMMABLE THERMOSTAT 2 - ELECTRICAL CONNECTION ATTENTION! Electrical connections must be made by qualified personnel. ATTENTION! Electrical connection operations must be done with the system’s power disconnected. Electrical connections must be made referencing the following diagram. Power supply... -
Page 9: Quick Programming Guide (Prog)
CH180-230V TOUCH-SCREEN PROGRAMMABLE THERMOSTAT 3 - QUICK PROGRAMMING GUIDE (PROG) The first time any touch key is pressed has no effect, but only activates the functions of the buttons themselves and lights up the display. After 60 seconds of no interaction, the display goes back to the main screen. -
Page 10: Winter/Summer Setting
CH180-230V TOUCH-SCREEN PROGRAMMABLE THERMOSTAT 3.2 - WINTER/SUMMER SETTING 12:01 01-01-18 23.0 TEMP PROG DISP JOLLY PROGR UTENTE DATA E ORA INVERNO PREMERE PREMERE ENTER DATA E ORA INVERNO ESTATE INVERNO ENTER PROFILO PROG VIS: ORARIO BLOCCO NO 3.3 - HOURLY PROGRAMMING SETTING (PROFILE) The profiles are set based on whether WINTER or SUMMER mode was previously selected. - Page 11 CH180-230V TOUCH-SCREEN PROGRAMMABLE THERMOSTAT Pressing allows you to select the profile depending on the time. SETTABLE PROFILES: 18.0 ■ tC (comfort) = SUMMER, WINTER ■ tE (economy) = SUMMER, WINTER ■ tA (antifreeze) = only for WINTER ENTER COPY ■ OFF = only for SUMMER In winter tE <...
-
Page 12: Setting The Display
CH180-230V TOUCH-SCREEN PROGRAMMABLE THERMOSTAT 3.4 - SETTING THE DISPLAY 12:01 01-01-18 23.0 TEMP PROG DISP JOLLY PROGR UTENTE DATA E ORA VIS: ORARIO PREMERE PREMERE ENTER DATA E ORA VIS:ORARIO VIS:INFO INVERNO ENTER PROFILO PROG VIS: ORARIO BLOCCO NO DISPLAYS: 15:05 28-02-18 24.1... -
Page 13: Setting Keyboard Lock With Password
CH180-230V TOUCH-SCREEN PROGRAMMABLE THERMOSTAT 3.5 - SETTING KEYBOARD LOCK WITH PASSWORD 12:01 01-01-18 23.0 TEMP PROG DISP JOLLY PROGR UTENTE DATA E ORA BLOCCO NO PREMERE DATA E ORA BLOCCO NO BLOCCO SI INVERNO ENTER PROFILO PROG VIS: ORARIO BLOCCO NO Note: selecting LOCK YES displays the PROG key. -
Page 14: Operation (Sel)
TOUCH-SCREEN PROGRAMMABLE THERMOSTAT 4 - OPERATION (SEL) The CH180-230V programmable thermostat is a device equipped with a temperature sensor, with an output relay on board, which manages heating and/or air conditioning units. The LCD display shows you how much energy the entire system consumes through an intuitive graph. -
Page 15: Selecting The Operating Program
CH180-230V TOUCH-SCREEN PROGRAMMABLE THERMOSTAT 4.2 - SELECTING THE OPERATING PROGRAM The programs are selected in cyclical order. TMAN = 25.0 23.0 [ MAN ] PROG TEMP DISP JOLLY TMAN = 25.0 23.0 24.4 24.4 PREMERE [ AUTO ] [ AUTO ]... -
Page 16: Jolly" Program Setting
CH180-230V TOUCH-SCREEN PROGRAMMABLE THERMOSTAT 4.3 - “JOLLY” PROGRAM SETTING Select JOLLY mode by following the procedure described in the “SELECTING THE OPERATING PROGRAM” paragraph or by pressing JOLLY. JOLLY TJ = 20.0 12:01 01-01-18 12:01 01-01-18 PREMERE PREMERE 24.2 PREMERE... -
Page 17: Setting "Auto" And "Holiday" Program Temperature
CH180-230V TOUCH-SCREEN PROGRAMMABLE THERMOSTAT 4.4 - SETTING “AUTO” and “HOLIDAY” PROGRAM TEMPERATURE You can set a tCOMF (comfort temperature) and tECO (economy temperature )temperature value between 2° and 40°C. 12:01 01-01-18 24.4 [ AUTO ] TEMP PROG DISP JOLLY TCOMF = 20.1 TECO = 17.9... -
Page 18: Parameter Display (Disp)
CH180-230V TOUCH-SCREEN PROGRAMMABLE THERMOSTAT 5 - PARAMETER DISPLAY (DISP) Press the DISP key to view the most significant parameters cyclically. 5.1 - DATE AND TIME 12:01 01-01-18 24.2 [ AUTO ] TEMP PROG DISP JOLLY 12:01 01-01-18 DATA E ORA... -
Page 19: Profile
CH180-230V TOUCH-SCREEN PROGRAMMABLE THERMOSTAT 5.3 - PROFILE 12:01 01-01-18 24.2 [ AUTO ] TEMP PROG DISP JOLLY 12:01 01-01-18 PREMERE 24.4 DATA E ORA INVERNO PROFILO ENTER ORE UTILIZZO ENTER Note: this section is only visible in [AUTO] and [HOLIDAY] mode; in [JOLLY], the display shows the end date and... -
Page 20: Hours Of Use
CH180-230V TOUCH-SCREEN PROGRAMMABLE THERMOSTAT 5.4 - HOURS OF USE The programmable thermostat records the total consumption of the heating and cooling hours. 12:01 01-01-18 24.2 [ AUTO ] TEMP PROG DISP JOLLY 12:01 01-01-18 ORE UTILIZZO GIORNO PRECED. PREMERE PREMERE... -
Page 21: Advanced Functions (Prog)
CH180-230V TOUCH-SCREEN PROGRAMMABLE THERMOSTAT 6 - ADVANCED FUNCTIONS (PROG) To access ADVANCED PROGRAMMING, hold down the PROG key for a few seconds. 6.1 - SECONDS DISPLAY STAYS ON Allows you to adjust the display’s backlight (sky blue light) with a duration that can be programmed between 5 and 30 seconds. -
Page 22: Daylight Savings Time
CH180-230V TOUCH-SCREEN PROGRAMMABLE THERMOSTAT 6.3 - DAYLIGHT SAVINGS TIME Automatically selects the daylight saving time, applicable in European and some other countries. This allows you to automatically update the time at the time change (March and October) (default = YES). -
Page 23: Room Temperature Correction
CH180-230V TOUCH-SCREEN PROGRAMMABLE THERMOSTAT 6.5 - ROOM TEMPERATURE CORRECTION This allows you to modify the read temperature, which, due to the recessed wall installation or perhaps a non-ideal height, might not indicate the true temperature perceived. 12:01 01-01-18 23.0 TEMP... -
Page 24: Celsius / Fahrenheit
CH180-230V TOUCH-SCREEN PROGRAMMABLE THERMOSTAT 6.7 - CELSIUS / FAHRENHEIT Allows you to choose the set the temperature display scale between degrees Celsius and degrees Fahrenheit. 12:01 01-01-18 23.0 TEMP PROG DISP JOLLY PROGR AVANZ LUCE ON 5S CELSIUS 26.0 PREMERE... -
Page 25: Chg
CH180-230V TOUCH-SCREEN PROGRAMMABLE THERMOSTAT 6.9 - CHG It allows the automatic change of seasons. 12:01 01-01-18 23.0 PROG TEMP DISP JOLLY PROGR AVANZ LUCE ON 5S CHG 0: --- PREMERE PREMERE LUCE ON 5S CELSIUS ENTER INT LUCE 5 ITALIANO... -
Page 26: Resetting Default Parameters
CH180-230V TOUCH-SCREEN PROGRAMMABLE THERMOSTAT 6.11 - RESETTING DEFAULT PARAMETERS Allows you to reset all parameters (except the date and time) to the factory settings. 12:01 01-01-18 23.0 TEMP PROG DISP JOLLY RESET NO PROGR AVANZ LUCE ON 5S PREMERE PREMERE... -
Page 27: Disposal
CH180-230V TOUCH-SCREEN PROGRAMMABLE THERMOSTAT 7 - DISPOSAL The symbol of the crossed-out wheeled bin indicates that the products must be collected and disposed of separately from household waste. The batteries and integrated accumulators may be disposed of together with the product. They will be separated at the recycling facilities. A black bar indicates that the product was placed on the market after August 13th, 2005. - Page 28 Fantini Cosmi S.p.a. Via dell’Osio, 6 20049 Caleppio di Settala MI - ITALY Tel. 02 956821 I Fax 02 95307006 I info@fantinicosmi.it I http://www.fantinicosmi.it Technical support: supportotecnico@fantinicosmi.it EXPORT DEPARTMENT Tel. ++39 02 95682222 I export@fantinicosmi.it...
