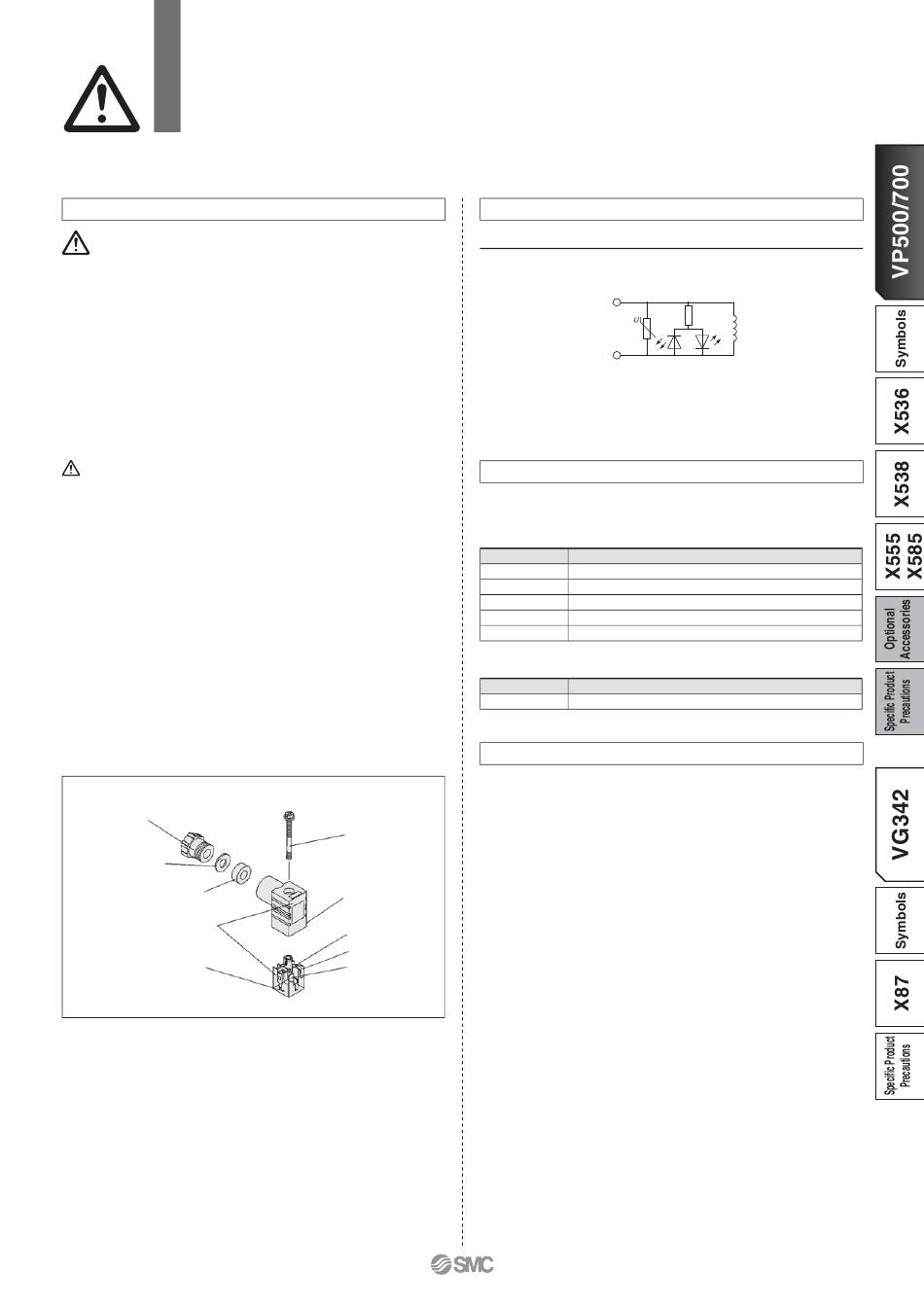

VP500/700-X536, X538, X555, X585

Specific Product Precautions

Be sure to read this before handling. Refer to the back cover for Safety Instructions.
For 3/4/5 Port Solenoid Valve Precautions, refer to the Operation Manual on the SMC
website, http://www.smc.eu
How to Use DIN Terminal Connector
Caution
Connection
1. Loosen the holding screw and pull the connector out of the
solenoid valve terminal block.
2. After removing the holding screw, insert a fl at blade
screwdriver etc. into the notch on the bottom of the terminal
block and pry it open, separating the terminal block and the
housing.
3. Loosen the screw (slotted screws) in the terminal block. Insert
the lead core wires to the terminals according to the connection
method, and secure the wires by re-tightening the terminal
screw.
4. Secure the cord by fastening the ground nut.
Caution
When making connections, please note that using other than the
supported size (Ø 3.5 to Ø 7) heavy-duty cord will not satisfy IP65
(enclosure) standards. Also, be sure to tighten the ground nut
and holding screw within their specifi ed torque ranges.
Changing the entry direction
After separating the terminal block and housing, the cord entry
can be changed by attaching the housing in the desired direction
(4 directions at 90° intervals).
∗ When equipped with a light, be careful not to damage the light
with the cord's lead wires.
Precautions
Plug in and pull out the connector vertically without tilting to one
side.
Compatible cable
Cord O.D.: Ø 3.5 to Ø 7
2
(Reference) 0.5 mm , 2-core or 3-core, equivalent to JIS C 3306
Ground nut
Tightening torque
1.65 to 2.5 N·m
Washer
Grommet
(Rubber)
Voltage symbol
Type D: 24 V
Type Y: 24 VN
Terminal screw
(3 locations)
Tightening torque
0.2 to 0.25 N·m
Type "Y"
DIN connector type Y is a DIN connector that confi rms to the DIN
pitch 8-mm standard.
• D type DIN connector with 9.4 mm pitch between terminals is
not interchangeable.
• To distinguish from the D type DIN connector, "N" is listed at the
end of voltage symbol.
• Dimensions are completely the same as D type DIN connector.
DIN Terminal
With light (DZ)
Note) Surge voltage suppressor of varistor has residual voltage
corresponding to the protective element and rated voltage;
therefore, protect the controller side from the surge voltage.
OMRON or Rockwell Automation M12 connector limit switch ca-
ble is available.
M12 Connector Cable (4 Pins) Made by OMRON
Part number
ZS-37-L
ZS-37-M
ZS-37-N
ZS-37-P
ZS-37-C
M12 Connector Cable (6 Pins) Made by Rockwell Automation
Part number
VP500-231-1
Use the external pilot type when using VP500/700-X536 or X538
with AV series. Install the AV series to the primary side.
Holding screw
Tightening torque
0.4 N·m
Housing
(Position for light
mounting)
Terminal block
Notch
Light/Surge Voltage Suppressor
(YZ)
No.1
(–)(+)
Varistor
No.2
(+)(–)
LED
There is no polarity.
Limit Switch Cable
Cable length [mm]
300
500
1000
2000
5000
Cable length [mm]
2000
Installation
Coil
