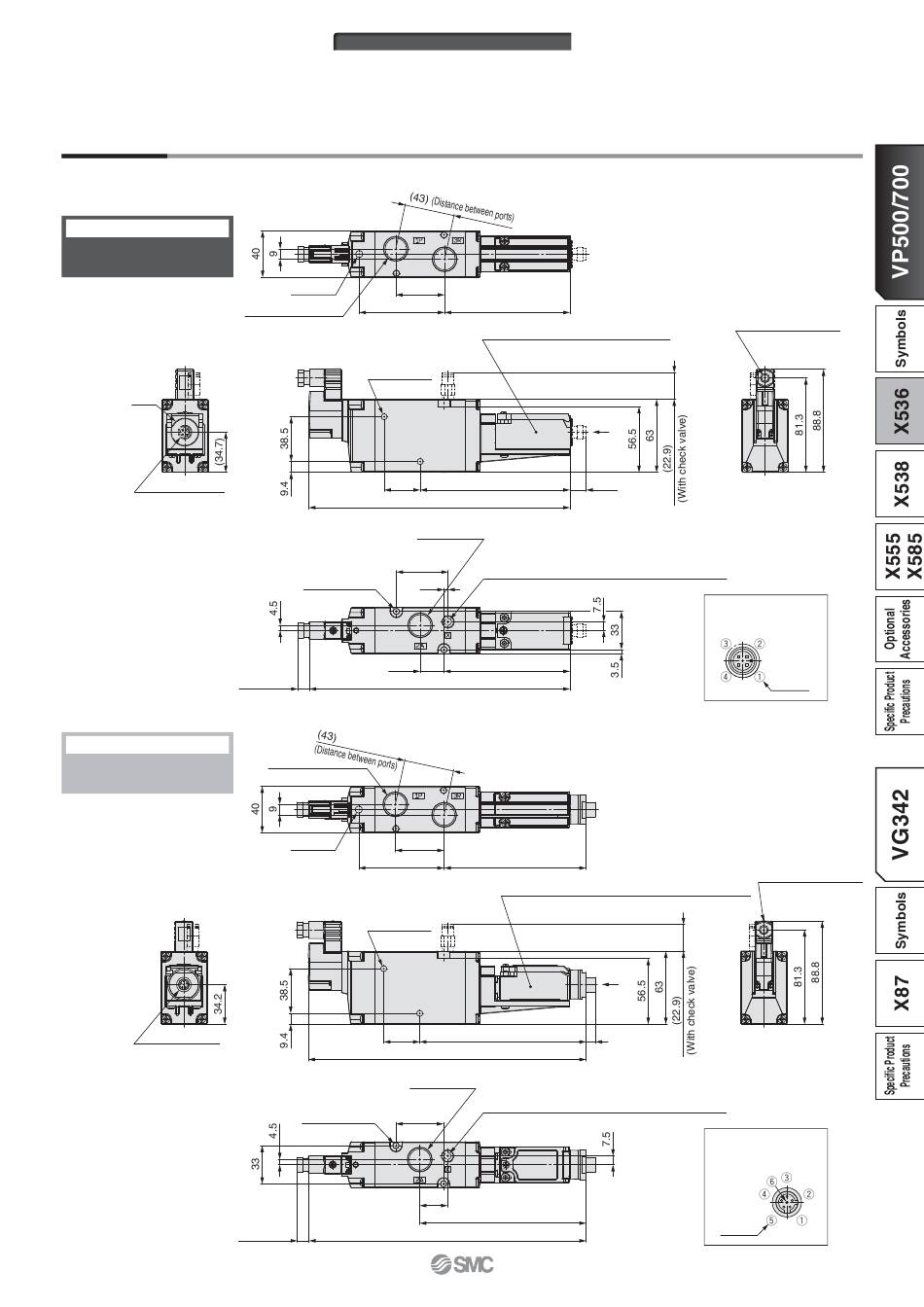

Dimensions
D
VP742(R)-5 Z1-04„-„-X536
Y
D
VP742(R)-5 Z1-04„-M„-X536
Y
Safety limit switch
Made by
OMRON
G 1/2
(M12 connector)
D
VP742(R)-5 Z1-04„-S1„-X536
Y
Safety limit switch
Made by
Rockwell Automation
M12 connector
Safety Standard ISO 13849-1 Certifi ed
Residual Pressure Release Valve with Detection of Main Valve Position
Vent port
(Ø 6.2)
73.5
1/2"
[1(P), 3(R) port]
Ø 5.2
(For mounting)
31
44.5
Ø 5.2
(For mounting)
20.5
(Max. 10)
1/2"
[1(P), 3(R) port]
Vent port
(Ø 6.2)
73.5
2 x Ø 5.2
(For mounting)
31
1/2"
[2(A) port]
2 x Ø 5.2
(For mounting)
(Max. 10)
42
107.9
Safety limit switch (made by OMRON)
Part number: D4N-2B31 (G 1/2)
: D4N-9B31 (M12 connector)
128.9
224.8
1/2"
[2(A) port]
Port size: 1/8" (Without check valve)
Applicable tube O.D.: Ø 6, Ø 1/4" (With check valve)
3.5
(External pilot port)
108.4
224.2
42
122.2
Safety limit switch (made by Rockwell Automation)
Part number: 440P-CDPB03R6
143.2
239.1
Port size: 1/8" (Without check valve)
Applicable tube O.D.: Ø 6, Ø 1/4" (With check valve)
41
(External pilot port)
24
143.2
238.5
3 Port Solenoid Valve/
VP-X536
Residual Pressure Release Valve (-X536)
Applicable cable O.D.
Ø 3.5 to Ø 7
A
(14)
View A
For M12 connector
Pin
number
Applicable cable O.D.
Ø 3.5 to Ø 7
A
8
View A
M12 connector
Pin
number
8
