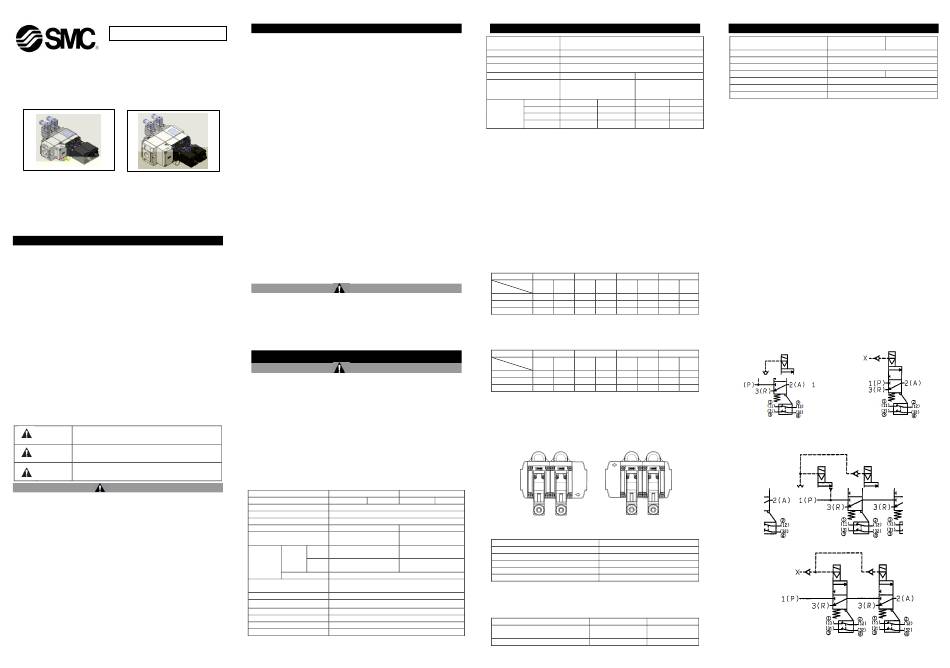

SMC Networks VP 46 Series Instruction Manual

VP-SMY116EN
ORIGINAL INSTRUCTIONS
Instruction Manual
Residual pressure release valve for use in
safety related systems
Series VP#46 modular connection type
Safety component as defined by the Machinery
Directive 2006/42/EC article 2c.
The intended use of this valve is to vent a protected system to
atmosphere when it is de-energised. When properly integrated into a
suitable safety system the duplex valves are compatible for use in
systems up to Category 4, and the single valves are compatible for use
in systems up to Category 2 as defined by EN ISO 13849-1:2015.
1 Safety Instructions
These safety instructions are intended to prevent hazardous situations
and/or equipment damage. These instructions indicate the level of
potential hazard with the labels of "Caution," "Warning" or "Danger."
They are all important notes for safety and must be followed in addition
to International Standards (ISO/IEC) *1) , and other safety regulations.
*1)
ISO 4414: Pneumatic fluid power - General rules relating to systems.
ISO 4413: Hydraulic fluid power - General rules relating to systems.
IEC 60204-1: Safety of machinery - Electrical equipment of machines.
(Part 1: General requirements)
ISO 10218-1: Robots and robotic devices - Safety requirements for
industrial robots - Part 1: Robots.
This manual contains essential information for the protection of users and
others from possible injury and/or equipment damage.
• Refer to product catalogue, Operation Manual and Handling
Precautions for SMC Products for additional information.
• Read this manual before using the product, to ensure correct handling,
and read the manuals of related apparatus before use.
• Keep this manual in a safe place for future reference.
• To ensure safety of personnel and equipment the safety instructions in
this manual must be observed, along with other relevant safety
practices.
Caution indicates a hazard with a low level of risk which, if
Caution
not avoided, could result in minor or moderate injury.
Warning indicates a hazard with a medium level of risk
Warning
which, if not avoided, could result in death or serious injury.
Danger indicates a hazard with a high level of risk which, if
Danger
not avoided, will result in death or serious injury.
Warning
• The compatibility of the product is the responsibility of the person
who designs the equipment or decides its specifications.
Since the product specified here is used under various operating
conditions, its compatibility with specific equipment must be decided
by the person who designs the equipment or decides its specifications
based on necessary analysis and test results. The expected
performance and safety assurance of the equipment will be the
responsibility of the person who has determined its compatibility with
the product. This person should also continuously review all
specifications of the product referring to its latest catalogue
information, with a view to giving due consideration to any possibility
of equipment failure when configuring the equipment.
• Only personnel with appropriate training should operate
machinery and equipment.
The product specified here may become unsafe if handled incorrectly.
The assembly, operation and maintenance of machines or equipment
including our products must be performed by an operator who is
appropriately trained and experienced.
1 Safety Instructions - continued
• Do not service or attempt to remove product and machinery/
equipment until safety is confirmed.
1) The inspection and maintenance of machinery/equipment should
only be performed after measures to prevent falling or runaway of the
driven objects have been confirmed.
2) When the product is to be removed, confirm the safety measures as
mentioned above are implemented and the power from any
appropriate source is cut, and read and understand the specific
product precautions of all relevant products carefully.
3) Before machinery/equipment is restarted, take measures to prevent
unexpected operation and malfunction.
• Do not use this product outside of the specifications.
• Contact SMC beforehand and take special consideration of safety
measures if the product is to be used in any of the following
conditions.
1) Conditions and environments outside of the given specifications or
use outdoors or in a place exposed to direct sunlight.
2) Installation on equipment in conjunction with atomic energy,
railways, air navigation, space, shipping, vehicles, military, medical
treatment, combustions and recreation, or equipment in contact with
food or beverages, emergency stop circuits, clutch and brake circuits
in press applications, safety equipment or other applications unsuitable
for the specification described in this document.
3) An application which could have negative effects on people,
property or animals requiring special safety analysis outside the scope
of EN ISO 13849 described in this document.
4) Use in an interlock circuit, which requires the provision of double
interlock for possible failure by using a mechanical protective function,
and periodical checks to confirm proper operation.
• Always ensure compliance with relevant safety laws and
standards.
• All electrical work must be carried out in a safe manner by a qualified
person in compliance with applicable national regulations.
Caution
• The product is provided for use in manufacturing industries.
The product herein described is basically provided for peaceful use in
manufacturing industries.
If considering using the product in other industries, consult SMC
beforehand and exchange specifications or a contract if necessary.
If anything is unclear, contact your nearest sales branch.
2 Specifications
Warning
Special products (-X) might have specifications different from those
shown in this Instruction Manual. Contact SMC for specific drawings.
2.1 Functional description
The product consists of either one or two solenoid operated 2 position 3
port valves, which are connected to a main air supply (in some cases via
an integrated soft-start valve). The valves are capable of performing the
safety function described in this document. The soft start valve is
intended to allow the end user to perform machine operational start up
procedures with reduced flow potential until a pre-set operational
pressure is achieved. At the defined pressure the soft start valve allows
full flow in order to achieve full operation. The soft start function is
intended for machine operation purposes and not for the performance of
a safety function.
2.2 Valve specifications
Standard High pressure
Size VP546 VP746 VP546K
Type of Actuation Normally closed
Return method Spring return
Fluid Air
Proof pressure [MPa] 1.05 1.5
Internal pilot operating pressure
0.25 to 0.7 0.25 to 1
range [MPa]
S, D
External pilot 0.05 to 0.7 0.05 to 1
Main type
operating
pressure SS, DS
pressure 0.25 to 0.7 0.25 to 1
type
range [MPa]
Pilot pressure Same as main pressure (min. 0.25)
Ambient & operating fluid
-10~+50 (no freezing / no condensation)
temperature [°C]
Ambient humidity 20 to 90% RH (no condensation)
Note 1)
Lubrication Not required
Operating frequency: Max 30 cycles per minute
Operating frequency: Min 1 cycle per week Note 2)
Duty cycle Contact SMC
Response time See 2.11.2
2 Specifications - continued
Impact / Vibration resistance
150 / 30
Note 3)
[m/s²]
5 μm filtration or smaller
Air quality
Environment Indoor use only
Enclosure
Note 6)
B [cycles] 10,000,000
10D
Maximum 20 years or when
Mission time [years or cycles] the number of cycles = B
Note 7)
whichever occurs first
M-S type 0.5 0.8
Mass
M-D type 0.8 1.4
(examples)
M-SS type 0.7 1.3
[kg]
1.0 1.9
M-DS type
Table 1.
Note 1) If lubrication is used in the system, use class 1 turbine oil (no additive), ISO
VG32.
Note 2) The valve must be energised/de-energised at least once per week.
Note 3) See section 2.5 for switch impact/vibration specifications.
Note 4) Impact resistance:
• No malfunction resulted from the impact test using a drop impact tester.
• The test was performed in both energised and de-energised states to
the axis of and at right angles to the direction of the main valve and
armature (Values quoted are for a new valve).
Note 5) Vibration resistance:
• No malfunction occurred in a one-sweep test between 8.3 and 2000 Hz.
• Test was performed in both energised and de-energised states to the
axis of and at right angles to the direction of the main valve and armature
(Values quoted are for a new valve).
Note 6) The B figure is estimated from SMC life tests under SMC test conditions.
10D
Note 7) See section 2.11.4 for details.
Note 1, 2)
2.3 Flow characteristics
VP546 S type D type
Flow Passage: 1→2 2→3 1→2 2→3
characteristics
(P→A) (A→R) (P→A) (A→R) (P→A)
C[liter/(s.bar)] 8.8 8.3 6.6 8.3
b 0.18 0.18 0.13 0.18
Cv 2.1 2.0 1.5 2.0
Table 2.
VP746 S type D type
Flow Passage:
1→2 2→3 1→2 2→3
characteristics
(P→A) (A→R) (P→A) (A→R) (P→A)
C[liter/(s.bar)] 14.2 12.3 10.8 12.3
b 0.22 0.25 0.13 0.25
Cv 3.4 3.0 2.5 3.0
Table 3.
Note 1) Flow characteristics shown are for standard pressure type and high
pressure type.
Note 2) For flow during soft start mode, see section 2.8.2.
The flow direction is identifiable by an arrow in the manifold itself. Please
see some examples in Figure 1.
VP746K
Figure 1.
2.4 Pilot valve specifications
Electrical entry D or Y type DIN terminal (See 3.8.1)
Coil rated voltage [VDC]
Allowable voltage fluctuation
Power consumption [W]
Surge voltage suppressor
Indicator light
Table 4.
Note 1) Valve state is not defined if electrical input is outside of specified operating
ranges.
2.5 Limit switch specifications
Omron
G1/2 conduit
Electrical entry
M12 connector
Contact resistance [mΩ] 25 max
2 Specifications - continued
Note 4, 5)
Minimum permissible load
Rated voltage [VDC]
Maximum permitted load current [mA]
Maximum permitted load inductance [H]
IP65
Rated insulation voltage [V]
Note 6)
5,000,000
Electric shock protection class
Maximum 20 years or when
Pollution degree
, the number of cycles = B ,
10D 10D
Note 7) Vibration / Impact resistance
whichever occurs first
0.5 0.8
0.8 1.4
Note 1) For the purposes of EN ISO 13849-2:2012 table D.2 the switch is de-rated
0.7 1.3
from the figures specified by the switch manufacturer. The switch load must
1.0 1.9
be limited in the application in order to maintain the specified safety
performance, including the B
Note 2) The Omron switch is subject to the following vibration and impact limitations
specified by the manufacturer:
• 'Contact opening time should be less than a 1 ms pulse under vibration
of 0.75 mm single amplitude, 10 to 55 Hz, 10 cycles in each direction for
45 minutes.'
• Impact: 300 m/s2 (Contact open time: 1 ms maximum pulse).
Note 3) The Rockwell Automation switch is subject to the following vibration and
impact limitations specified by the manufacturer:
• Impact: IEC60068-2-7 (30gn (300m/s
• Vibration: IEC60068-2-6 (10...55Hz, 0.35mm amplitude).
2.6 Safety specification
• Safety function: When the valve is de-energised, the protected circuit
is vented to atmosphere.
• The valve assembly is compatible for use in systems up to either
Category 2 or Category 4 depending on configuration according to the
Safety Standard when integrated into a suitable safety system.
• In this section, 'the Safety Standard' refers to EN ISO 13849-1 and 'the
SS type DS type
Validation Safety Standard' refers to EN ISO 13849-2 as referenced in
1→2 2→3 1→2 2→3
the Declaration of Conformity.
(A→R) (P→A) (A→R)
• Information about compatibility with the Safety Standard is given in
6.6 8.3 5.6 8.3
section 2.11.
0.13 0.18 0.06 0.18
1.5 2.0 1.3 2.0
2.7 Pneumatic symbols (examples)
2.7.1 S type
SS type DS type
1→2 2→3 1→2 2→3
(A→R) (P→A) (A→R)
10.6 12.3 8.9 12.3
0.11 0.25 0.08 0.25
2.4 3.0 2.0 3.0
Figure 2. Internal pilot
(Omron switch variant shown for reference)
2.7.2 D type
Figure 4. Internal pilot (Omron switch variant shown for reference)
24
Note 1)
-10% to +10%
0.45
Varistor
LED
Rockwell Automation
M12 connector
Figure 5. External pilot (Omron switch variant shown for reference)
50 max
5 VDC 1mA 5 VDC 5mA
(resistive load) (resistive load)
24
Note 1)
50
Note 1)
0.5
300 600
Class II (EN 60947-5-1)
Level 3 (EN 60947-5-1)
2, 3)
See note
Table 5.
and mission time.
10D
2 )), 3 pulses per axis).
Figure 3. External pilot
Page 1 of 4
