STANDARD LEDs
N° LED
1 GREEN ON
2 GREEN BLINKING
3 RED GREEN BLINKING
4 RED GREEN ON

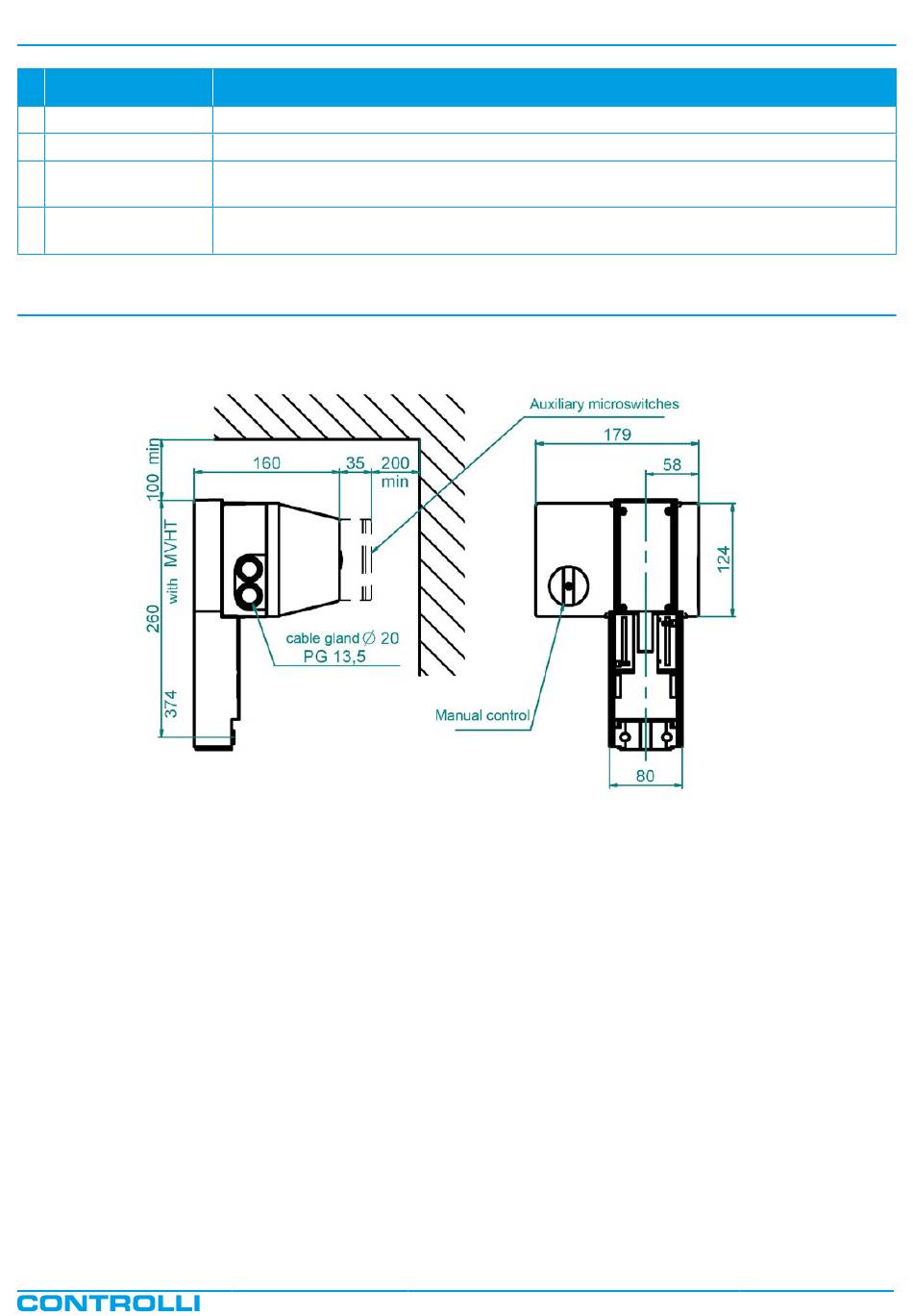

DIMENSIONS [mm]
The actuator arrived at the extreme point of the stroke read
The actuator arrived at the intermediate point of the stroke read
The actuator is reading the stroke or it is going to initial position
Manual control ON, the actuator ignores the control signal.
ATTENTION! The electronic board is electrically supplied
1 Issue 05/2017
st
ACTUATOR STATUS
DBL465e Page 6
