Valve Actuators

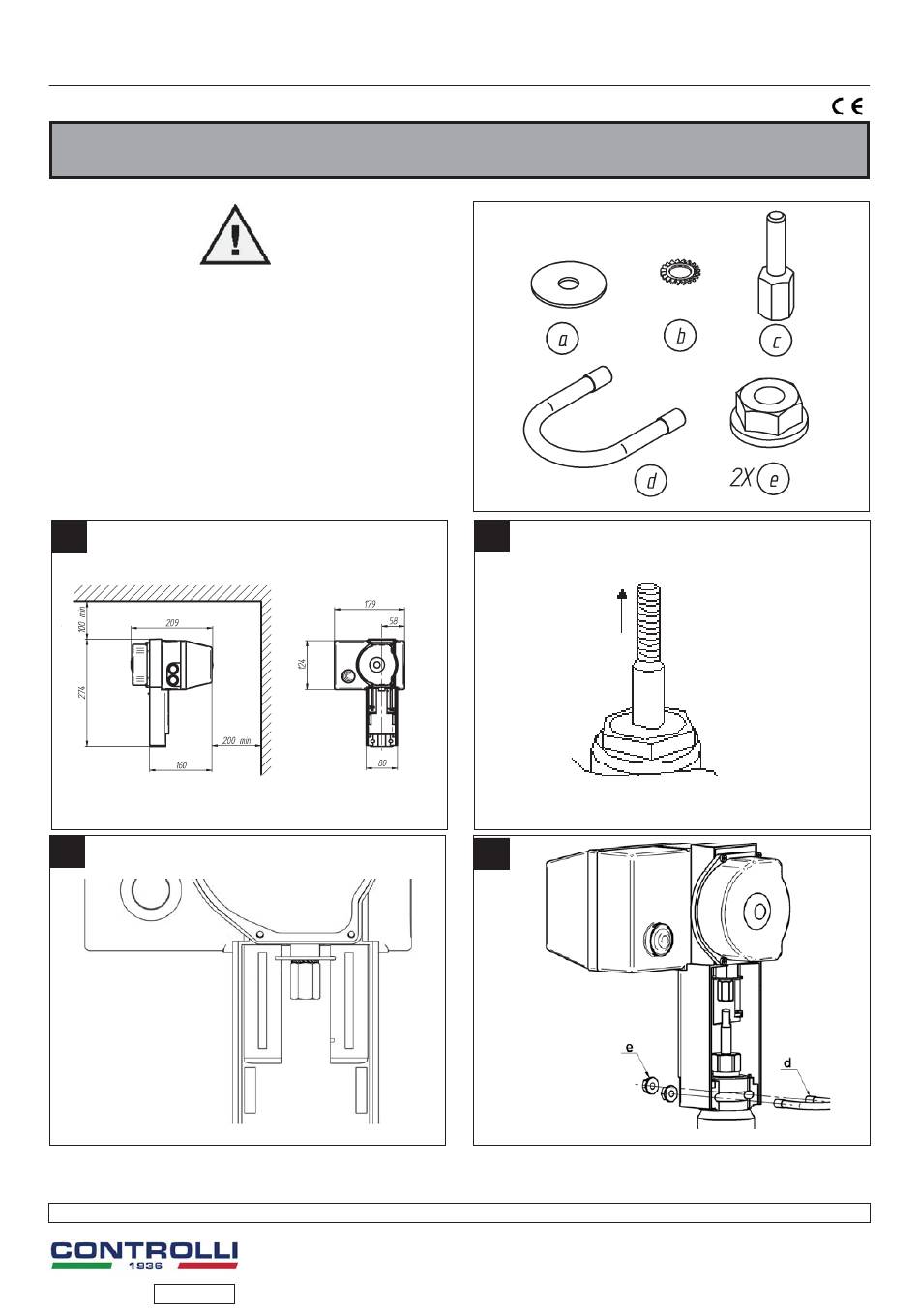

Hot media hazard. Before removing actuator from valve or open-

ing the valve, ensure that the valve control medium is isolated

and remove the pressure. Work should only be carried out by a

competent engineer.

Note: do not use the actuator disassembled from the valve.

Lock the stem extension c on the rack placing the indicator disk

a and the jagged washer b.

1st Issue rev. e

ISO 9001

MOUNTING INSTRUCTIONS

02/13

CONTROLLI S.p.A.

16010 SANT'OLCESE Genova - Italy

Tel.: +39 01073061

E-mail: info@controlli.eu

Assemble the actuator to the valve by U-bolt and the two nuts

with the washer without locking the nuts.

Fax: +39 0107306870/871

Web: www.controlli.eu

MVHFA

DIM152e

Need help?

Do you have a question about the MVHFA and is the answer not in the manual?

Page 1 Valve Actuators MVHFA MOUNTING INSTRUCTIONS Hot media hazard. Before removing actuator from valve or open- ing the valve, ensure that the valve control medium is isolated and remove the pressure. Work should only be carried out by a competent engineer.
Page 2 - Raise the valve stem - Remove the cover and rotate the pivot clockwise so that the rack comes out for assembling it with the valve stem; the pivot can be locked by a spanner as shown in the picture - Rotate the actuator to screw the extension on the valve stem, so lock it tightening the nut on the stem.
Page 3 2-10 Vdc 0-5 Vdc Floating Proportional – – – 0-10 2-10 (MOD) (MOD) 1-5, 4-7 6-9, 8-11 (SEQ) (SEQ) 1 (4) 5 (7) 6 (8) 9 (11) 60 s 300 s (INC) (INC) 60 s 300 s NORM 1st Issue rev. e 02/13 DIM152e ISO 9001...
Page 4 NORM LIN/LG Closing direction of the valve 10 V 1st Issue rev. e 02/13 DIM152e ISO 9001...
Page 5 1 Feedback signal — 2-10 / 0-5 Vdc With modulating control, the running time MVHFA actuators are equipped with a 2 is always 15 s / 20 s / 30 s. the end position adjustment must be -10 and 0-5Vdc position feedback signal done again (see point 9).
