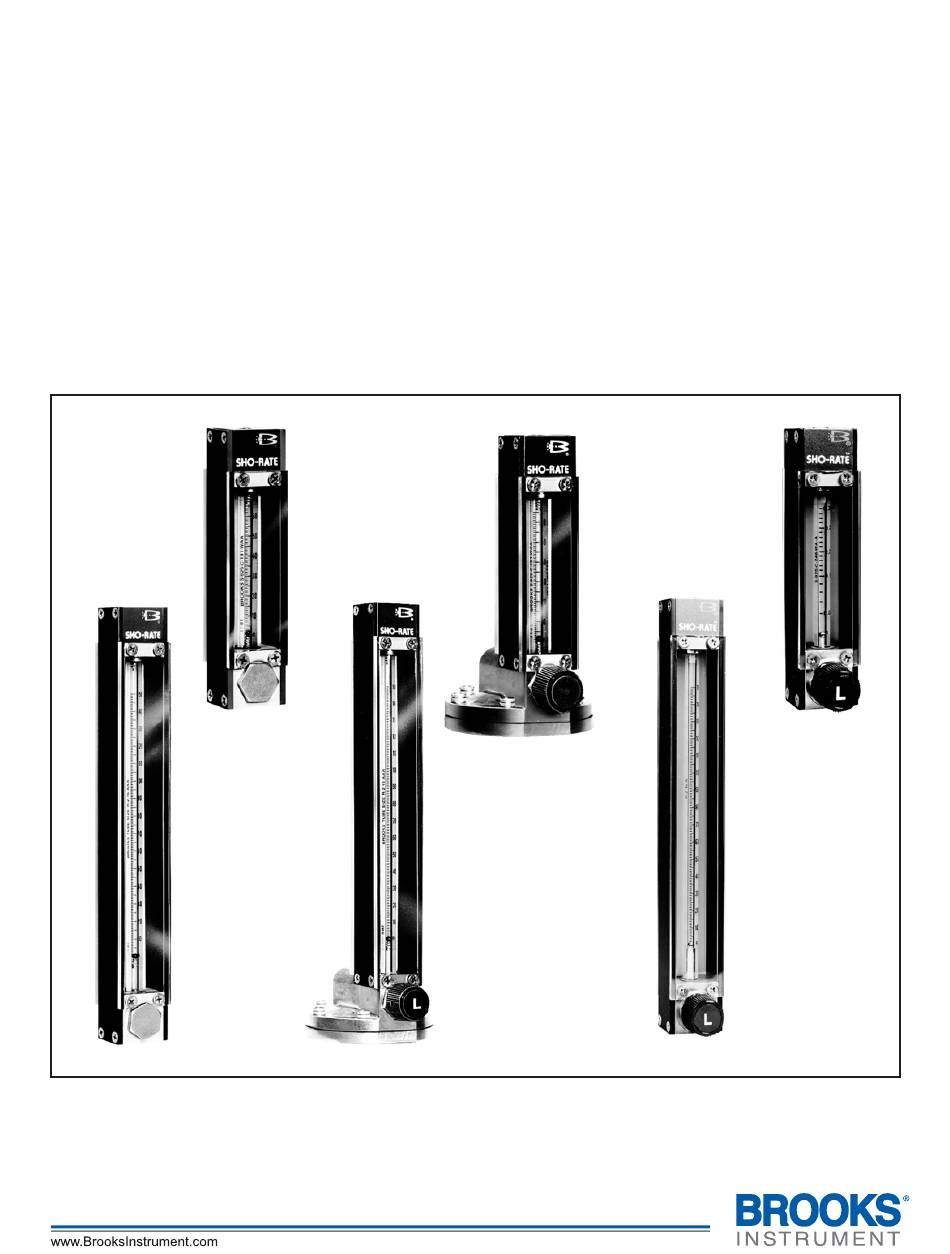

Installation and Operation Manual
X-VA-1350E-eng
Part Number: 541B082AAG
February, 2011
TM

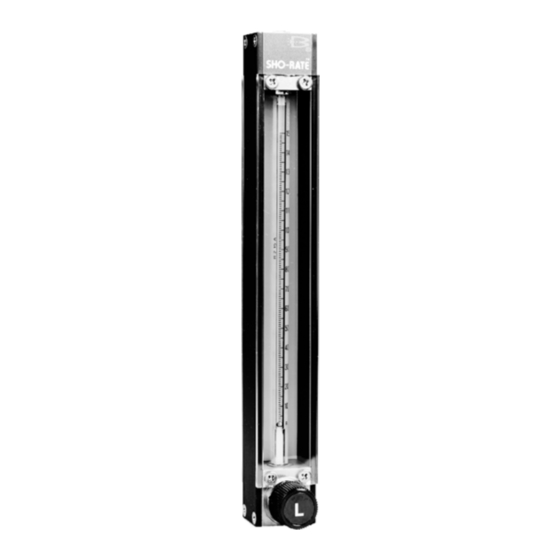

Sho-Rate
TM
Sho-Rate
Sizes 2-6
Model 1350E
Sho-Rate "50"
(no valve)
Model 1355E
Sho-Rate "150"
(no valve)
"50" Model 1350E and
"150" Model 1355E
Model 1350E
Sho-Rate "50"
With optional Integral
flow controller
With optional Integral
Models 1350E and 1355E
Model 1355E
Sho-Rate "150"
flow controller
Model 1350E
Sho-Rate "50"
With optional
needle valve
Model 1355E
Sho-Rate "150"
With optional
needle valve
Advertisement
Table of Contents
Related Manuals for Brooks Sho-Rate 1350E
Summary of Contents for Brooks Sho-Rate 1350E
- Page 1 Installation and Operation Manual X-VA-1350E-eng Part Number: 541B082AAG Models 1350E and 1355E February, 2011 Sho-Rate "50" Model 1350E and Sho-Rate "150" Model 1355E Sizes 2-6 Model 1350E Model 1350E Model 1350E Sho-Rate "50" Sho-Rate "50" Sho-Rate "50" With optional With optional Integral (no valve) needle valve flow controller...
- Page 2 Read before proceeding! Brooks Instrument designs, manufactures and tests its products to meet many national and international standards. These products must be properly installed, operated and maintained to ensure they continue to operate within their normal specifications. The following instructions must be adhered to and integrated into your safety program when installing, operating and maintaining Brooks Instrument products.
- Page 3 We appreciate this opportunity to service your flow measurement and control requirements with a Brooks Instrument device. Every day, flow customers all over the world turn to Brooks Instrument for solutions to their gas and liquid low-flow applications. Brooks provides an array of flow measurement and control products for various industries from biopharmaceuticals, oil and gas, fuel cell research and chemicals, to medical devices, analytical instrumentation, semiconductor manufacturing, and more.
- Page 4 Installation and Operation Manual X-VA-1350E-eng Part Number: 541B082AAG Models 1350E and 1355E February, 2011 THIS PAGE WAS INTENTIONALLY LEFT BLANK...
-
Page 5: Table Of Contents
Number Number Typical Flowmeter Installation ........................2-3 Dimensions - Sho-Rate 1350E ........................2-4 Dimensions - Sho-Rate 1350E and 1355E with Integral Controller ............2-5 Dimensions - Sho-Rate 1355E ........................2-6 Parts Drawing Sho-Rate Models 1350E and 1355E .................. 5-2 Tables... - Page 6 Contents Installation and Operation Manual X-VA-1350E-eng Part Number: 541B082AAG Models 1350E and 1355E February, 2011 THIS PAGE WAS INTENTIONALLY LEFT BLANK...
-
Page 7: Section 1 Introduction
Section 1 Introduction Installation and Operation Manual X-VA-1350E-eng Part Number: 541B082AAG Models 1350E and 1355E February, 2011 1-1 Description The Sho-Rate Flowmeters are variable area, glass tube, flow rate indicating meters. The basic elements are a tapered glass metering tube and a metering float. - Page 8 Section 1 Introduction Installation and Operation Manual X-VA-1350E-eng Part Number: 541B082AAG Models 1350E and 1355E February, 2011 Flow Meter Assembly Scales 1350 Series: Length: 65 mm, nominal Graduations: Standard: R-65mm, or R-100 linear reference scale with air or water calibration table. 1355 Series: Length: 150mm, nominal Graduations: Standard: R-150 mm, or R-100 linear reference scale with air...
- Page 9 Section 1 Introduction Installation and Operation Manual X-VA-1350E-eng Part Number: 541B082AAG Models 1350E and 1355E February, 2011 Table 1-1 Capacities for Sho-Rate Model 1350E Rib Guided Tubes, Spherical Floats RIBBED TUBES, SPHERICAL FLOATS METER TUBE FLOAT MAXIMUM FLOW RATE SIZE MATERIAL WATER AIR*...
-
Page 10: Optional Equipment
For more details on the needle valve go to our website: BrooksInstrument.com, select Documentation, Precision Valves & Flow Controllers, select Brooks-Line IV, CART, 8503 or 8504 valves. Flow Contollers Flow controllers can be supplied integrally mounted to the inlet or outlet of the instrument. - Page 11 Section 1 Introduction Installation and Operation Manual X-VA-1350E-eng Part Number: 541B082AAG Models 1350E and 1355E February, 2011 Table 1-5 Capacities for Sho-Rate Model 1355E Rib Guided Tubes, Spherical Floats CAPACITIES (RIB GUIDE TUBES, SPHERICAL FLOATS) - FOR USE WITH 1355 SERIES ONLY MAXIMUM FLOW RATE * MODEL CODE - SCALE ON TUBE METER...
- Page 12 Section 1 Introduction Installation and Operation Manual X-VA-1350E-eng Part Number: 541B082AAG Models 1350E and 1355E February, 2011 THIS PAGE WAS INTENTIONALLY LEFT BLANK...
-
Page 13: Section 2 Installation
In the event that the meter is damaged during shipment, the Product Service Department, Brooks Instrument,LLC, Hatfield, PA 19440 should be contacted to obtain a return shipment form. Brooks Instrument 407 W. -
Page 14: Return Shipment
E-mail: BrooksEu@BrooksInstrument.com 2-4 Recommended Storage Practice If intermediate or long term storage is required for equipment, as supplied by Brooks Instrument, it is recommended that said equipment be stored in accordance with the following: a. Within the original shipping container. -
Page 15: Installation (See Fiugres 2-1, 2-2, 2-3, 2-4 And 2-5)
Section 2 Installation Installation and Operation Manual X-VA-1350E-eng Part Number: 541B082AAG Models 1350E and 1355E February, 2011 2-5 Installation (See Figures 2-1, 2-2, 2-3, 2-4 and 2-5) The flowmeter should be mounted within 6° of true vertical. The inlet connection to the flowmeter is in the bottom end fitting. The connections are normally horizontal, female NPT. - Page 16 Section 2 Installation Installation and Operation Manual X-VA-1350E-eng Part Number: 541B082AAG Models 1350E and 1355E February, 2011 Model 1350E-V (Valve Inlet) (Cartridge Open) Model 1350E-VB (Valve Inlet with Aluminum Bezel) (Cartridge Open) Inches/Milimeters Figure 2-2 Dimensions - Sho-Rate 1350E...
-
Page 17: Dimensions - Sho-Rate 1350E
(2 HOLES) OUTLET [51.0] [54.0] CONN. PLASTIC 1350+1355 SHIELDING 1.12 SHO-RATE DET. SCALE 28.6 SHOWN (OPTIONAL) Model 1350E-8900 INLET CONN. 1.00 (Controller on Outlet) 25.4 [3.0] 1.25 12.7 31.8 Figure 2-3 Dimensions - Sho-Rate 1350E & 1355E with Integral Flow Controller... -
Page 18: Dimensions - Sho-Rate 1355E
Section 2 Installation Installation and Operation Manual X-VA-1350E-eng Part Number: 541B082AAG Models 1350E and 1355E February, 2011 Model 1355E-V (Valve Inlet ) 8.81 (Cartridge Open) 8.81 Model 1355E-VB (Valve Inlet with Aluminum Bezel) (Cartridge Open) Inches/Milimeters Figure 2-4 Dimensions - Sho-Rate 1355E... -
Page 19: Section 3 Operation
Section 3 Operation Installation and Operation Manual X-VA-1350E-eng Part Number: 541B082AAG Models 1350E and 1355E February, 2011 -1 Operation After the flowmeter has been installed in the flow system, it is ready for operation. An optional built-in needle control valve may be provided to control the flow through the flowmeter. - Page 20 Section 3 Operation Installation and Operation Manual X-VA-1350E-eng Part Number: 541B082AAG Models 1350E and 1355E February, 2011 THIS PAGE WAS INTENTIONALLY LEFT BLANK...
-
Page 21: Section 4 Maintenance
Section 4 Maintenance Installation and Operation Manual X-VA-1350E-eng Part Number: 541B082AAG Models 1350E and 1355E February, 2011 4-1 Disassembly and Cleaning It is recommended the user periodically inspect the tube and float, and clean if necessary. Dirt or foreign materials adhering to the tube and float may cause inaccuracy and sticking of the float. - Page 22 Section 4 Maintenance Installation and Operation Manual X-VA-1350E-eng Part Number: 541B082AAG Models 1350E and 1355E February, 2011 THIS PAGE WAS INTENTIONALLY LEFT BLANK...
-
Page 23: Section 5 Parts List
Section 5 Parts List Installation and Operation Manual X-VA-1350E-eng Part Number: 541B082AAG Models 1350E and 1355E February, 2011 5-1 General When ordering parts please specify: Brooks Serial Number Model Number Part Number Description and Quantity (Refer to Figure 5-1 and Table 5-1) -
Page 24: Parts Drawing Sho-Rate Models 1350E And 1355E
Section 5 Parts List Installation and Operation Manual X-VA-1350E-eng Part Number: 541B082AAG Models 1350E and 1355E February, 2011 Figure 5-1 Parts Drawing Sho-Rate Models 1350E and 1355E... - Page 25 Section 5 Parts List Installation and Operation Manual X-VA-1350E-eng Part Number: 541B082AAG Models 1350E and 1355E February, 2011 Table 5-1 Parts List - Sho-Rate Models 1350E and 1355E...
- Page 26 BROOKS SERVICE AND SUPPORT Brooks is committed to assuring all of our customers receive the ideal flow solution for their application, along with outstanding service and support to back it up. We operate first class repair facilities located around the world to provide rapid response and support.
