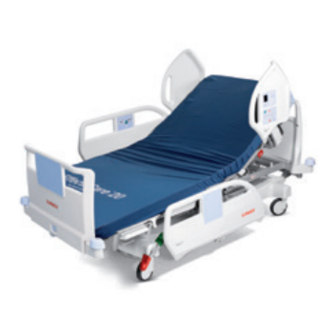

LINET Wissner-Bosserhoff ELEGANZA 4 Service Manual

Positionable bed for intensive care version with scales and without scales
Hide thumbs
Table of Contents

Advertisement

Quick Links

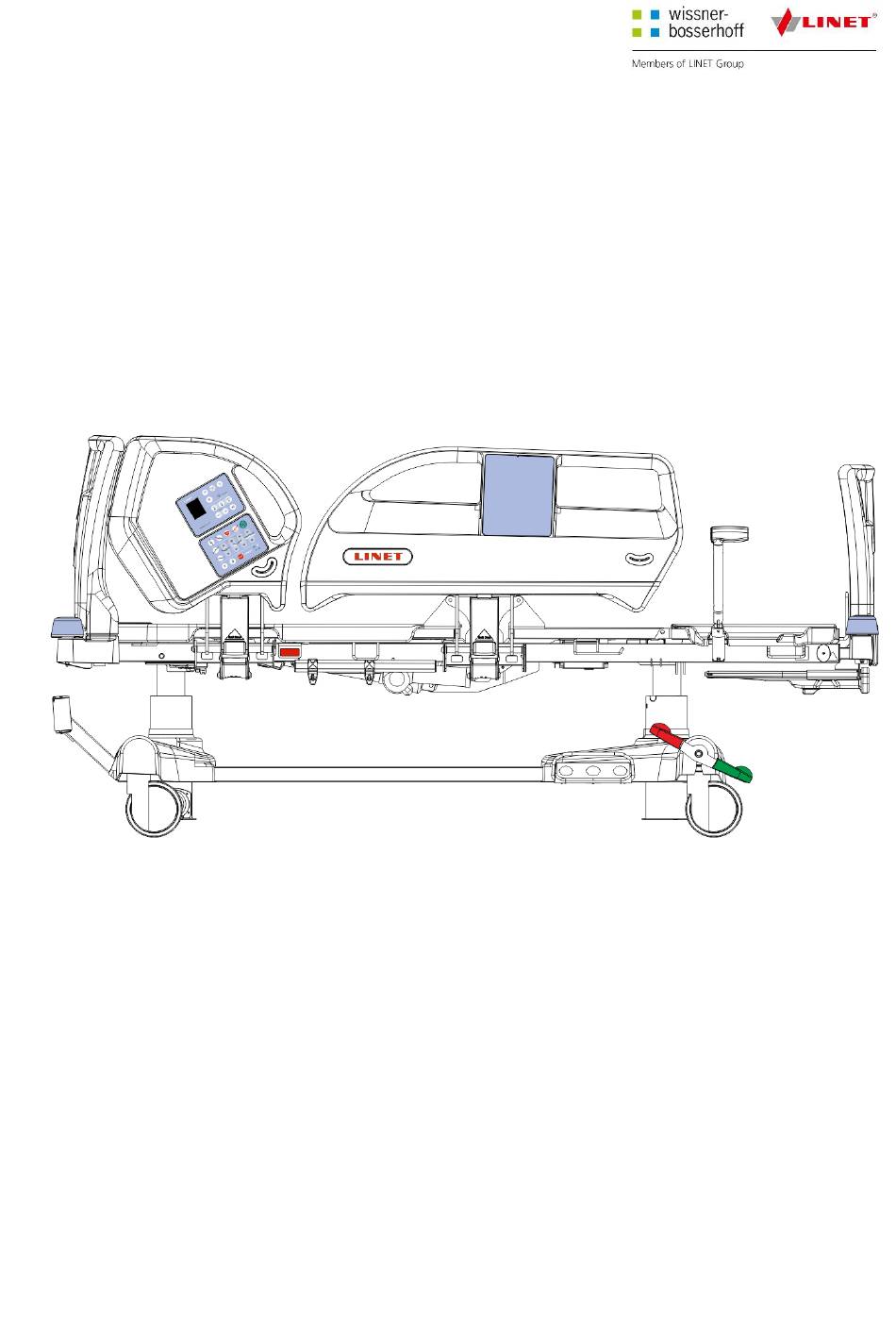

Service Manual
-
ELEGANZA 4
Positionable Bed for Intensive Care
version with scales and without scales
D9S001GE4-0101
Version
03
Publication Date 2019-09

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Wissner-Bosserhoff ELEGANZA 4 and is the answer not in the manual?

Questions and answers

Related Manuals for LINET Wissner-Bosserhoff ELEGANZA 4

Summary of Contents for LINET Wissner-Bosserhoff ELEGANZA 4

  • Page 1 Service Manual ELEGANZA 4 Positionable Bed for Intensive Care version with scales and without scales D9S001GE4-0101 Version Publication Date 2019-09...

  • Page 2: Table Of Contents

    Table of Contents 1 Introduction – General information ................4 Product label and technical label – location ..................4 1.1.1 Product and technical label description ..................4 Identification of bed sides ........................5 2 Technical data and Symbols ................... 6 3 Theory of Operations ......................
  • Page 3 Castors ............................34 Bed Wiring Diagram........................35 4 Bed Diagnostic ......................36 Errors – Failure States ........................36 4.1.1 Pop ups ............................36 4.1.2 LED Blinking statuses ........................37 4.1.3 Beeping - Sound signals ......................37 i-Drive signalisation ...........................38 4.2.1 Audio signalling ..........................38 4.2.2 Light indicators ..........................38 4.2.3 Fault signalisation (i-Drive Power) ....................38 LINIS 39 4.3.1 Description of Linis items displayed on iBoard segment display ..........39...

  • Page 4: Introduction - General Information

    1 Introduction – General information Product label and technical label – location 1.1.1 Product and technical label description 1……… Address of Distributor 2……… Manufacturing Date (Year-Month-Day) 3……… DI (Device Identifier) / GTIN (Global Trade Item Number) 4……… 1D Bar code GS1-128 (Serial Number) 5………...

  • Page 5: Identification Of Bed Sides

    Identification of bed sides 5/57 D9S001GE4-0101...

  • Page 6: Technical Data And Symbols

    2 Technical data and Symbols Follow User Manual for Eleganza 4 (D9U001GE4-0101) to find Technical Data and used Symbols. 6/57 D9S001GE4-0101...

  • Page 7: Theory Of Operations

    3 Theory of Operations The aim of the chapter is to explain the functional principles of sets and individual components of the given LINET product model, and their mutual relations. Control unit The power box and control unit are placed together to the one plastic box.

  • Page 8: Technical Parameters

    3.1.2 Technical parameters Values Parameters AC 230, 100, 110, 127V (±10%) / 50-60 Hz Nominal supply voltage: 2 x tube fuse 5 x 20mm Fuse protection: T1,6A for 230V; T3,15A for 100-127V Maximum performance: internally limited Maximum tolerance of configuration ±20% of current limitation: 3.1.3...
  • Page 9 3.1.5.2 STOP button located on the ACP panel The main STOP button immediately stops all movements of the bed (undesirable movement) and deactivates GO if positioning is not permitted or during failure of electrical components. A 10 kΩ resistor is connected in parallel to the STOP button inside the keypad.

  • Page 10: Saved Values

    3.1.5.8 Detecting overload While monitoring current drawn by the motor units, the electronics stabilise the maximum current and thus partially limit start-up current peaks. If a constant current overload is detected, movement is halted after approximately 1 second. 3.1.5.9 Thermal protection Built-in thermal protection signals temperature exceeded in the internal cooler and near the switching transistors (approx.

  • Page 11: Rechargeable Battery

    Rechargeable battery Input/output voltage 24 V DC Class II IP65 Maximum charging time 24 hours Type Lead-acid Lead hermetic rechargeable batteries 2x12V/1.2 Ah are connected in series in a plastic housing, protected by a 15 A fuse. The plastic housing is inserted in a control unit box. The rechargeable batteries serve as an emergency backup power source for the bed while it is disconnected from the mains electricity or during transport.

  • Page 12: Head Side Rails

    Head side rails The head side rails are at the sides of the head section of the bed's mattress platform rear section. 3.3.1 iBoard Basic The iBoard Basic control panels are a basic control elements. They provide for configuration of bed functions, and control, display of the weighing system and bed exit alarm.

  • Page 13: Integrated Attendant Control Panel

    3.3.3 Integrated Attendant control panel It is connected to the control unit via a 14-core cable terminated by a 13-pin DIN connector. The ACP panel is connected to the Plug&Play connector which is located under the head siderails. The ACP is fitted with STOP button. The supervisor control panel contains a lock to block individual functions of the control unit, indicator lights for the mode and condition of the rechargeable battery, a selection of special functions, and settings for standard positions of the bed.
  • Page 14 Siderail Cables Number Description iBoard Basic Cable (Left, Right) Foot Siderail Control Cable 14/57 D9S001GE4-0101...

  • Page 15: Supervisor Control Panel (Acp)

    Supervisor control panel (ACP) In case the bed is not equipped with integrated ACP in head siderail the bed is with standard Supervisor control panel. It is connected to the control unit via a 14-core cable terminated by a 13-pin DIN connector. The ACP panel is connected directly to the control unit.

  • Page 16: Left And Right Side Rail Limit Switches (Emr Ready Only)

    3.7.1 Left and right side rail limit switches (EMR ready Only) The limit switches serve to detect the current position of the side rails. If the side rail is in the up position, the limit switch is pressed via the mechanism of the side rails and a signal is sent to the integration module and vice versa. Limit switches are not separately connected, Left and right limit switches are in serie.

  • Page 17: Weighing Sensor (Tensometer)

    Weighing sensor (tensometer) According to the load, the electrical resistance in the weighing sensor changes. The change is transmitted immediately to the weighing module, which processes the values. There are four weighing sensors (tensometers) on the bed – 2 at the feet and 2 at the head. They are secured using eight screws (6±2 Nm). The weighing sensors are connected to the weighing module by a 4-core shielded cable.
  • Page 18 Weight module and tensometers (S6015189ND) 18/57 D9S001GE4-0101...

  • Page 19: Integration Module

    Integration module The integration module serves as the bed's communication centre. It contains Ethernet and Wi-Fi communication interfaces, via which it transmits data to the server about the operation of the bed. The integration module is connect to the control unit. The data from the sensors on the bed and other peripherals are loaded via the following interfaces: More information about Safety monitor find in separated Safety monitor service manual.

  • Page 20: Emr Ready Solution

    EMR ready solution Mattress platform actuators Position Description Backrest linear actuator Thighrest linear actuator Mattress platform actuators 20/57 D9S001GE4-0101...

  • Page 21: Backrest Actuator

    3.12.1 Backrest actuator The back motor lifts the bed's back mattress platform. It is connected to the construction using two pins and secured with starlock washers. The back motor contains mechanical unblocking. The head of the motor is connected to the CPR lever by a steel cable.

  • Page 22: Lift Drives - Columns

    Lift drives - Columns The lift unit does not have limit switches. It is connected by a cable with an eight-pin connector. The maximum current consumption is 5.5A and maximum working voltage is 24V. The value of the consumed current and supply voltage is displayed at LINIS.

  • Page 23: Undercarriage Module (Um)

    Undercarriage module (UM) The undercarriage module (hereinafter UM) allows all peripherals located on the undercarriage to be controlled and integrates the control of these peripherals via the control unit. The UM is connected to the control unit by a 4-core communication cable with Molex connectors. This cable carries power and digital data simultaneously.

  • Page 24: Undercarriage Module - Basic

    Undercarriage module – Basic The bed with basic equipment (e.g. without iBrake, Anticrash, etc.) is equipped with elementary undercarriage module. The output from undercarriage module is molex connector which is connected to the column and after to control box. Foot controller (height setting) The foot controller for height setting is a paired component of the bed.

  • Page 25: I-Brake

    I-Brake The I-Brake is a device allowing automatic braking of unbraked beds after they have been connected to the mains. I-Brake automatically brakes a bed within 60 s after it has been connected to the mains. If the brake is deactivated mechanically (for example, during cleaning), the system brakes the bed again.

  • Page 26: Night Illumination

    Night illumination The control unit allows a pair of illuminating "white" LEDs to be connected, ensuring illumination of the mattress platform. The night illumination (LEDs) are connected via a ribbon cable to the control unit. Safe Stop (Anticrush) Safe Stop prevents user of the bed from injuries due to crushing by the lowered Mattress Platform. When obstacle occurs on the undercarriage and Mattress Platform is going down, the motion is automatically stopped.

  • Page 27: I-Drive - Driven 5Th Castor

    i-Drive - Driven 5th castor The bed may be fitted with a driven i-Drive Power wheel to help hospital personnel move a bed with a patient on it while applying only minimum force. The driven castor i-Drive Power is located in the middle of the bed’s undercarriage. Using the i-Drive’s servo mechanism, the i-Drive is lifted according to the operator’s need or dropped and forced against the floor in a way that it is possible to use the castor's torque to make it easier to move the bed in a straight direction.

  • Page 28: I-Drive Control Panels

    3.20.3 i-Drive control panels The i-Drive is activated by the activation panel, which is on the bed’s undercarriage and protrudes from the cover of the undercarriage. Activation panel of i-Drive with buttons ON (activation of i-Drive is active for 3 minutes, extension from last selected function) and button OFF for lifting the driven castor.

  • Page 29: Emergency Button To Retract The I-Drive

    3.20.4 Emergency button to retract the i-Drive The emergency button for lifting the driven castor serves as a safety feature in situations where, for example, the standard button for lifting stops functioning or the I-Drive battery is fully discharged. The button is in the middle of the control unit fixed on a holder.

  • Page 30: Correction Of Voltage On I-Drive

    3.20.7 Correction of voltage on i-Drive The voltage on the driven castor is corrected both to protect and for greater ease of use. To protect the i-Drive, its voltage is corrected so that the current does not exceed approximately 29 A. For more direct movement over an inclined surface, the voltage is corrected according to the tilt of the bed measured by the accelerometer.
  • Page 31 i-Drive Power - connection scheme 31/57 D9S001GE4-0101...
  • Page 32 Position Description 2 (Position in Control Unit) Power Supply Cable 4 (Position in Control Unit) Activation Box Cable 5 (Position in Control Unit) Servo Lifting Cable 6 (Position in Control Unit) Brake Cable 11 (Position in Control Thermal Sensor Cable Unit) 13 (Position in Control Castor Control Position Cable (with Sensor)

  • Page 33: Mechanical 5Th Castor

    Mechanical 5th castor Position Description 5th castor, foot controled Distance washer, Fe,Zn-Cr,d6.4 D18 T1.6 DIN 9021 Screw, Fe,Zn-Cr,M6 L20 DIN 7500C,TORX screw,Fe,Zn,M6 L20 DIN 912,VAL Hex Nut, M 6 . DIN 985 spring;D9 T0.8 L80|DIN 17242 Plastic, distance washer,d6.5 D12 T1 starlock,Fe, d6 33/57 D9S001GE4-0101...

  • Page 34: Castors

    Castors Antistatic castor Castor with lock Castors Central Castor Control 34/57 D9S001GE4-0101...

  • Page 35: Bed Wiring Diagram

    Bed Wiring Diagram 35/57 D9S001GE4-0101...

  • Page 36: Bed Diagnostic

    4 Bed Diagnostic Errors – Failure States 4.1.1 Pop ups Pop-Up Meaning Action required Activate function by unlocking Function locked respective lock Press GO button to activate keypad or Activation required touchscreen OVERLOAD Remove weight; Check scales Safe Working Load exceeded (Tensometers, scale module) BLOCK Locked kg / lb switch...

  • Page 37: Led Blinking Statuses

    4.1.2 LED Blinking statuses Service / status LED status Mains Battery Thigh Lock Back rest Lift lock Foot controls lock lock Locked Illuminated Illuminated Illuminated Illuminated Short circuit Blinking Blinking Blinking Blinking Blinking 600ms ON, 600ms ON, 600ms ON, 600ms ON, 600ms ON, 600ms OFF 600ms OFF...

  • Page 38: I-Drive Signalisation

    i-Drive signalisation 4.2.1 Audio signalling  Emergency stop Continuous - 0.5 second  Limiting conditions for starting the bed after switching on touch sensor connection to mains, braked castors, or driven castor up)  Braked castors after pressing movement buttons ...

  • Page 39: Linis

    LINIS iBoard Basic - To enter LINIS mode simultaneously press (5s) BEA Inner zone + BEA Outer zone Navigation by (ZERO)/(HOLD) buttons. Exit by CLEAR button. 4.3.1 Description of Linis items displayed on iBoard segment display LINIS Code Description Values AD COL0 AD potentiometer column 0 -----...

  • Page 40: Stop Codes

    4.3.2 Stop codes Stop codes Code Reason foot control pressed after STOP display button pressed after STOP two buttons pushed simultaneously longer than 1 second keyboard not released after system start main control box temperature exceeded column current overload 0 column current overload 1 actuator current overload –...

  • Page 41: Operation Codes

    4.3.3 Operation codes Operation codes Code Function No function is activated Foot control - Height adjustment – down Autocontour – down Examination position Lock – legs Foot control - Height adjustment – up Lock – backrest Lock – height adjustment Lock - pedals Thighrest –...

  • Page 42: Bed Setup

    5 Bed Setup Column and accelerometer calibration After replacing always calibrate: a) Any column. b) Control box. c) Accelerometer (iBoard Basic) d) Any iBoard Basic Calibration of columns means: Calibrating the speed of the columns during up or down movement. Calibration of accelerometers means: Calibrating the mattress platform, backrest and calfrest accelerometers in the horizontal position.

  • Page 43: Scale Calibration -Iboard Basic Version

    Scale Calibration –iBoard Basic version 5.3.1 Introduction 5.3.1.1 EU/US version The display shows the load value. This can be adjusted to the required value by using the ZERO/T or HOLD functions. If the value is negative, the first segment shows a minus sign. If the value is lower than -5.0kg (11.0 lb), the display shows “Lo”.

  • Page 44: Scale Calibration

    5.3.2.2 Display test Press the SPEAKER LEVEL button to turn the display test ON/OFF – colour lines display 5.3.3 Scale calibration In this mode it is possible to set the sensor constant, geographical zones and calibration constants. CAUTION!!! Only an authorised person may enter this mode. Each entry into the constants setup changes the calibration counter in the internal memory, and the weighing system is not regarded as a verified measuring instrument any more.
  • Page 45 The ,,CAL’’ position displays the calibration constant. 45/57 D9S001GE4-0101...

  • Page 46: Calibration Constant Setting

    5.3.5 Calibration constant setting Before setting the calibration constant, the technician needs to set the local geographical zone. The technician can set the final customer’s geographical zone after the scale calibration is finished. When in Constant setting mode:  Go to calibration mode – Simultaneously press HOLD, CLEAR, ZERO and SPEAKER LEVEL ...

  • Page 47: 5.3.6 Reconfiguring The Sensor Constants

    5.3.6 Reconfiguring the sensor constants EU version: EU version of the bed is with the button 0,1/0,5 US version: US version of the bed is without the button 0,1/0,5, it needs to calculate with actual displayed value 5.3.6.1 Location of the tensometers on the bed ...
  • Page 48 5.3.6.3 Calculating and saving the new sensor constant - sensor 1: sensor 1:  EU version: Press the button 0,5/0,1 87,5 �������������� ����������  × ������������ �� ���������������� = ������ ���������������� ���������� ���� �������� ������������ (��������) Write the new constant value to the position of sensor 1 ����, ��...
  • Page 49 5.3.6.4 Positioning the weights for sensors 2 (head left sensor) 49/57 D9S001GE4-0101...
  • Page 50 5.3.6.5 Calculating and saving the new sensor constant - sensor 2: sensor 2:  EU version: Press the button 0,5/0,1 87,5 ������������������ ����������  × ������������ �� ���������������� = ������ ���������������� ���������� ���� �������� ������������ (��������) Write the new constant value to the position of sensor 2 ����, ��...
  • Page 51 5.3.6.6 Positioning the weights for sensor 3 (left foot sensor) 51/57 D9S001GE4-0101...
  • Page 52 5.3.6.7 Calculating and saving the new sensor constant - sensor 3: sensor 3:  EU version: Press the button 0,5/0,1 87,5 ������������������ ���������� × ������������ �� ���������������� = ������ ���������������� ���������� ���� �������� ������������ (���� ����) Write the new constant value to the position of sensor 3 ����, ��...
  • Page 53 5.3.6.8 Positioning the weights for sensor 4 (right foot sensor) 53/57 D9S001GE4-0101...
  • Page 54 5.3.6.9 Calculating and saving the new sensor constant - sensor 4: sensor 4:  EU version: Press the button 0,5/0,1 87,5 ������������������ ���������� × ������������ �� ���������������� = ������ ���������������� ���������� ���� �������� ������������ (���� ����) Write the new constant value to the position of sensor 4 ����, ��...

  • Page 55: Multizone Bed Exit Alarm Calibration

    Multizone Bed Exit Alarm Calibration Calibrate multizone Bed Exit Alarm as follows:  Ensure the bed is empty and in horizontal position (without mattress, patient or any accessories).  Enter to the calibration mode (Simultaneously press HOLD + BED EXIT OUTER ZONE + SPEAKER LEVEL) ...

  • Page 56: Service Tools

    6 Service Tools List of tools and equipment needed for servicing the bed Tools Socket set Screwdriver set Engineer‘s wrench set Hex key bit set Torx bit set Hex key set Knife Set of pliers Torque wrench Hammer, nylon hammer Tape measure Crimping tool for RJ connectors Multimeter...
  • Page 57 Related links: www.linet.com D9S001GE4-0101 Version: 03 Publication Date: 2019-09 Copyright © LINET, s. r. o., 2019 Translation © LINET, s. r. o., 2019 All rights reserved. Use this Service Manual in combination with User Manual for Eleganza 4 (D9U001GE4-0101). All trademarks and brands are the property of the appropriate owners. The manufacturer reserves the right to changes in the contents of this manual that relate to the product´s technical regulations.
