7. Construction

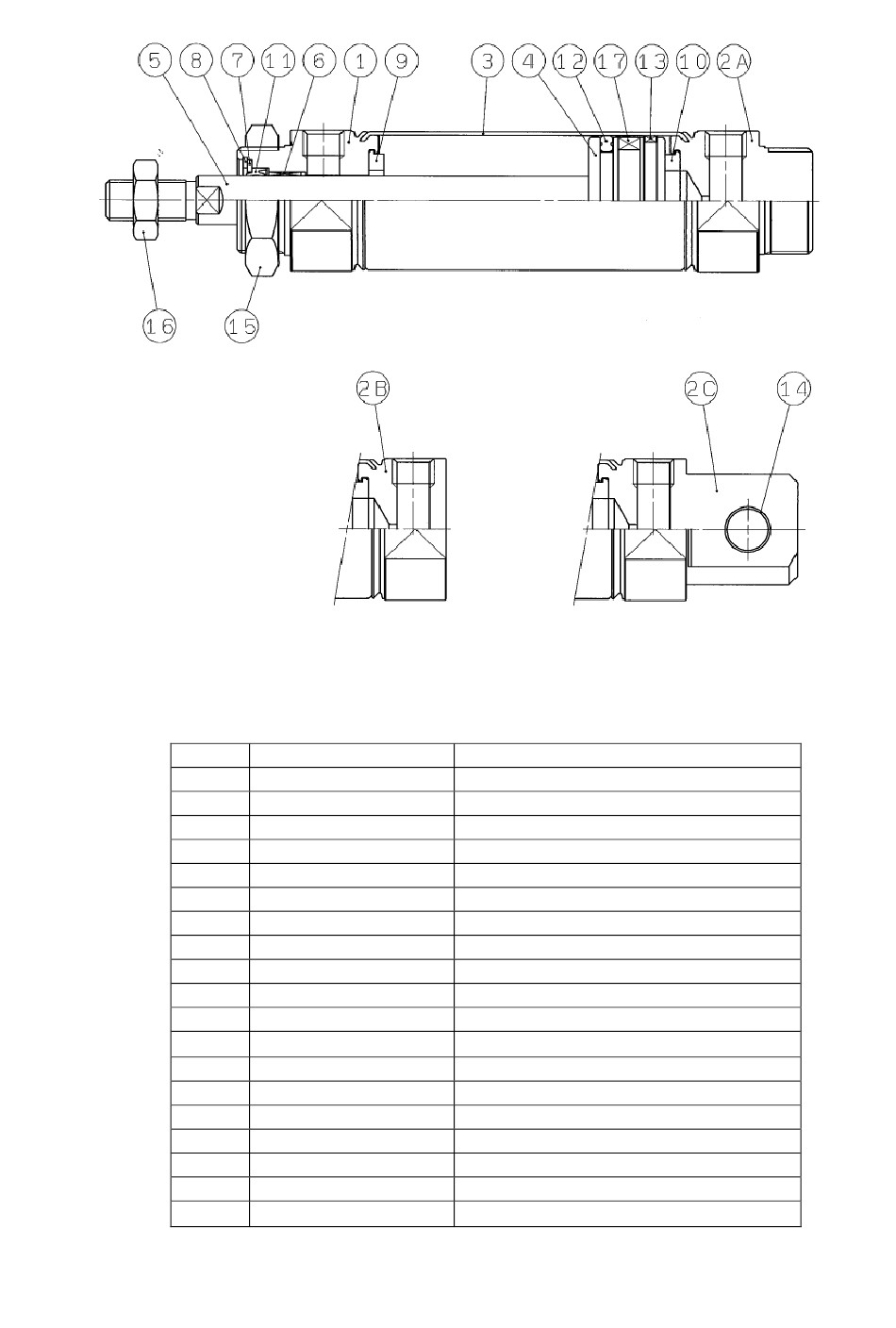

Fig. 6 Standard product: Double acting/single rod
No.
1
2A
2B
2C
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Description
Rod cover
Head cover A
Head cover B
Head cover C
Cylinder tube
Piston
Piston rod
Bushing
Seal retainer
Retaining ring
Bumper A
Bumper B
Rod seal
Piston seal
Wear ring
Bushing for clevis
Mounting nut
Rod end nut
Plastic magnet
For Basic type
For Boss-cut type
For Integral clevis type
φ25 or larger：The same as bumper A
For CDM2
- 26 -
