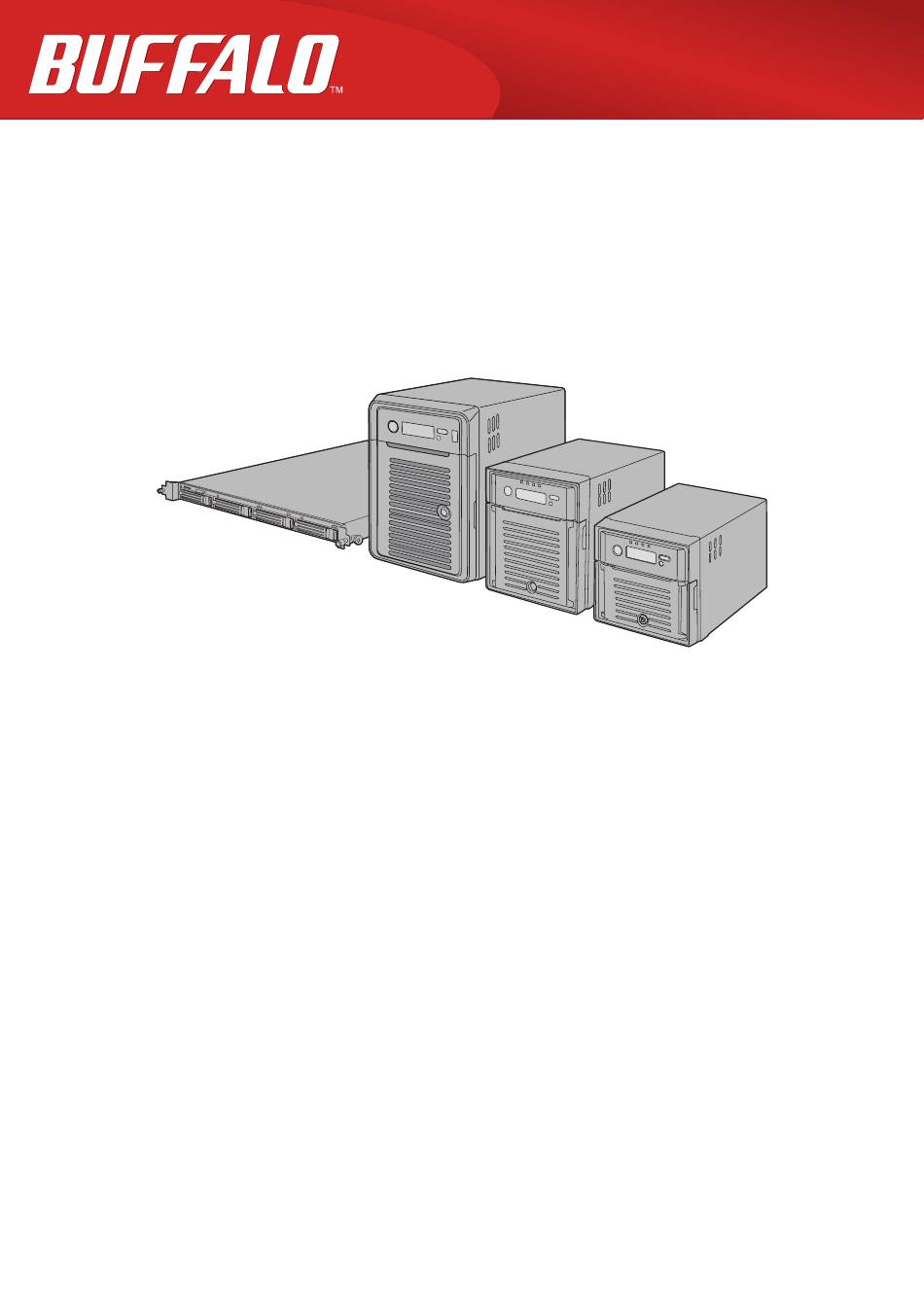

Network Attached Storage
TeraStation WSS 5000R2 and 5000N2
User Manual
Please make sure to read this manual before using and follow the procedures. If you have any inquiries about
the product, contact the number on the warranty statement or the packing box. Do not discard this manual, the
warranty statement, or the packing box.
Americas: www.buffaloamericas.com
Europe: www.buffalo-technology.com
Asia Pacific: www.buffalo-asia.com
35020333-16
February, 2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TeraStation WSS 5000R2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Buffalo TeraStation WSS 5000R2

Summary of Contents for Buffalo TeraStation WSS 5000R2

  • Page 1 Network Attached Storage TeraStation WSS 5000R2 and 5000N2 User Manual Please make sure to read this manual before using and follow the procedures. If you have any inquiries about the product, contact the number on the warranty statement or the packing box. Do not discard this manual, the warranty statement, or the packing box.

  • Page 2: Table Of Contents

    Chapter 3 Windows Update ........10 Windows Update ................10 Chapter 4 Preinstalled Software ........ 11 RAID Builder .................. 11 Buffalo Dashboard ................ 12 Email Notification ................. 13 Buffalo Replication ............... 14 TeraStation Backup & Replication Folder Settings ..... 15 Display Settings ................
  • Page 3 Back Up in Windows Storage Server ..........39 Preparing a Backup Destination .............39 Recovering Backup Data .................45 Replication ..................49 Buffalo Replication ..................49 DFS Replication ..................52 Chapter 7 Settings ............76 Date and Time ................76 Server Name, Workgroups, and Domains ........76 Changing the Password ..............
  • Page 4 Chapter 8 Utilities ............98 NAS Navigator2 for Windows ............98 Changing the IP Address ...............100 NAS Navigator2 for Mac ............. 101 Changing the IP Address ...............103 NovaBACKUP ................103 Chapter 9 Appendix ..........104 LCD Panel ..................104 Modes .....................104 Errors and Status ..................104 Default Settings ................
  • Page 5 For Customers in China ............... 116 For Customers in Taiwan ............. 116 For Customers in Korea ............... 116...

  • Page 6: Chapter 1 Getting Started

    Chapter 1 Getting Started Diagrams WS5200DN2, WS5200DR2 2 3 4 5 13 14 15 16 17 18 WS5400DN2, WS5400DR2 2 3 4 5...
  • Page 7 WS5400RN2, WS5400RR2 22 2 3 4 5 22 13 15 16 17 18 12 WS5600DN2, WS5600DR2 2 3 4 5 Power Button To power on, connect the power cable and wait for 10 seconds, then press the power button. To power off, press the power button.
  • Page 8 UPS Port Connect to a UPS. USB 3.0 Port Compatible Buffalo USB 3.0 hard drives, USB memory devices, digital cameras, and USB UPS devices can be connected. USB hubs are not supported. USB 2.0 Port Compatible Buffalo USB hard drives, USB memory devices, digital cameras, and USB UPS devices can be connected.

  • Page 9: Turning The Terastation On And Off

    UID Button Press the UID button on the front or the back of the unit to cycle the blue LED on and off. Serial Number This sticker shows the TeraStation’s serial number. Link LED Glows amber when the unit is connected to a network. Act LED This LED shows network activity.

  • Page 10: Chapter 2 Remote Desktop

    Chapter 2 Remote Desktop Opening Windows Storage Server To connect Windows Storage Server, follow the procedure below. Note: If using macOS, download and install “Microsoft Remote Desktop” from the Mac App Store. Double-click the icon to start NAS Navigator2. Right-click your TeraStation’s icon and select Open Remote Desktop. For macOS, select the TeraStation’s icon while holding down the control key, then select Open Remote Desktop.

  • Page 11: Chapter 3 Windows Update

    Chapter 3 Windows Update Windows Update For best results, Windows Storage Server should be updated regularly. Use Windows Update as described below. Note: The TeraStation must be connected to the Internet to use Windows Update. From the Windows Storage Server Start menu, click Control Panel - System and Security - Windows Update. Click Check for updates.

  • Page 12: Chapter 4 Preinstalled Software

    Chapter 4 Preinstalled Software RAID Builder RAID Builder is used to create a RAID volume. See the “Managing Storage” section in chapter 5 for more details. To launch RAID Builder, you must be logged in as a member of the Administrators group in Windows Storage Server. Note: This software cannot be accessed by multiple users at the same time.

  • Page 13: Buffalo Dashboard

    Buffalo Dashboard Buffalo Dashboard displays system information and dismounts hard drives. To launch it, double-click the Buffalo Dashboard icon in the system tray. Note: This software cannot be accessed by multiple users at the same time. Before launching it, make sure that it is not being used by another user.

  • Page 14: Email Notification

    Items Descriptions Displays IP addresses, subnet masks, default gateways, LAN port Network Information numbers, and status. I’m here! Causes your TeraStation to beep. Displays the status, drive numbers, names, capacity, and physical sector sizes of each drive. Refresh: Updates the displayed drive information. Dismount Drive: Dismounts a drive for safe removal.

  • Page 15: Buffalo Replication

    Your TeraStation can be synchronized with another TeraStation, replicating most data. See the “Replication” section in chapter 6 for more details. To launch Buffalo Replication, you must be logged in as a member of the Administrators group in Windows Storage Server.

  • Page 16: Terastation Backup & Replication Folder Settings

    TeraStation Backup & Replication Folder Settings Before using it as a backup device on the network, configure your TeraStation in “TeraStation Backup & Replication Folder Settings”. To launch TeraStation Backup & Replication Folder Settings, you must be logged in as a member of the Administrators group in Windows Storage Server.

  • Page 17: Display Settings

    Buffalo device unless it’s entered. To remove a folder from the list of available backup targets, select the folder and click this button.

  • Page 18: Chapter 5 Managing Storage

    Chapter 5 Managing Storage Creating Volumes Volume Types The features of each volume type are explained below. Notes: • To create a RAID volume, use RAID Builder instead of the Disk Management option in Windows Storage Server. • When volumes are deleted or formatted, or the RAID mode is changed, all data stored on the volumes is erased. Before executing these operations, back up any important data.

  • Page 19: Changing The Raid Level Of A Volume

    Spanned Volumes The unallocated areas of multiple hard drives are joined to create a single logical volume. This allows various drive spaces to be combined efficiently. The usable space is equal to the sum of the capacity of the drives. Data cannot be recovered if even a single drive fails.
  • Page 20 Click Disk Management. Right-click the volume that you want to delete and then select Delete Volume. From the Windows Storage Server Start menu, click RAID Builder. Select “Create RAID array” from the drop-down menu and the RAID level under “RAID Mode”. Select the drives to create a RAID volume.
  • Page 21 Click OK. A RAID volume will be created. Next, create a shared folder on the volume as described in chapter 7.

  • Page 22: Creating Simple Volumes (Jbod)

    Creating Simple Volumes (JBOD) In Server Manager, click Tools - Computer Management. Click Disk Management.
  • Page 23 Right-click the volume that you want to delete and then select Delete Volume. All data on the volume will be deleted. Right-click the unallocated area and select New Simple Volume.
  • Page 24 Click Next. Enter the volume size that you want to create and click Next.
  • Page 25 Select Assign the following drive letter and click Next. Select Format this volume with the following settings and Perform a quick format and click Next. A simple volume will be created. Next, create a shared folder on the volume as described in chapter 7.

  • Page 26: Deleting Volumes

    Deleting Volumes If the volume shows the status “Failed”, two or more volumes have been corrupted. In such a case, data on the volume can no longer be recovered. In Server Manager, click Tools - Computer Management. Click Disk Management.

  • Page 27: Formatting Volumes

    Right-click the volume labeled “Failed” and click Delete Volume. Formatting Volumes In Server Manager, click Tools - Computer Management.
  • Page 28 Click Disk Management. Right-click the volume that you want to format and select Format.

  • Page 29: Hard Drive Replacement Procedure

    Red if a drive has failed. Status LEDs Green: Normal operation. Glowing red: If a drive’s status LED is glowing red, the drive has malfunctioned. Dismount the drive in Buffalo Dashboard before unplugging it from the TeraStation. Notes: • Do not unplug a drive whose status LED is not lit red. If you remove the drive without properly dismounting it, data may be lost or the TeraStation may malfunction.

  • Page 30: A Drive Failure Occurs In Drive 1 Or 2

    A Drive Failure Occurs in Drive 1 or 2 Notes: • If one of the drives in the boot drive fails, repair the mirrored volume of the system area first after replacing the drive. Repairing the volume for the data area first may not always succeed. • If you used Disk Management to mirror the boot drive, the TeraStation will not boot if the drive fails.
  • Page 31 Pull out the drive cartridge and remove it from the TeraStation. Insert the new drive into the empty slot. Slide the drive in with the locking mechanism open.
  • Page 32 Swing the lock back down until it clicks into place. Close the front cover with the included key. Press the power button on the TeraStation to turn it on. Note: If drive 1 is being replaced, the red error LED will light up and “POST ERR: 00D9 Boot from HDD x” will be displayed on the LCD panel.
  • Page 33 Enter the username and password and press the Enter key. Windows Storage Server opens in the remote desktop. Note: The default username and password are “Administrator” and “password”. Click RAID Builder from the Start menu of Windows Storage Server. Select Create or repair a mirrored volume of the system area, check the replaced hard drive, and click OK. When “Drive x will be initialized.
  • Page 34 In Server Manager, click Tools - Computer Management. Click Disk Management. Select the step depending on your reason for a created volume. To create a new volume (except for a RAID 5 or mirrored volume): (1) Right-click the new dynamic disk and select New Volume. (2) Follow the instructions on the screen to create a new volume.

  • Page 35: A Drive Failure Occurs Among Drives 3-6

    If a mirrored volume on the system area doesn’t restore the first time, try initializing the drive and converting it to a dynamic disk, then restart the TeraStation. After the TeraStation restarts, try the steps above a second time. If the mirrored volume still cannot be restored, contact Buffalo technical support for assistance. A Drive Failure Occurs among Drives 3–6 Double-click the icon to start NAS Navigator2.
  • Page 36 The error message (E30) will be displayed in Buffalo Dashboard. Click Dismount Drive X (where “X” is the number of the failed drive). When the message “Drive dismount finished. ” is displayed, click OK. The status LED will stop flashing and glow steadily.
  • Page 37 Buffalo Dashboard will show the drive status “Getting... ” . After the drive status changes to “Normal”, open Server Manager and click Tools - Computer Management. Click Disk Management.
  • Page 38 When the “Initialize Disk” window appears, click OK. Right-click the initialized hard drive and select Convert to Dynamic Disk. A RAID volume cannot be built unless the hard drive is converted to a dynamic disk. Select the step depending on your reason for a created volume. To create a new volume (except for a RAID 5 or mirrored volume): (1) Right-click the new dynamic disk and select New Volume.
  • Page 39 To repair a mirrored volume: (1) Right-click the volume labeled “Failed Redundancy” and click Remove Mirror. (2) When “Remove Mirror” is displayed, select “Missing” and click Remove Mirror. (3) When “Are you sure you want to remove the mirror?” is displayed, click Yes. Perform steps (1) to (3) for each volume that requires RAID resynchronization.

  • Page 40: Chapter 6 Backup

    Chapter 6 Backup To avoid losing data accidentally, back up your data regularly. Back Up in Windows Storage Server You can back up TeraStation folders in Windows Storage Server. Preparing a Backup Destination Follow the procedure below to set your backup schedule. In Server Manager, click Tools - Windows Server Backup.
  • Page 41 Right-click on “Local Backup” and select Backup Schedule..The “Backup Schedule Wizard” will start. Click Next.
  • Page 42 Select “Custom” and click Next.
  • Page 43 Click Add Items. Select the backup source folders or drives and click OK.
  • Page 44 Click Next.
  • Page 45 Specify the schedule to run the backup and click Next.

  • Page 46: Recovering Backup Data

    Select the backup destination and click Next. Step through the wizard to finish. Recovering Backup Data Follow the procedure below to recover the backup data to the TeraStation.
  • Page 47 In Server Manager, click Tools - Windows Server Backup. The “Windows Server Backup” wizard will start. Click Local Backup. If “Reading data; please wait... ” is displayed, please wait until any messages disappear. Right-click on “Local Backup” and click Recover..The recovery wizard will start.
  • Page 48 Select where the backup data is saved and click Next.
  • Page 49 Select the date when a data backup occurred and click Next.

  • Page 50: Replication

    Ethernet cable to the LAN port of each TeraStation and follow the steps below. Buffalo Replication If using Buffalo Windows Storage Server-installed TeraStations as both the replication source and destination, start from step 1. If using a different TeraStation as the replication destination, refer to that TeraStation’s user manual to configure it as a replication destination.
  • Page 51 Enter the desired characters for a backup device access key and click Save when finished. Click Buffalo Replication in the Start menu on the replication source TeraStation’s Windows Storage Server. Click the blank space under “Replication Source”, click , and select a folder from the list as the replication source folder, then click OK.
  • Page 52 Enter the configured backup device access key of the replication destination folder and click OK. Click the blank space under “Replication Target”. If a list of folders appears, select the folder and click Select. If no shared folders appear, click Refresh and try again. To configure folders on the device that is located on another network, click Add and enter the IP address of the device, then click Save.

  • Page 53: Dfs Replication

    When finished configuring, click Apply. Click OK, then the task will start a differential overwrite from the replication source data to the replication destination. Notes: • To delete the settings from the list, select the task and click Delete. • The following files and folders will not be replicated: Files with periods (.) or underscores (_) as the first character in their name.
  • Page 54 Click Change. Select “Domain”, enter a domain name, and click OK.
  • Page 55 Enter an administrator username and password for the Active Directory domain controller. Click OK when the following message is displayed. Click OK again. Click Close. Click Restart Now and restart your computer to apply settings.
  • Page 56 Installing DFS In Server Manager, click Dashboard - Add roles and features. Click Next.
  • Page 57 Select “Role-based or feature-based installation” and click Next. Click Next.
  • Page 58 Select “DFS Namespaces” and “DFS Replication” in “File and Storage Services” - “File and iSCSI Services”. Select “Include management tools (if applicable)” and click Add Features.
  • Page 59 Click Next. Click Install. Click Close to finish.
  • Page 60 Creating Namespaces In Server Manager, click Tools - DFS Management. Click Namespaces - New Namespace.
  • Page 61 Enter a hostname for the namespace server and click Next.
  • Page 62 Enter a name for the namespace and click Next.
  • Page 63 Select Domain-based namespace and click Next. Click Create. Click Close when the New Namespace Wizard finishes.
  • Page 64 In DFS Management, click Namespaces and the name you created through the wizard. Then click New Folder. Enter a folder name and click OK.
  • Page 65 Enter a path to the folder or select from the list by clicking Browse. Click OK. Click OK again. Configuring DFS Replication In Server Manager, click Tools - DFS Management.
  • Page 66 Click Replication - New Replication Group.
  • Page 67 Select “Replication group for data collection” as the replication group type and click Next.
  • Page 68 Enter a name for the replication group and click Next.
  • Page 69 Enter the hostname of the file server for the replication source and click Next.
  • Page 70 Click Add.
  • Page 71 Enter the path of the replication source and click OK.
  • Page 72 Click Next.
  • Page 73 Enter the hostname of the file server for the replication destination and click Next.
  • Page 74 Enter the path of the replication destination. Alternatively, click Browse and select the folder from the list. Click Next.
  • Page 75 Click Next again. Note: You have options to specify the network band and the date and time. To configure bandwidth, select Replicate continuously using the specified bandwidth and the bit rate from the drop-down list. To configure the scheduled time, select Replicate during the specified days and times and click Edit Schedule. You can select the date and time in the displayed window.
  • Page 76 Click Create. Click Close when finished. DFS Replication is now configured. Note: It may take some time before actual replication is caught up.

  • Page 77: Chapter 7 Settings

    Chapter 7 Settings Date and Time Click the time in the system tray of Windows Storage Server. Click Change date and time settings - Change date and time, select the current date and time, and click OK. Note: In the Internet Time tab, click Change settings, then select Synchronize with an Internet time server. The date and time can be obtained automatically.
  • Page 78 In the Computer Name tab, click Change. Enter the computer name, choose domain or workgroup, and click OK.

  • Page 79: Changing The Password

    Note: The computer name should contain 16 characters or less. If more than 16 characters are entered, all characters from the 17th character on are ignored. Changing the Password The default password for the TeraStation’s administrator account is “password”. This is public knowledge, so for security, you should change it immediately.
  • Page 80 Click Proceed. Enter a new password (twice).

  • Page 81: Adding A User

    Adding a User In Server Manager, click Tools - Computer Management. Click Local Users and Groups. Right-click Users and click New User.

  • Page 82: Adding A Group

    Enter the desired settings and click Create. Click Close. Note: Accounts not belonging to the Administrators group cannot connect to Windows Storage Server through the remote desktop. Adding a Group In Server Manager, click Tools - Computer Management. Click Local Users and Groups.
  • Page 83 Right-click Groups and choose New Group. Enter a group name and click Add.
  • Page 84 Click Advanced. Click Find Now.
  • Page 85 Select the users to be registered to the group, then click OK. Click OK again.

  • Page 86: Creating A Shared Folder

    Click Create. Click Close. Creating a Shared Folder No shared folders are configured by default. Before using the TeraStation, follow the procedure below to create one or more shared folders. This is an example to create a shared folder, named “Share” in drive D, which anyone can access. In Server Manager, click Tools - Computer Management.
  • Page 87 Click Shared Folders. Right-click Shares and click New Share. Click Next.
  • Page 88 Enter the path of an existing folder or a new folder, then click Next. Notes: • Enter “D:\Share” into the folder path to create the shared folder for the first time. • If the message “The system cannot find the specified path. Do you want to create it?” is displayed, click Yes. Enter a name for the share and a description (optional), then click Next.
  • Page 89 Check Customize permissions, then click Custom. Choose Everyone and check Allow for “Change”.
  • Page 90 In the Security tab, click Edit - Add. Enter “Everyone” under “Enter the object names to select”, then click OK.
  • Page 91 Choose “Everyone”, then check Allow for Modify. Click OK - OK - Finish - Finish. Click Local Users and Groups in Computer Management. Double-click Users - Guest. In the General tab, clear the Account is disabled checkbox, then click OK. Notes: Enable a guest account: (1) In Server Manager, click Tools - Computer Management.

  • Page 92: Email Notification

    Email Notification Your TeraStation can send you email reports daily, or when settings are changed or an error occurs. Notification emails may be triggered by a TeraStation report or Windows event log. Configuring Email Notification From the Windows Storage Server Start menu, click Email Notification. Select the “Enable email notification”...

  • Page 93: Specifying Terastation Reports

    Items Descriptions Enable email notification If enabled, email reports will be sent during specific events. Adds a new receiver for the notification email. Click New to add a new email address. Click Edit to change the receiver settings or Delete to Send to remove an address from the list.
  • Page 94 Click the Report Settings tab and select the “Use TeraStation reports to determine notification type” checkbox. Click On or Off to enable/disable the notifications of the function. When you select the checkboxes to the left of each log level, all notifications of the line will be selected at once. Click OK, then click OK again.

  • Page 95: Specifying Windows Event Logs

    It is recommended to do the corrective action for the error immediately. Specifying Windows Event Logs A notification email will be sent when the specified event occurs. If using Buffalo Replication, enabling this function is recommended. This section describes using Buffalo Replication’s event IDs.
  • Page 96 Select the importance level from the “Log Level” list. Select “Application” from the “Log Type” list. Enter “Replication” into the “Source” box. Enter an event ID referring to the table below. Event IDs Event ID Type Description Files in the replication source were deleted so they could not be sent to the 1001 Warning replication target.

  • Page 97: Acquiring Windows Event Logs

    Acquiring Windows Event Logs To acquire event logs of the TeraStation, follow the procedure below. From the Windows Storage Server Start menu, click Administrative Tools. Double-click Event Viewer. Double-click Windows Logs. Right-click on either “Application”, “Security”, “Setup”, or “System” in the left-side menu to determine the logs to be saved.
  • Page 98 Items Descriptions Change the brightness of the LCD panel from level 1 (darkest) to 5 LCD Brightness (brightest). If checked, the LCD brightness will be set at level 2 (dark) from 6 pm to 8:59 am the next day. Night Mode Note: If the LCD brightness is already set to level 1 (darkest) or level 2 (dark), night mode will be grayed out and cannot be selected.

  • Page 99: Chapter 8 Utilities

    Chapter 8 Utilities NAS Navigator2 for Windows NAS Navigator2 is a utility program that makes it easy to display Windows Storage Server, change the IP address, or check its hard drive in remote desktop. If you installed the TeraStation with the TeraNavigator, NAS Navigator2 was installed automatically.
  • Page 100 Name Description Assigns all the LinkStations’ and TeraStations’ shared folders Map All Remote Shares to as network drives. This is available only when a shared Drive Letters folder has been created. Creates a desktop shortcut to the selected LinkStation’s or Create Desktop Shortcut TeraStation’s shared folders.

  • Page 101: Changing The Ip Address

    Name Description Opens the selected LinkStation’s or TeraStation’s shared Browse Shares folders. Open Remote Desktop Opens Windows Storage Server in remote desktop. LinkStation or Opens the selected LinkStation’s or TeraStation’s properties Properties TeraStation Name page. Creates a desktop shortcut to the selected LinkStation’s or Create Shortcut TeraStation’s shared folders.

  • Page 102: Nas Navigator2 For Mac

    Clear the “Use DHCP” checkbox and enter the desired settings, then click OK. If the username and password prompt appears, enter the admin username and password. NAS Navigator2 for Mac NAS Navigator2 is a utility program that makes it easy to display Windows Storage Server, change the TeraStation’s IP address, or check its hard drive in remote desktop.
  • Page 103 Name Description Open Remote Desktop Opens Windows Storage Server in remote desktop. Opens a window that lets you configure the NAS’s IP Configure address or open the remote desktop screen. Label Color Selects the color of the name displayed below the icon. View Options Lets you choose icon size, position, and view mode.

  • Page 104: Changing The Ip Address

    The NovaBACKUP installer is available from either http://d.buffalo.jp/WS5000R2/ for the WS5000R2 series and http://d.buffalo.jp/WS5000N2/ for the WS5000N2 series. Select the region and model to go to your specific model’s d.buffalo website. Download the NovaBACKUP installer and install it onto your computer.

  • Page 105: Chapter 9 Appendix

    If the error is displayed still, contact Buffalo technical support for assistance. Do not place objects in the area around the A rise in the system temperature SYSTEM Error E12 TeraStation.

  • Page 106: Default Settings

    X Drive Rebuilding per terabyte for a mirrored volume. This during the rebuilding process. message will disappear when the RAID resynchronization finishes. From Buffalo Replication, click Sync to Replication I33 An error occurred during execute resynchronization. If the error is Replicate Failure replication.

  • Page 107: Specifications

    “Password must meet complexity requirements” is disabled by Local Security Policy default. Specifications Check the Buffalo website for information about the latest products and specifications. Workgroup Edition Model: Microsoft Windows Storage Server 2012 R2 Workgroup Edition Standard Edition Model: Microsoft Windows Storage Server 2012 R2 Standard Edition Installed System Note: The Microsoft Software License is on the d.buffalo website,...

  • Page 108: Data Backup

    While using the TeraStation, you may lose your important data due to sudden accidents, hard disk failure, or accidental misoperation. Back up your data regularly! For best results, back up your data to Buffalo drives like the TeraStation, LinkStation, or DriveStation series.

  • Page 109: Shared Folders Suddenly Do Not Open

    Add an exception to your firewall software, or disable the firewall software completely. Turn off any software security suite that might include a firewall. Try searching again. Cause 3. Wireless and wired adapters are both enabled: Disable all adapters except for the LAN adapter connected to the TeraStation. Cause 4.
  • Page 110 In Server Manager, click Tools - Computer Management. Click Disk Management. Check whether the volume status shows either “Failed Redundancy” or “Failed”. Status Shows “Failed Redundancy” If the status shows “Failed Redundancy”, then a volume in the RAID volume has been corrupted and the RAID volume is operating in degraded mode.

  • Page 111: Windows Storage Server Recovery Procedure

    When you reactivate the volume, RAID resynchronization will start. It will take about 8–12 hours per TB for a RAID 5 volume and about 3–6 hours per TB for a mirrored volume. File transfers will be slower during this period. Status Shows “Failed”...

  • Page 112: Notes

    This recovery procedure erases your data. Backing up regularly is highly recommended to avoid losing your important data. Do not connect the SD card to another TeraStation or your computer. The recovery process that involves using this SD card is intended for this product only. Recovery is performed by deleting the area for drive 1, setting up a new 100 GB (Basic Disk/Simple) area, and then copying the Windows Storage Server image to this area.
  • Page 113 Ethernet Port Number Is Not Correct on the Windows Storage Server Ethernet port numbers on the Windows Storage Server are assigned as the ports are recognized. They might be different from printed port numbers.

  • Page 114: Chapter 10 Regulatory Compliance Information

    Chapter 10 Regulatory Compliance Information For Customers in the United States FCC Statement This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 115 Deutsch Dies ist ein Produkt der Klasse A. In einer häuslichen Umgebung kann dieses Produkt Funkstörungen verursachen. Um diese zu beheben, müssen ggf. entsprechende Maßnahmen ergriffen werden. Verwenden Sie ausschließlich die Kabel und Zubehörteile, die im Lieferumfang enthalten sind. Andere Zubehörteile oder Kabel dürfen nur dann verwendet werden, wenn dies in der Dokumentation ausdrücklich vorgeschrieben ist.

  • Page 116: For Customers In Russia

    For Customers in Russia TR-CU Country of Origin Made in China or Made in Japan Buffalo Inc. Manufacturer Akamondori Bldg., 30-20, Ohsu 3-chome, Naka-ku, Nagoya 460-8315, Japan For manufacturing date and country, refer to the product package. Дату изготовления и страну-производителя см. на упаковке.
  • Page 117 For Customers in China 插座应当装在设备的附近,而且应当便于触及到 警　告 此为A级产品，在生活环境中，该产品可能会造成无线电干扰。在这种情况下，可能需要用户对其干扰采取切 实可行的措施。 For Customers in Taiwan BSMI 警告使用者 : 此為甲類資訊技術設備，於居住環境中使用時，可能會造成射頻擾動，在此種情況下，使用者會被要求採取某 些適當的對策。 For Customers in Korea 이 기기는 업무용(A급) 전자파적합기기로서 판매자 또는 사용자는 이 점을 주의하시기 바라며, 가정외의 지역에서 사용하는 것을 목적으로 합니다.
