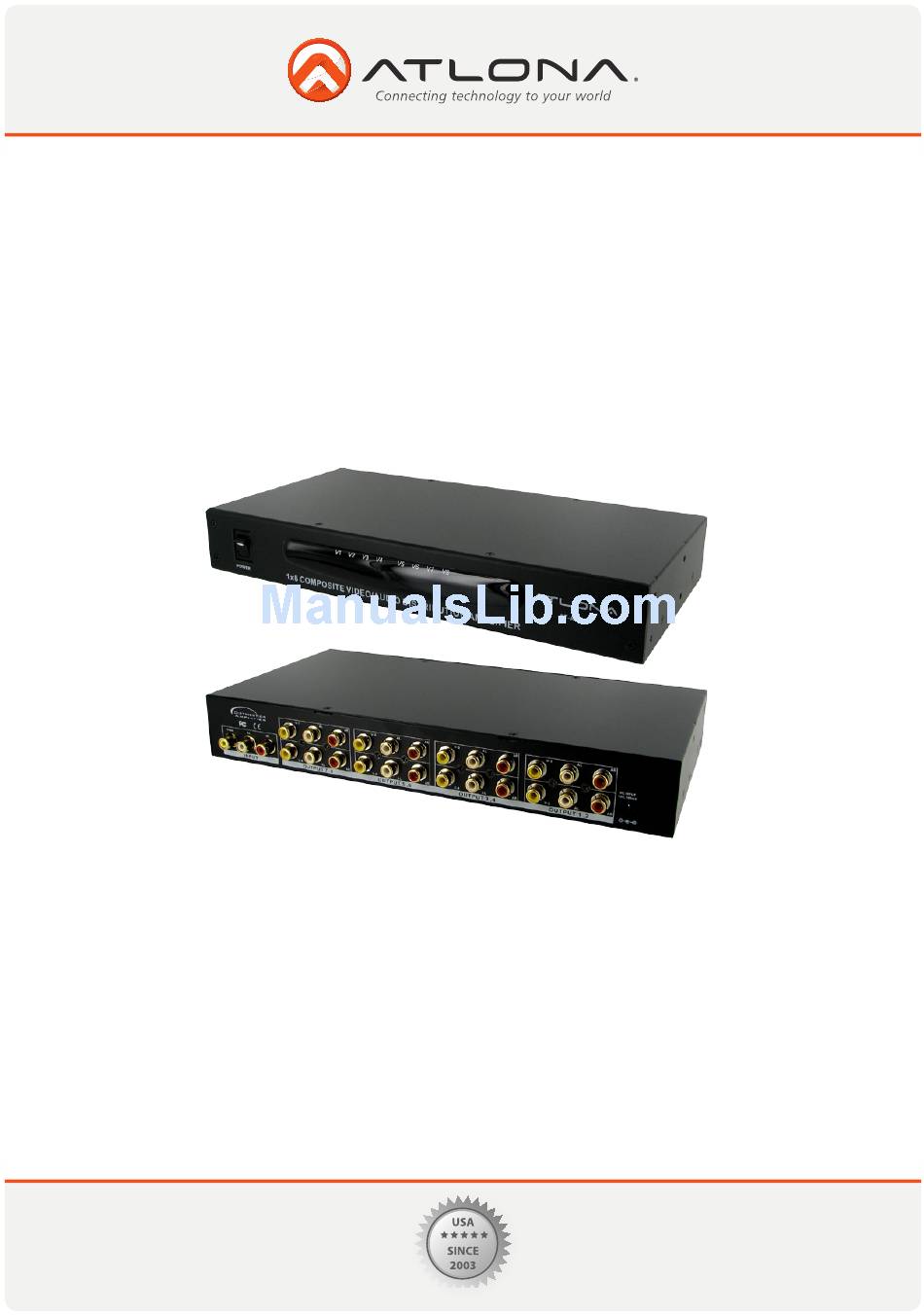

- Page 1 1x8 COMPOSITE DISTRIBUTION AMPLIFIER with STEREO AUDIO AT-AV18 User Manual Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Introduction 2. Features 3. Package Contents 4. Specifications 5. Panel Description 5.1. Front Panel 5.2. Rear Panel 6. Connection and Installation 7. Safety Information 8. Warranty 9. Atlona Product Registration Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
Audio to multiple displays at the same time. With 1 x AV Input and 8 x AV Outputs, the AT-AV18 is capable of sending signal from one source to all 8 de- sired displays at the same time without signal degradation. -
Page 4: Panel Description
PANEL DESCRIPTION 1. Front Panel AT-AV18 POWER 1x8 COMPOSITE DISTRIBUTION AMPLIFIER With STEREO AUDIO 1. Power Switch: Power Unit On and Off 2. Outputs 1-8 Indication LEDs: LED illuminates green when desired Output is in use. 2. Rear Panel POWER... -
Page 5: Connection And Installation
2. Connect Desired source to the Composite Input (RCA). 3. Connect Composite Outputs (RCA) to desired Displays 4. Plug in 12V DC power supply. 5. Power on the monitors. 6. Power on the source. 7. Power on AT-AV18 Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 6: Safety Information
Never open, remove unit panels, or make any adjustments not described in this manual. Attempting to do so could expose you to dangerous electrical shock or other hazards. It may also cause damage to your AT-AV18. Opening the product will void the warranty. -
Page 7: Warranty
To the maximum extent permitted by applicable law, in no event shall Atlona Technologies or its suppliers be liable for any damages arising out of the use of or inability to use this product, even if Atlona Technologies has been advised of the possibility of such damages. Such damages include but are not limited to: special, inciden- tal, consequential, or indirect damages for personal injury, loss of business profits, business interruption, loss of business information, or any other pecuniary loss. -
Page 8: Atlona Product Registration
ATLONA PRODUCT REGISTRATION Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance issues and firmware updates.
