CAPPUCCINO DISPENSERS
GB models:
•LOW PROFILE [LP]
•BUDGET [K]
•SPACE SAVER
•SKI
•Super SKI
OPERATION MANUAL
• Specifications...............................................
• Installation and Operating Instructions......
• Adjustments..................................................
• Trouble Shooting Guide...............................
• Care and Maintenance.................................
• Parts Identification......................................
• Wiring Diagrams.........................................
•
718-932-1414
FAX
718-932-7860
2
3
6
10
11
16
22
NA33A-E 1/07
Advertisement
Subscribe to Our Youtube Channel

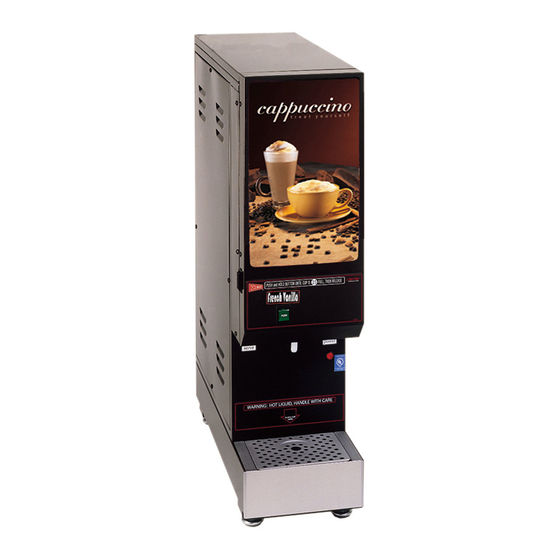

Related Manuals for Cecilware GB1M-LD
Summary of Contents for Cecilware GB1M-LD
- Page 1 CAPPUCCINO DISPENSERS Cecilware sells value... Worldwide 45 -05 20th Avenue, Long Island City, NY 11105 GB models: •LOW PROFILE [LP] •BUDGET [K] •SPACE SAVER •SKI •Super SKI OPERATION MANUAL • Specifications... • Installation and Operating Instructions... • Adjustments... • Trouble Shooting Guide...
- Page 2 MODEL: GB1M-LD SPACE SAVER SPACE SAVER GB2M-5.5-LD GB3M-5.5-LD GB3M-10-LD GB4M-5.5-LD GB5M-5.5-LD GB5M-10-LD 2K-GB-LD BUDGET 3K-GB-LD 4K-GB-LD 5K-GB-LD 5K-10-GB-LD GB2-LP-LD LOW PROFILE GB3-LP-LD GB4-LP-LD GB1SKI -LD GB2-SKI -LD GB2 Super SKI SUPER SKI GB2 Super SKI-BL-LD SUPER SKI All models are with or without -LD (Lit Display).
-
Page 3: Installation Instructions
INSTALLATION INSTRUCTIONS Water Inlet Connection: This equipment is to be installed to comply with the applicable Federal, State, or local plumbing codes having jurisdiction. In addition: A quick disconnect water connection or enough extra coiled tubing (at least 2x the depth of the unit) so that the machine can be moved for cleaning underneath. -
Page 4: Unpacking Instructions
Carefully unpack the GB Machine and inspect immediately for shipping damage. Your GB Machine was shipped in a carton designed to give it maximum protection in normal handling. It was thoroughly inspected before leaving the factory. In case of damage, contact the shipper, not Cecilware. DESCRIPTION AND LOCATION OF COMPONENTS Note: Refer to Illustration A for description and location of COMPONENTS and CONTROLS. -
Page 10: Troubleshooting Guide
WARNING: To reduce the risk of electrical shock unplug the dispenser power cord before repairing or replacing any internal components of the unit.. Before any attempt to replace a component be sure to check all electrical connections for proper contact. PROBLEM PROBABLE CAUSE A Dispensing unit unplugged... - Page 11 SANITIZING: All sanitizing agents in the food zone must comply with 21 CFR 178.1010. All food dispensing units should be sanitized periodically. All parts to be sanitized must be cleaned first. To prepare a sanitizing solution: ADD 2 TSP. OF LIQUID CLOROX BLEACH (5.25% CONCENTRATION) TO 1 GALLON OF WATER AT ROOM TEMPERATURE (70°- 90°F).
-
Page 19: Item Description
ITEM DESCRIPTION TANK ASS’Y/TANK TOP ASS’Y -SEE METAL PARTS LIST – NEXT PAGE SILICONE HOSE [BREATHER FITTING] [ .375 I.D x 32”] M326A SILICONE HOSE [DISPENSE VALVE] [ .313 I.D x 14.5”] M324A SILICONE HOSE [WATER INLET] [.375 I.D. x 13”] M326A CHECK VALVE [PREVENTS BACKFLOW] [suggested –... - Page 20 MODELS GB1M SPACE SAVER GB2M-5.5 GB3M-5.5 GB4M-5.5 GB5M-5.5 [17” W] GB5M-10 [18” W] 2K-GB [32” H] BUDGET W/ MOLDED DOOR 3K-GB [32” H] 4K-GB [32” H] 5K-GB [32” H] GB2 –LP LOW PROFILE GB3 - LP GB4 - LP GB1-SKI-LD GB2-SKI-LD GB2-Super-SKI Super SKI...
