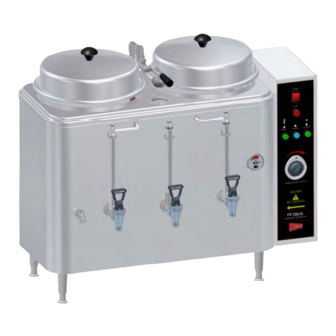

Page 2: Electrical Specifications
Model No. Volts FE75-N 120/240 CL75-N 120/208 CH75-N 120/240 FE100-N CH100-N 120/208 120/240 CL100-N 120/208 CL100-N EXPORT 120/240 FE200-N CL200-N 120/208 120/240 FE300-N 120/208 Export Voltages: 220V, 380V, 440V are available. RECOMMENDED WIRE SIZE FOR FIELD-WIRING URNS Model No. FE75-N CL75-N CH75-N CL100-N CL100-N EXPORT FE100-N CH100-N FE200-N CL200-N... - Page 3 POWER STOP BREW BLEND 29.1 19.3 CAUTION HOT SURFACES 10.1 NN10A 16.0 14.0 POWER STOP BREW BLEND 29.1 19.3 CAUTION HOT SURFACES 10.1 NN10A 14.0 28.0...
- Page 4 POWER STOP BREW BLEND 1/2 BREW 31.2 21.2 CAUTION HOT SURFACES 10.1 NN10A 32.0 16.0 POWER STOP BREW BLEND 34.5 23.4 CAUTION HOT SURFACES NN10A 36.1 18.0...
-
Page 5: Installation Instructions
Cover(s) are shipped with knob(s) on inside to prevent damage. Simply unscrew and reverse knob(s) and hardware. Your urn comes with one brew basket and an introductory filter pack. Additional Cecilware filters are available from your dealer. CAUTION: DO NOT TURN THERMOSTAT ON UNTIL ALL INSTALLATION INSTRUCTIONS HAVE BEEN FOLLOWED. - Page 8 PARTS LIST - FE-N SERIES AUTOMATIC COFFEE URNS ITEM PART # DESCRIPTION B157A TERMINAL BLOCK 4 WIRE C036A CONTACTOR, 3 POLE, 50 AMP - (240V) CG12A CONTACTOR, 3 POLE, 50 AMP - 120V C395A FUSE 6A SC-6 C396A FUSEHOLDER, SC-6 C511A AIR PUMP, AGITATOR (120V ONLY) C512A...
- Page 10 SOLID-STATE TIMER ADJUSTMENT: A factory pre-set electronic solid-state timer controls the volume of water for each brew cycle. If more or less water is desired, follow these instructions: Turn knob of timer clockwise to increase volume of water or counterclockwise to decrease it. Run through a complete brew cycle after each adjustment.
-
Page 11: By-Pass Adjustment
SPRAY ARM BY-PASS ADJUSTMENT (ALL Urns ): Adjustable bypass allows proper brew extraction even with variations caused by soft or treated water. If bypass requires adjustment to correct for local water conditions, proceed as follows: Position spray head over center of coffee liner and press BREW switch. Turn by-pass adjustment screw clockwise to decrease by-pass flow (for stronger coffee) or counter-clockwise to increase by-pass flow (for weaker coffee). - Page 12 CAUTION: DISCONNECT POWER BEFORE ATTEMPTING ANY ELECTRICAL REPAIRS. IF WATER FAILS TO HEAT: 1. Check line fuse or circuit breaker. Replace or reset if necessary. 2. Make sure thermostat is in ON position. If thermostat pilot light does not come on, replace thermostat. (Refer to instructions below.) If pilot light is on, measure continuity between terminals l and 2 of thermostat, and between terminals 3 and 4.
-
Page 13: Maintenance
IF WATER RUNS OUT AT OVERFLOW DRAIN: Make sure urn is level and overflow tube is vertical. Remove fuse from rear of side box. 3. If water continues to flow, solenoid valve is dirty or not seating properly. Replace solenoid as described above. NO WATER FROM SPRAY HEAD: Check fuse first. - Page 14 Cleaning the Cecilware Automatic Coffee Urn... To ensure the highest quality, best tasting coffee, your urn must be cleaned daily after the last batch. Regular cleaning and preventive maintenance is essential in keeping your coffee urn looking and working like new.
- Page 16 FE-N SERIES W/ SINGLE TIMER AIR AGITATOR PUMP BLEND Blue BREW PUMP (N FOR 120V) FE-N SERIES WIRING DIAGRAM Gray DELAY TIMER Blue BREW LIGHT WATER INLET VALVE WATER LEVEL PROBES CONTACTOR SINGLE TIMER BREW SWITCH WATER LEVEL CONTROL 1 FILL 2 AC-1L 3 AC-2N 4 L-LEVEL...
- Page 17 FE-N SERIES W/ DUAL TIMER AIR AGITATOR PUMP DELAY TIMER BLEND NC Blue BREW PUMP (N FOR 120V) FE-N SERIES WIRING DIAGRAM Gray Blue HALF BREW LIGHT WATER INLET VALVE WATER LEVEL PROBES CONTACTOR BREW BREW LIGHT SWITCH Purple Purple DUAL TIMER STOP...
- Page 18 CONTACTOR TERMINAL BLOCK CONTACTOR TERMINAL BLOCK CONTACTOR TERMINAL BLOCK CONTACTOR TERMINAL BLOCK TERMINAL BLOCK CONTACTOR FE-N SERIES WIRING DIAGRAM 3 GALLON - SINGLES & TWINS 3 PHASE HEATER 1 PHASE HEATER 6 GALLON TWINS 9 GALLON TWINS G026A (8 KW) G024A (6 KW) G013A (8 KW) G031A (7 KW)
- Page 19 BLEND BREW PUMP WATER INLET VALVE (N FOR 120V) CL-N & CH-NSERIES URNS CECILWARE CORPORATION AIR AGITATOR PUMP DELAY TIMER BREW LIGHT WATER LEVEL PROBES WATER CONTACTOR TIMER WATER LEVEL CONTROL 1 FILL 2 AC-1L 3 AC-2N 4 L-LEVEL 5 H-LEVEL...
