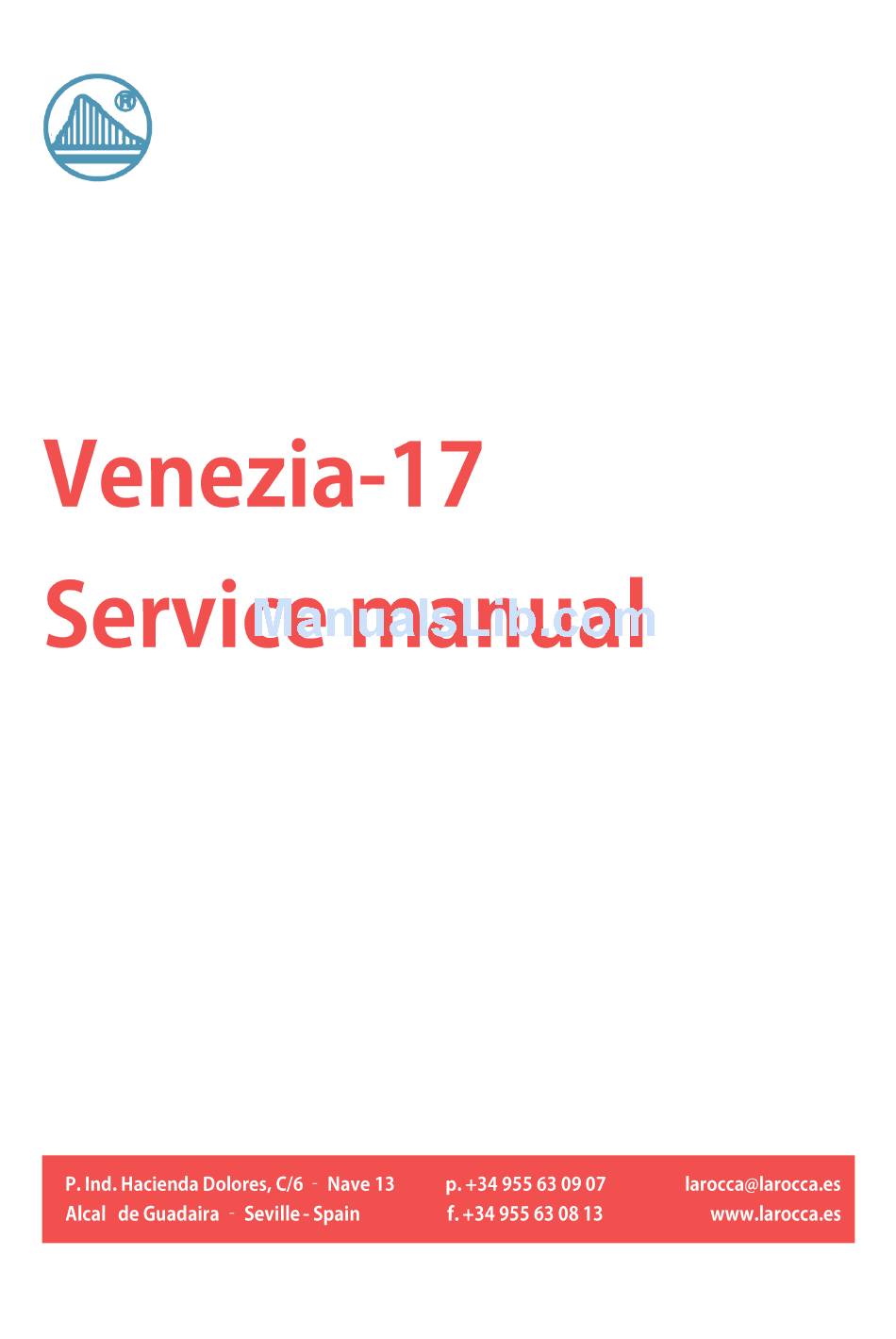

  • Page 1 á...

  • Page 2: Table Of Contents

    Index Overview ......................4 VENEZIA-17 EXTRA FEATURES MACHINE STATUS: AVAILABLE BUTTON FUNCTIONS Accessing the user’s level adjust ............... 6 SETTING THE CLOCK AUTO ON/OFF CHECKING THE COUNTERS Accessing the technical programming level ............. 9 III. ACCESS LANGUAGE NAME ASSISTANCE PHONE...
  • Page 3 SERVICE ALARM FILTER REGENERATION ALARM Reset the configuration to default ..............17 Main board electric sketch ................18 Technical data ....................18 VII. DIMENSIONS...
  • Page 4 MAIN SWITCH STEAMER LEVER 2 BOILER PRESSURE GAUGE KEYBOARD GROUP 2 LCD DISPLAY KEYBOARD GROUP 1 NET PRESSURE GAUGE STEAMER LEVER 1 HOT WATER WAND STEAMER WAND 1 WORKING TRAY ADJUSTABLE FEET REMOVABLE TRAY FILTERHOLDER GROUP 1 FILTERHOLDER GROUP 2 STEAMER WAND 2...

  • Page 5: Overview

    Overview VENEZIA-17 EXTRA FEATURES The Venezia-17 includes the following additional functions accessible on programming level: • Automatic daily on/off timer (stand-by function). • Clock settings (current time and date). • Promotional display. • Number of coffees/infusions dispensed. • Digital boiler-temperature display and control.

  • Page 6: Available Button Functions

    Out of the programming modes, the dose buttons return to its original functions: All programming functions (apart from dose programming) must be made on the Group 1 keyboard ( 6 ) –the leftmost-. LA VENEZIA-17 ESPRESSO MACHINE USER MANUAL...

  • Page 7: Accessing The User's Level Adjust

    “programming” key or you can access to the “Auto On/Off” menu by pressing the “2 espressos” button. AUTO ON/OFF After accepting the changes made in the “set clock” menu, pressing the “2 espressos” button give access to the coffee machine’s auto on/off programming menu. LA VENEZIA-17 ESPRESSO MACHINE USER MANUAL...

  • Page 8: Checking The Counters

    “continuous” button until the “doses settings” screen appears on the LCD. Then release the “continuous” button and press it twice. The following screen will appear on the LCD: Press the “Ok” key to see the first screen: LA VENEZIA-17 ESPRESSO MACHINE USER MANUAL...
  • Page 9 From now on, press the continuous key to check all the counter pages. Pressing once we get the liters remaining for the scheduled revision. Pressing once again we get the total coffees served. And finally, the counters of every coffee served by every dose of every group of the machine LA VENEZIA-17 ESPRESSO MACHINE USER MANUAL...

  • Page 10: Accessing The Technical Programming Level

    Press the 1 Espresso button (+) to cycle forward through the languages and the 1 Long Espresso button (-) to cycle backward through them. Languages available: Spanish, English, French, Italian, German and Portuguese. To accept the language selected and access the next menu, press the “continuous” button. LA VENEZIA-17 ESPRESSO MACHINE USER MANUAL...

  • Page 11: Name

    To edit the flashing number, press the “1 Espresso” (+) and “1 coffee” (-) buttons. To accept the setting selected and move on to the next menu, press the “continuous” button. LA VENEZIA-17 ESPRESSO MACHINE USER MANUAL...

  • Page 12: Chronometer Function

    To modify the current option, press the “1 Espresso” (+) and “1 coffee” (-) buttons. To accept the setting selected and move on to the next menu, press the “continuous” button. LA VENEZIA-17 ESPRESSO MACHINE USER MANUAL...

  • Page 13: Continuous Key

    To modify the current option, press the “1 Espresso” (+) and “1 coffee” (-) buttons. To accept the setting selected and move on to the next menu, press the “continuous” button. LA VENEZIA-17 ESPRESSO MACHINE USER MANUAL...

  • Page 14: Probe Sensitivity

    ºC or ºF. To edit the type of unit, press the “1 Espresso” (+) and “1 coffee” (-) buttons. To accept the setting selected and move on to the next menu, press the “continuous” button. LA VENEZIA-17 ESPRESSO MACHINE USER MANUAL...

  • Page 15: Boiler Temperature

    / off. Where x is the value in degrees of the range and is a selectable value from 2 to 5 in steps of 1ºC. LA VENEZIA-17 ESPRESSO MACHINE USER MANUAL...

  • Page 16: Water Load Time-Out

    Check that the machine is receiving water and the coffee pour is not very slow. Test the group without the filterholder on it. If the machine is receiving water then: • Check electric connection between counter and control box. LA VENEZIA-17 ESPRESSO MACHINE USER MANUAL...

  • Page 17: Temperature Sensor Fault

    Service the machine To disable the alarm and reset the counter: Turn off the machine. Simultaneously press and hold down the “1 espresso” and “1 coffee” buttons. Turn on the machine. FILTER REGENERATION ALARM LA VENEZIA-17 ESPRESSO MACHINE USER MANUAL...
  • Page 18 Chapter III. To set all values to default you must turn off the machine with the main switch (1), press the “1 espresso”, “2 espresso” and “continuous” buttons of the group 1 keyboard. LA VENEZIA-17 ESPRESSO MACHINE USER MANUAL...

  • Page 19: Technical Data

    3,500 (opt) 4,500 (opt) Dimensions (width) Dimensions (height) Dimensions (depth) Built-in pump Available finishing Inox/black/white Inox/black/white Automatic water load in boiler 2nd steamer Programmable hot water Cappuccinatore Opt. Opt. Serial connection to PC Opt. Opt. LA VENEZIA-17 ESPRESSO MACHINE USER MANUAL...
  • Page 20 DIMENSIONS LA VENEZIA-17 ESPRESSO MACHINE USER MANUAL...
