Page 1: Instruction Manual
® Since 1911 ESP Espresso Machines Instruction Manual Models: ESP1, ESP2 and ESP3 Cecilware Corporation 43-05 20th. Avenue, LIC NY 11105 ® Tel: 800.935.2211 718.932.1414 • Fax: 718.932.7860 Since 1911 www.cecilware.com NR27A (05/08) -
Page 2: Table Of Contents
Operation Manual Table of Contents 1. General ......... pg. -
Page 3: General
General This operations manual includes instructions for using and maintaining your espresso machine, please keep this manual readily available. After unpacking, please check to ensure your machine has not been damaged during shipping and includes all parts/components. Please notify your service representative regarding any questions or concerns before installing. -
Page 4: Precautions

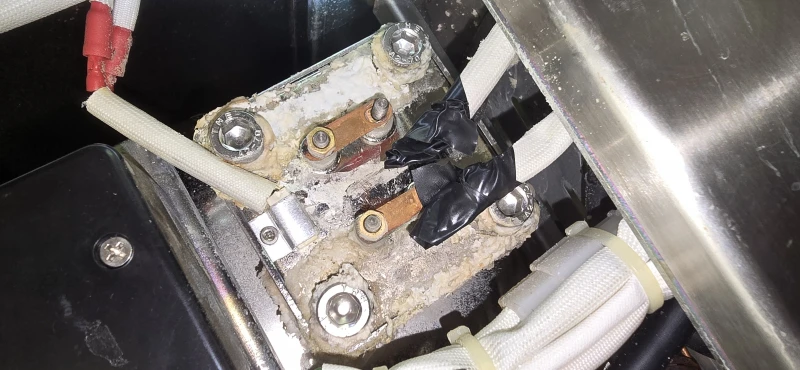

1-13 Use softened water to make coffee or tea. Well / municipal water should be softened to prevent scaling in the boiler, which will shorten the serviceable life of your machine. If a hard water source is used, the filter should be replaced every two weeks -- although long-life filters may remain serviceable up to eight weeks. -

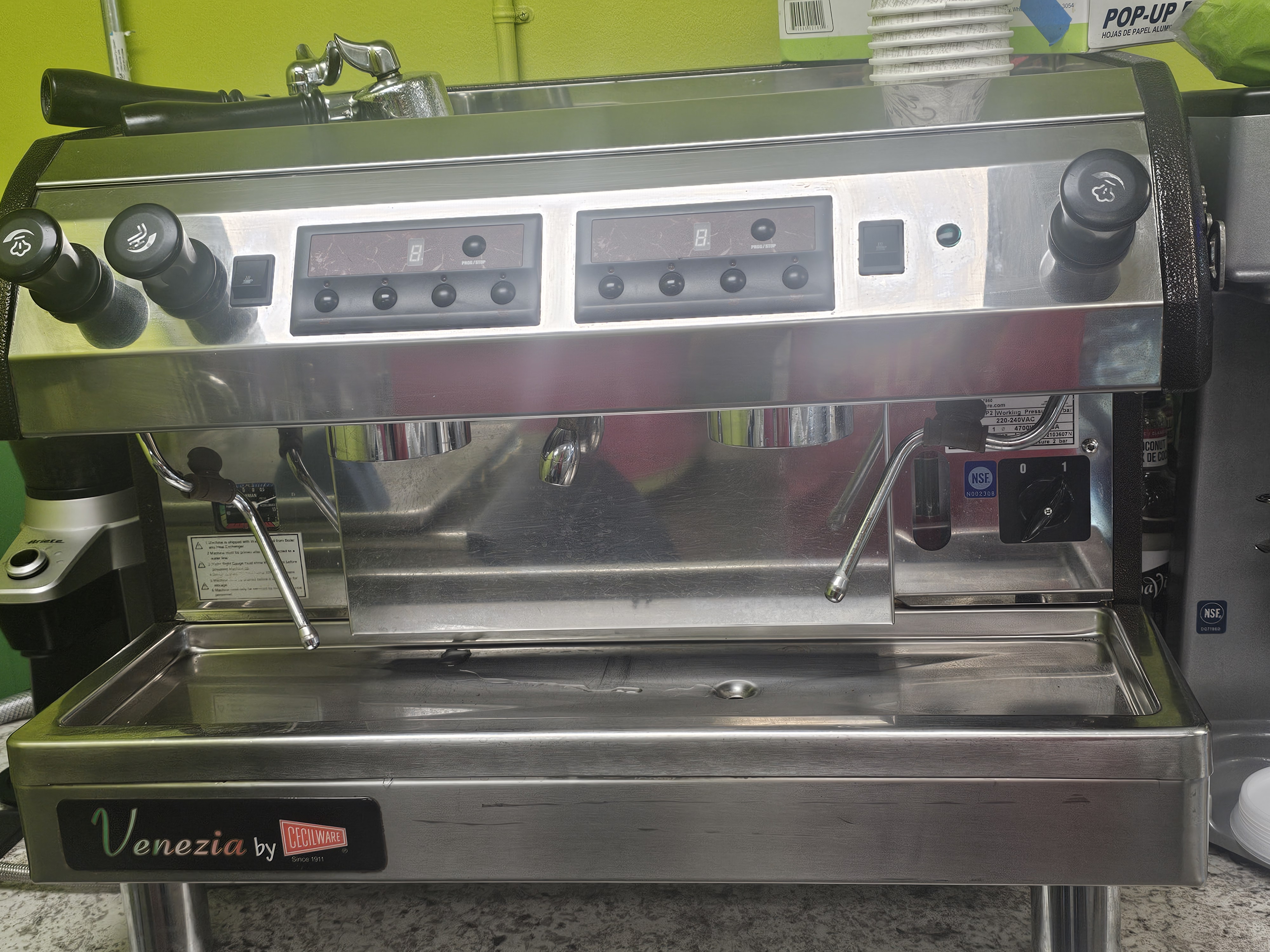

Page 5: Machine Overview
To avoid overheating, electric wires should be kept untangled and free of obstructions. Do not block air intake or outlet vents on the machine. Never cover or otherwise prevent the free flow of air across the cup warmer. Please clean machine components with a soft cloth only. Do not use plastic or wire brushes. -
Page 6: Operations
Operations Activating / Deactivating the Water Inlet Motor a. If filtered water source pressure exceeds 2 bar and the amount of hot water needed is small, turn the water inlet motor (2) to the OFF (up) position to permit water inflow without internal pump assistance. - Page 7 c. Coffee / Tea Output Presets Place an appropriate quantity of ground coffee or tea in the filter basket and fix it into the handle seat. Choose desired water output by selecting coffee or tea output values 1 through 4. Coffee or tea flow will stop automatically. d.
-
Page 8: Cleaning And Maintenance
Output Volume Setup a. Turn the output volume setup switch ON (1) and press the PROG (setup) button. Setup Button Output Keys b. The output LEDs should be lit, indicating the machine is in setup mode. c. To configure key 1, press the key 1 button, which should light LED 1 and switch off all other LEDs. - Page 9 If necessary, a mild, non-corrosive cleaning agent may be applied to the cloth. Do not spray cleaning agents directly on the machine body to avoid corrosion and possible damage to circuits. Brewing System After each brewing cycle, remove the handle and press the manual water output button to remove all residual ground coffee from the filter element.
- Page 10 Dia. Part List Description Price 01346 SILICA GEL WASHER ... . $ 2.10 01347 1 CUP FILTER HOLDER ASSY ..156.40 01348 1 CUP STAINLESS STEEL FILTER . . 24.60 01349 1 CUP FILTER HOLDER WITHOUT FILTER .
-
Page 11: Trouble Shooting
Trouble Shooting Corrective Indication Status Possible Cause Actions After two minutes of 1. Make sure that the water water input, indicator 1. Water level indicator not input switch is ON and still does not show a functioning properly. that water is flowing into rise in machine water 2. -
Page 12: Replacement Parts
PRESSURE GAUGE ... . . BRASS FITTING PS/1/4*PS1/4*L42 . SCREW M8*20 SCREW M4*6 ....SPRING WASHER M8 xxx special order contact Cecilware for more information... - Page 13 SINGLE CABLE SSR-2-4 ..(NOT SHOWN) ESP120V ..xxx special order contact Cecilware for more information; unless indicated, parts are universal to all models...
- Page 14 TAP KNOB ....$19.50 01333 STEAM KNOB CAP ... $ 4.70 xxx special order contact Cecilware for more information...
- Page 15 PT1/8 * PT1/4 ..... xxx special order contact Cecilware for more information; unless indicated, parts are universal to all models...
- Page 16 208-240V 60Hz ....38 xxx WATER LEVEL UPPER TUBE ..17 xxx SPHERICAL BRONZE CONICAL FILTER xxx special order contact Cecilware for more information...
- Page 17 AUT. WATER REFILL REDUCTION ..ELBOW BRASS CONNECTOR PT1/8 * PT1/4 AUT. WATER REFILL TUBE MIDDLE ..ELBOW BRASS CONNECTOR PF3/8 * PT1/8 xxx special order contact Cecilware for more information...
- Page 18 LEVEL LABEL ....LEVEL CONNECTOR (LOWER) ..xxx special order contact Cecilware for more information; Motor Pump Assembly ESP1, 2, 3 Dia.
- Page 19 DISTRIBUTION GROUP CAP ..... . DISTRIBUTION GROUP ASSY ..... xxx special order contact Cecilware for more information...
- Page 20 NOTES Cecilware Corporation 43-05 20th. Avenue, LIC NY 11105 ® Tel: 800.935.2211 718.932.1414 • Fax: 718.932.7860 Since 1911 www.cecilware.com...
