Summary of Contents for Griven Ruby Recessed

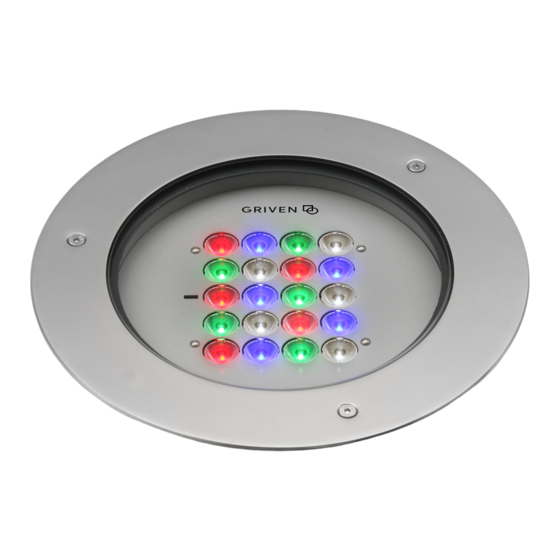

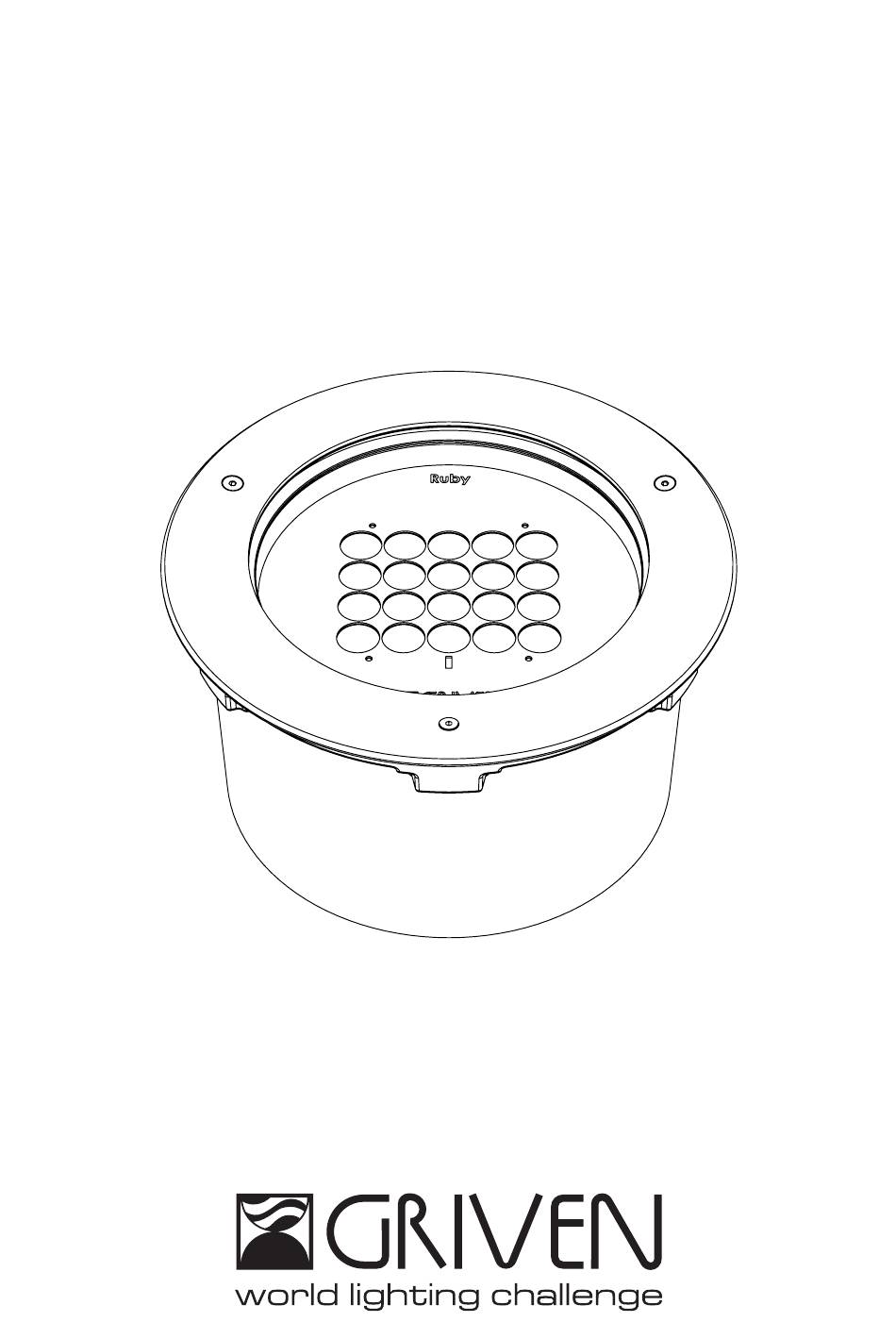

  • Page 1 Ruby Recessed Manuale di istruzioni Instructions manual...

  • Page 2: Table Of Contents

    INDEX 1.0 Introduction ..........................18 1.1 Safety information...............................18 1.1.1 Protecting against electric shock ..........................18 1.1.2 Installation ................................18 1.1.3 Protection against burns and fire ...........................18 1.1.4 Weather protection..............................18 1.2 Compliance ................................18 2.0 Size ...............................19 3.0 Packaging and transport ......................19 3.1 Packaging ...................................19 3.2 Transport ..................................19 4.0 Installation ...........................20 4.1 Build in specifications ..............................20...

  • Page 3: Introduction

    1.0 Introduction 1.1 Safety information Warning! This unit is suitable for professional use only, not for domestic use. 1.1.1 Protecting against electric shock • Disconnect the unit from mains supply before servicing it or performing any other action. • Always ground/earth the unit electrically. •...

  • Page 4: Size

    • Griven S.r.l. will accept claims for broken or missing goods only within seven days of receipt of the goods. • Returns of equipment will not be accepted without prior authorization granted by Griven S.r.l. and if not duly ac- companied by relevant shipping documents.

  • Page 5: Installation

    4.0 Installation 4.1 Build in specifications 263mm 263mm 10,35in 10,35in DRAINAGE MATERIAL DRAINAGE MATERIAL 230mm 230mm 9,06in 9,06in Light Ligh direction tion tion English...

  • Page 6: Connection To Mains Power

    4.2 Connection to mains power The unit can operate with voltage from 100 to 277Vac and with frequency of 50 and 60Hz. Warning! • Before connecting the unit, verify that power supplies features are compatible with the unit features. • The unit must never be installed if not grounded electrically. •...

  • Page 7: Use Of The Unit

    5.0 Use of the unit 5.1 Setting operating mode By using the infrared remote control AL1321 it is possible to select one of the following operating mode. • using DMX512 signal control mode Each fixture is controlled from DMX512 signal control. •...

  • Page 8: Dmx Address Setting With The Accessory Weezerd 1

    5.3 DMX address setting with the accessory Weezerd 1 The DMX address can be set by using the accessory AL2660 Weezerd 1. Refer to the manual of the accessory (Chapter 3.4.1 RDM Dev.). 5.4 Setting DMX mode with the accessory Weezerd 1 The DMX mode can be set by using the accessory AL2660 Weezerd 1.

  • Page 9: Dmx Functions With Dmx Mode = 6 Channels

    5.5.3 DMX functions with DMX MODE = 6 channels Channel Function Value Description 0-255 Proportional control 0-100% of the Red color Green 0-255 Proportional control 0-100% of the Green color Blue 0-255 Proportional control 0-100% of the Blue color White 0-255 Proportional control 0-100% of the White color Luminous output intensity 0%...

  • Page 10: Dmx Functions Monochromatic

    6.0 Master-Slave and Automatic function Ruby recessed can operate without DMX signal (in AUTOMATIC mode) and can be set so that a single MASTER unit will command a series of SLAVE units. This function is particularly useful when more units are desired to exe- cute the same programme in synchrony.

  • Page 11: Master Configuration

    6.1 MASTER configuration The projector can perform a pre-set colour-changer programme. In order to perform such pre-set programme please refer to the chart below: Funzione Tasti Descrizione the input or the removing of the automatic mode can be performed only after the log in.

  • Page 12: Fixed Colour Mode Dynamic White

    7.2 Fixed colour mode Dynamic white Function Keys Description Fixed colours The preset colours mode is activated or deactivated by the (TV) key. mode input 4 / 5 Colour se- Select the colour whose intensity is intended to be adjusted by the keys 4 or 5 lection (4=cold white;...

  • Page 13: Rdm Functions

    Replace damaged protection shields. 12.0 Spare parts All components of the unit are available as spare parts at Griven dealers. Exploded views, wiring diagrams, electronic layouts and advertising brochures are available on request. To make the job of assistance centres easier, specify serial number and model of the unit which spare parts are requested for.

  • Page 14: Troubleshooting

    13.0 Troubleshooting Inconvenience Possibile Cause Action Incorrect DMX cable Check connections and wires. Rectify inefficient connec- connection. tions. Repair or replace damaged wires. Insert a terminal resistor in the terminal box of the last Unfinished data connection. unit of the connection. The unit does not Incorrect address respond properly...

  • Page 15: Technical Specifications

    15.0 Technical specifications Mechanical features Height .................153mm (6”) Width .
  • Page 16 English...
  • Page 17 Via Bulgaria, 16 - 46042 CASTEL GOFFREDO (MN) - Italy Telefono 0376/779483 - Fax 0376/779682 - 0376/779552 http://www.griven.com/ e-mail griven@griven.com http://www.griven.it/ e-mail griven@griven.it User’s manual rel. 1.40...
