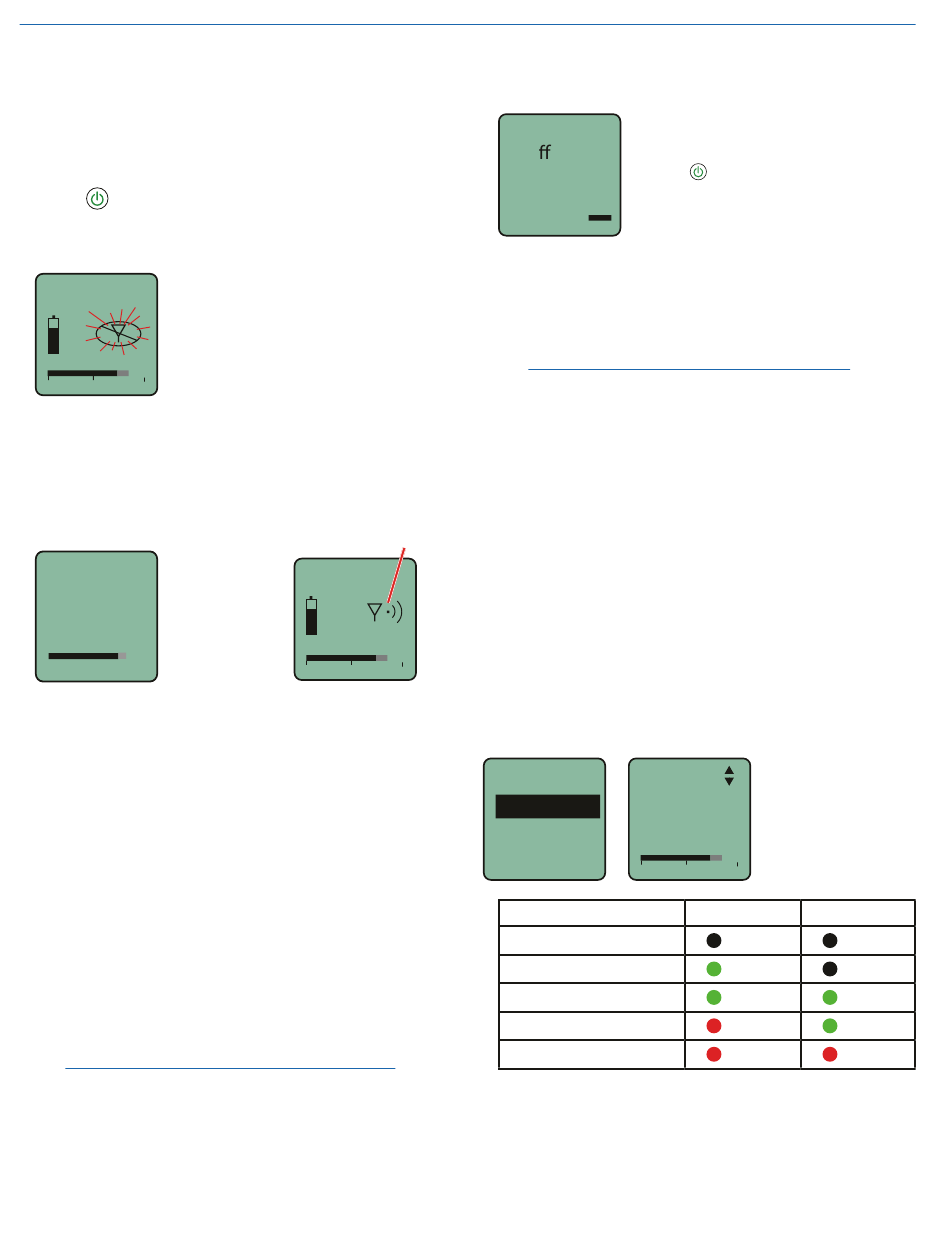

Turning Transmitter
Power ON

Short Button Press

When the unit is turned off, a short press of the power
button will turn the unit on in the Standby Mode with
the RF output turned off. This is useful for adjusting set-
tings on the unit without transmitting.
RF indicator blinks
494.500
-40 -20 0

Long Button Press

When the unit is turned off, a long press of the power
button will start a countdown to turn the unit on with the
RF output turned on. Continue to hold the button until
the countdown is complete.
Hold
Hold power
button until
For RF
the counter
reaches 3
If the button is released before the countdown is com-
pleted, the unit will power up with the RF output turned
off.

Menu Shortcuts

From the Main/Home Screen, the following shortcuts
are available:
• LEDs On: Press the UP arrow
• LEDs Off: Press the DOWN arrow
• Gain Setting: Long press the MENU button and
hold while adjusting gain up or down using the ar-
row keys
• Record: Press the BACK + UP arrow simultane-
ously
• Stop Recording: Press the BACK + DOWN arrow
simultaneously
NOTE: The recording shortcuts are only available
from the main/home screen AND when a
microSDHC memory card is installed.
6
RF indicator not blinking
503.800
-40
-20 0

Powering Off

From any screen, power can be
Powering
turned off by selecting Pwr Off in the
O . . .
power menu, holding the Power
Button
moving bar to progress, or with the
programmable switch (if it is config-
ured for this function).
If the power button is released, or the top panel switch
is turned back on again before the moving bar pro-
gresses, the unit will remain turned on and the LCD will
return to the same screen or menu that was displayed
previously.
NOTE: If the programmable switch is in the OFF
position, power can still be turned on with the
power button. If the programmable switch is then
turned on, a brief message will appear on the LCD.
Recorder Operating
Instructions
• Install battery(s)
• Insert microSDHC memory card
• Turn power on
• Format memory card
• Connect microphone and place it in the position
where it will be used.
• Have the user talk or sing at the same level that will
be used in the production, and adjust the input gain
so that the -20 LED blinks red on louder peaks.
Gain
Input...
Gain
Rolloff
Polarity
-40
Signal Level
Less than -20 dB
-20 dB to -10 dB
-10 dB to +0 dB
+0 dB to +10 dB
Greater than +10 dB
• Press MENU/SEL, choose SDCard and Record
from the menu
in and waiting for the
Use the UP and DOWN
arrow buttons to adjust
22
the gain until the -20
LED blinks red on
louder peaks
-20
+0
-20 LED -10 LED
Off Off
Green Off
Green Green
Red Green
Red Red
