Battery Installation

The transmitters are powered by AA battery(ies). We recommend using
lithium for longest life.
Because some batteries run down quite abruptly, using the Power LED to
verify battery status will not be reliable. However, it is possible to track battery
status using the battery timer function available in Lectrosonics Digital Hybrid
Wireless receivers.
The battery door opens by simply unscrewing the knurled knob part way
until the door will rotate. The door is also easily removed by unscrewing the
knob completely, which is helpful when cleaning the battery contacts. The
battery contacts can be cleaned with alcohol and a cotton swab, or a clean
pencil eraser. Be sure not to leave any remnants of the cotton swab or eraser
crumbs inside the compartment.
A small pinpoint dab of silver conductive grease* on the thumbscrew threads
can improve battery performance and operation. Do this if you experience a
drop in battery life or an increase in operating temperature.
Insert the batteries according to the markings on the back of the housing. If
the batteries are inserted incorrectly, the door may close but the unit will not
operate.
*if you are unable to locate a supplier of this type of grease - a local electron-
ics shop for example - contact the factory for a small maintenance vial.

Turning Power ON

Short Button Press

When the unit is turned off, a short press of the power button
unit on in the Standby Mode with the RF output turned off.

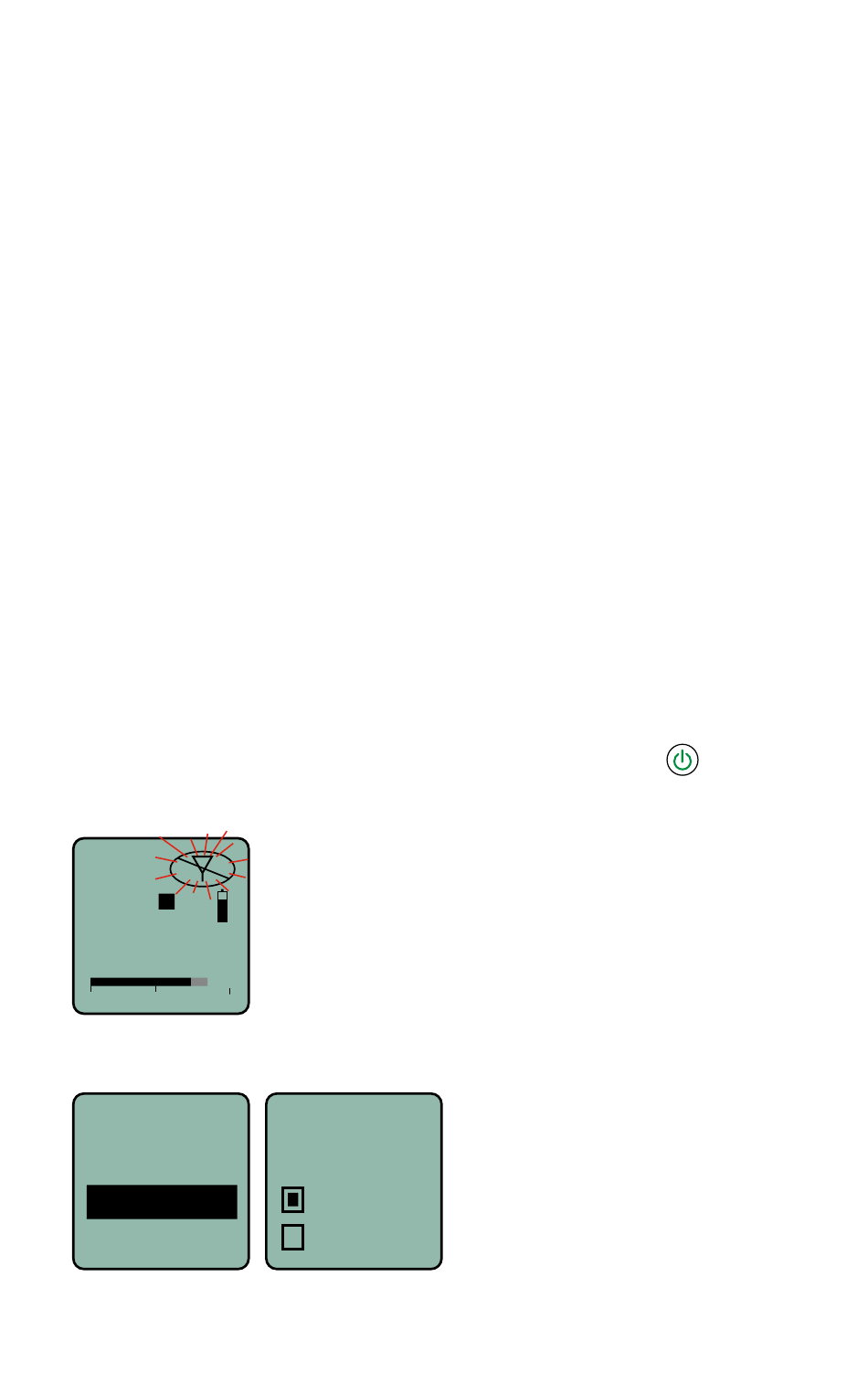

RF indicator blinks
b 19
A E
494.500
-40 -20
To enable the RF output from the Standby Mode, press the Power Button,
select Rf On? option, then select yes.
Resume
Pwr Off
Rf On?
AutoOn?
