Turning Power ON

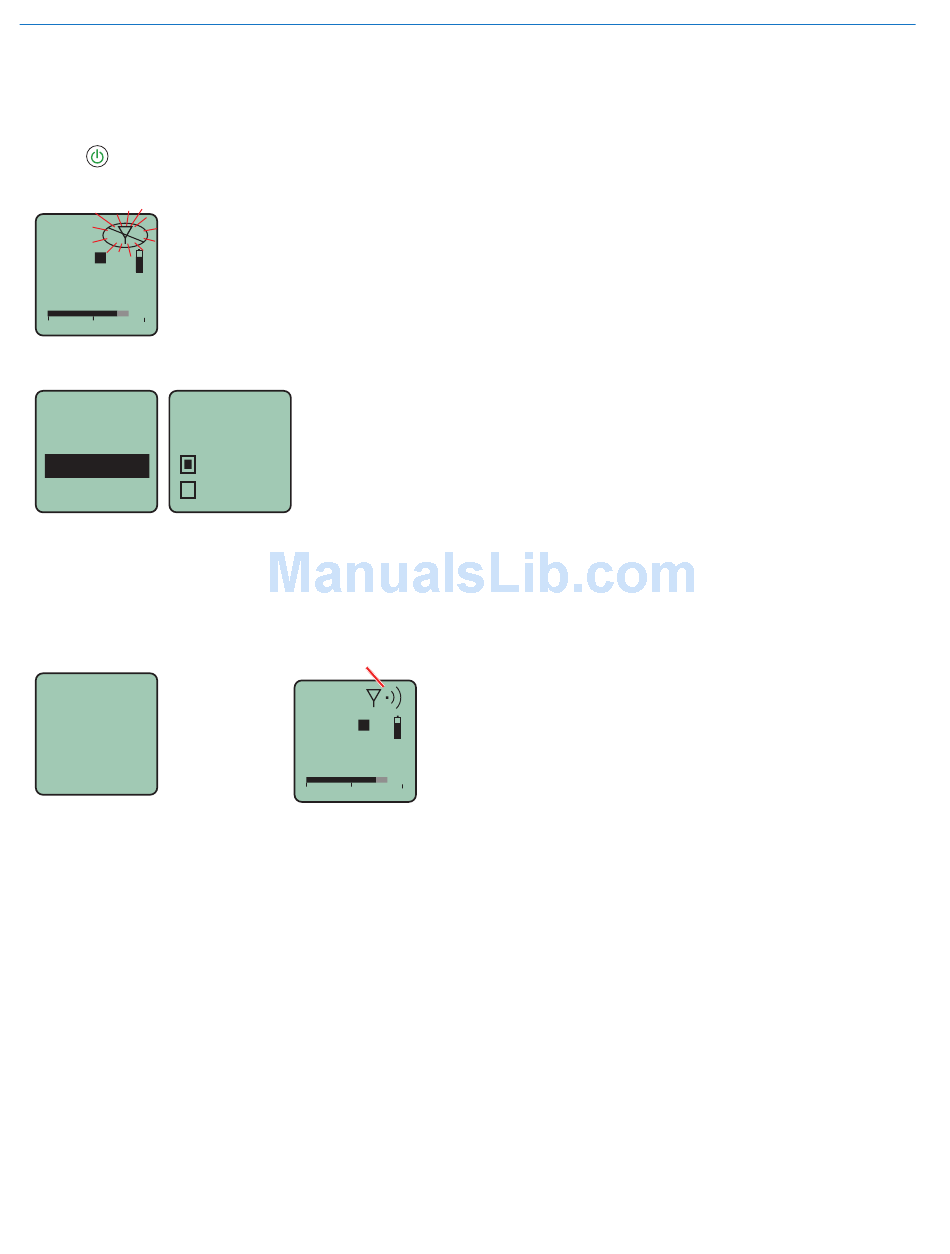

Short Button Press

When the unit is turned off, a short press of the power
button will turn the unit on in the Standby Mode with
the RF output turned off.
RF indicator blinks
b 19
A E
494.500
-40 -20 0
To turn the RF output on from the Standby Mode, press
the Power button/Rf On? option.
Resume Rf On?
Pwr Off
Rf On?
AutoOn?

Long Button Press

When the unit is turned off, a long press of the power
button will start a countdown to turn the unit on with the
RF output turned on. Continue to hold the button until
the countdown is complete.
Hold
Hold power
for
button until
the counter
Rf On
reaches 3
...3
If the button is released before the countdown is com-
pleted, the unit will switch back to RF output turned off.
6
No
Yes
RF indicator not blinking
b 19
A
E
503.800
-40 -20
Power Button Menu
When the unit is already turned on, the Power Button is
used to turn the unit off, or to access a setup menu.
A long press of the button turns the power off.
A short press of the button opens a menu for the fol-
lowing setup options. Select the option with the UP and
DOWN arrow buttons then press MENU/SEL.
• Resume returns the unit to the previous screen and
operating mode
• Pwr Off turns the unit off
• Rf On? turns the RF output on or off
• AutoOn? selects whether or not the unti will turn on
automatically after a battery change
• Remote enables or disables the audio remote con-
trol (dweedle tones)
• Bat Type selects the type of battery in use
• Backlit sets the duration of the LCD backlight
• Clock sets the Year/Month/Day/Time
• Locked disables the control panel buttons
• LED Off enables/disables control panel LEDs
• About displays the model number and firmware
revision
A long press of the button starts a countdown from 3 to
1 to turn the unit off.
