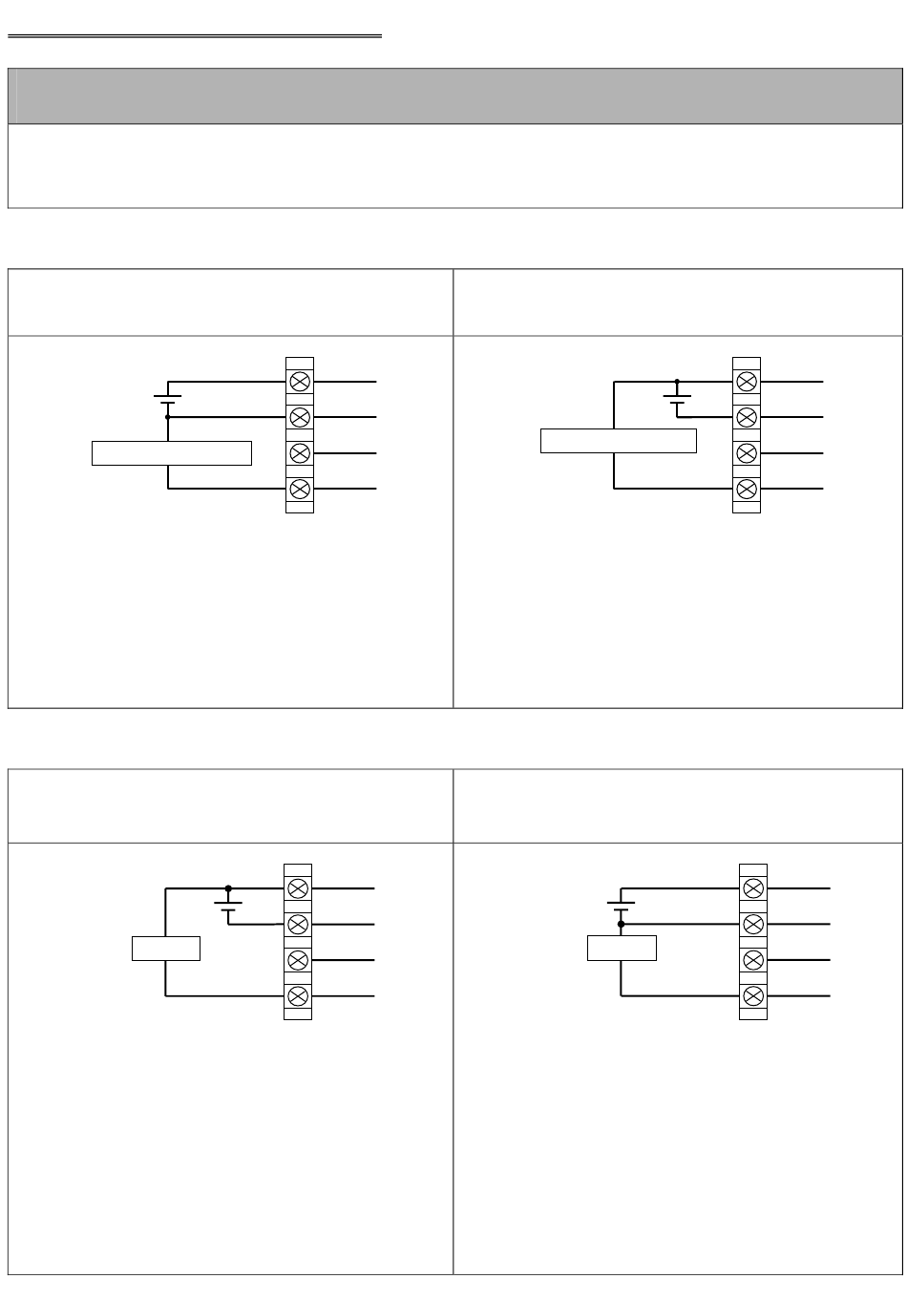

Wiring diagram(Monitor output)

When the monitor output is not being used, prevent it from touching the other
wires as this can cause a malfunction.


Analogue output・Voltage type
(ITV※0※※-※1)




-

Monitor output voltage


+





Only  use  a  equipment  with  a  minimum  load
impedance of 1kΩ.


Switch output・NPN type
(ITV※0※※-※2)





Load






When  a  current  of  30mADC  or  more  is
applied, the over current circuit is
archived,  "Er.5"  is  displayed  and  the
operation stops.
1:
Brown
3:
Blue
2:
White
4:
Black

1:
Brown
3:
Blue
2:
White
4:
Black

 CAUTION
Analogue output・Current (sink) type





Monitor  output  current







Only use equipment with a maximum load
impedance of 250Ω.











When  a  current  of  30mADC  or  more  is
applied,  the  over  current  circuit  is
archived, "Er.5" is displayed and the
operation stops.
―6―
(ITV※0※※-※4)
+
-

Switch・PNP type
(ITV※0※※-※3)
Load

1:
Brown
3:
Blue
2:
White
4 :
Black
1:
Brown
3:
Blue
2:
White
4:
Black
