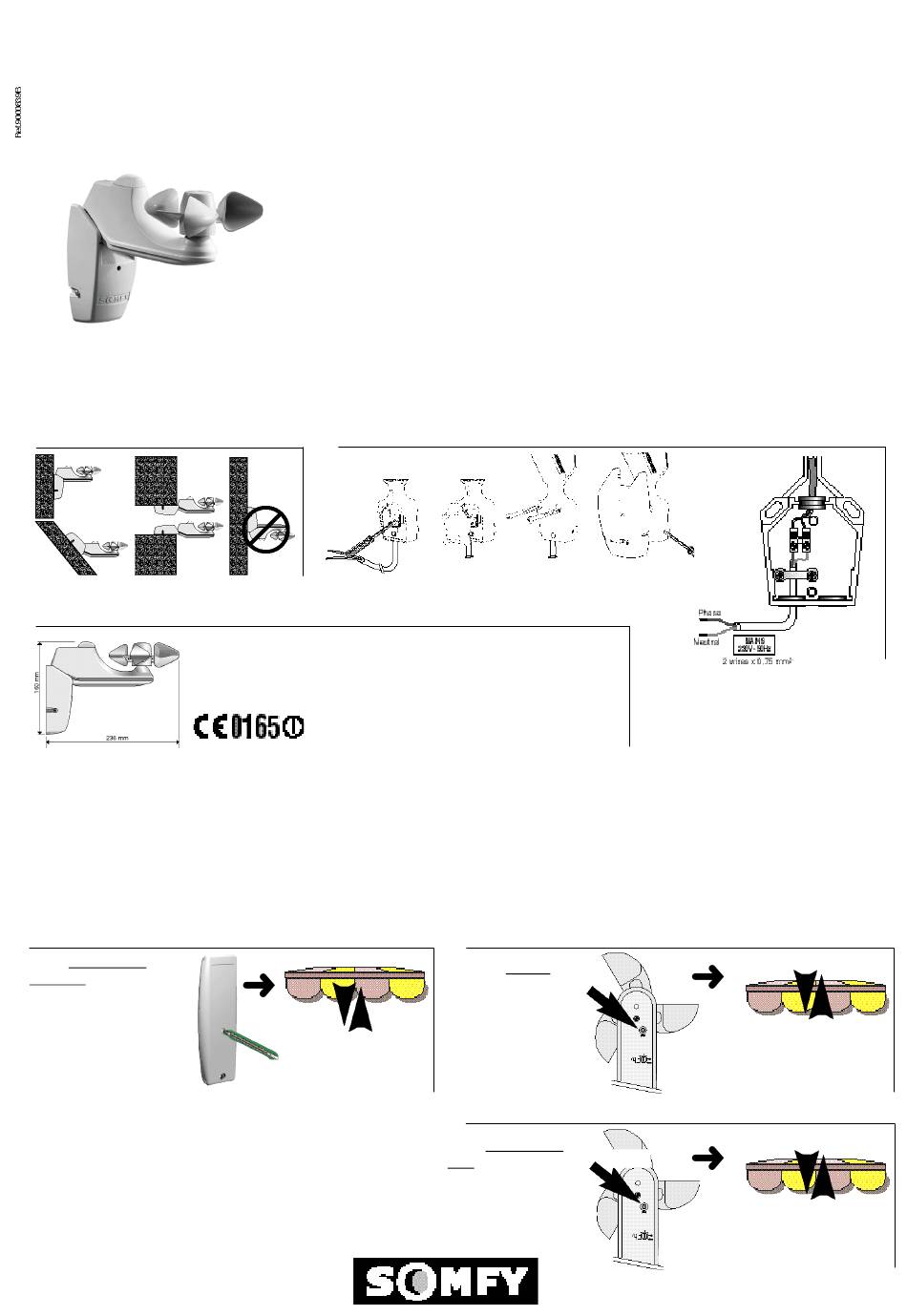

SOMFY inteo EOLIS Installation Manual

INSTALLATION
1
Installation:
Mounting
Characteristics
2
Programming:
The motor must be in its learning mode to record an EOLIS sensor RTS.
Up to three EOLIS sensors RTS can be memorized in a motor and one EOLIS sensor RTS can be memorized in seve-
ral motors.
Enter the "learning" mode
Press more than 2
s e c o n d s on the pro-
gramming button of a
RTS control which is
already memorized in the
m o t o r.
(please refer to the installation
guide of the concerned motor).
inteo

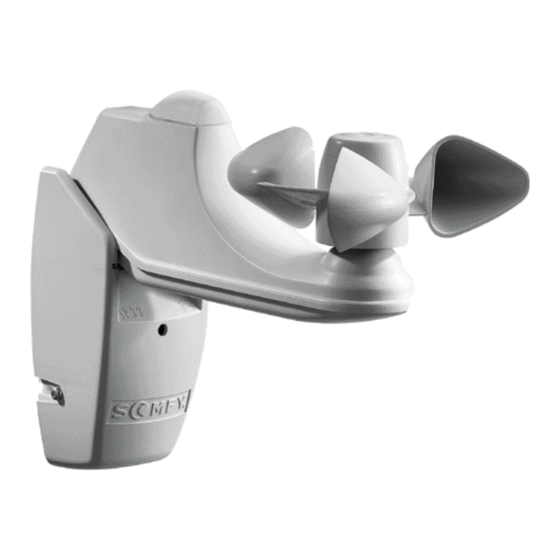

The EOLIS sensor RTS is a radio sensor for awnings with a protec-
tion against wind damage.
The wind threshold can be set directly on the EOLIS sensor RTS.
The EOLIS sensor RTS has to be used with the OREA RTS and
ALTUS RTS motors.
Cabling
Connect the cable
to the terminal.
Mains supply : 220-240 V~ 50/60 Hz
Protection index : IP34
(cable bushing not drilled. Only guaranted if professionally
installed).
Operating temperature : -20°C to +50°C
Class II product once installed
Hereby, SOMFY, declares that this equipment is in compliance with the
essential requirements and other relevant provisions of Directive 1999/5/EC.
A Declaration of Conformity is available at the web address www.somfy.com
Heading CE
The awning moves
shortly (DOWN/UP).
>2 sec.
the motor is in "learning"
m o d e .
EOLIS sensor RTS
Fix the sensor Put and screw
Put the
to the wall. the front box.
cover
Record or delete a sensor
Press briefly o n
the "prog" button
of the EOLIS
sensor RTS.
Erase all the sensors and record a new one
Press more than 7
>7 sec.
s e c . on the "prog" but-
ton of the new EOLIS
sensor RTS.
g u i d e
The awning moves shortly
( D O W N / U P ) .
If it is a new sensor : it will be recorded in the
m o t o r.
If the sensor was already recorded : it will be era -
s e d .
The awning moves shortly
( D O W N / U P ) .
the memory of the receiver is cleared
(all the previous sensors are erased)
and the new sensor is recorded.
