SOMFY inteo Light sensor Installation Manual

4
Light sensor
INSTALLATION
1
2
SOMFY SAS, capital 20.000.000 Euros, RCS Bonneville 303.970.230
All rights reserved to makes changes without prior notice.
inteo

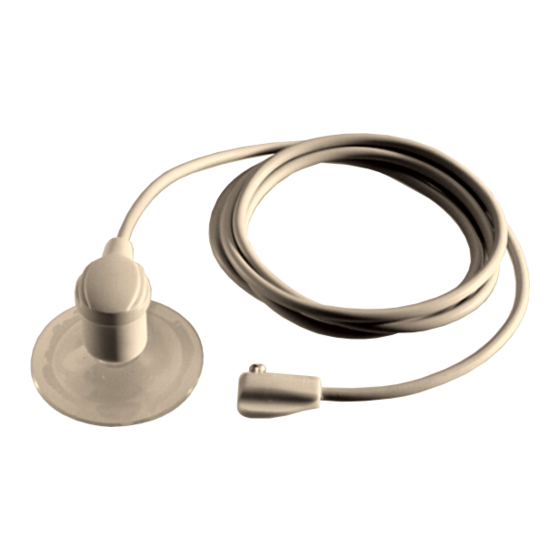

Light sensor
Together with the SOMFY Chronis Uno L, Chronis IB L and Chronis RTS L, the SOMFY
brightness sensor can be used to operate your roller shutters and venetian blinds in relation to
the amount light. These SOMFY control units have an integrated automatic solar control unit (L
= light control) that automatically creates shade if the sunshine is too strong.
In addition, the SOMFY Chronis Uno L and Chronis IB L offer an automatic dusk control unit
that operates your roller shutters and venetian blinds in conjunction with the switching time
when dusk sets in.
Installation
Insert the plug of the
brightness transmitter into
the socket on the front of
the Chronis L control unit.
Programming
3.1 Automatic solar control unit
Switching the automatic solar control unit on / off.
The automatic solar control is activated when the UP switching time is reached and de-activated when the
DO
DOWN switching time is reached. This means the following in normal use: the automatic solar control unit is
switched on during the day and off at night. When it is off, a
the automatic solar control unit on or off manually during the day.
To switch the automatic solar control unit off:
1 Press
once the time flashes.
DO
2 Press
until the bar display
3 Press
several times until
- +
4 Press
to store the changes.
To switch the automatic solar control unit back on:
1 Press
once the time flashes.
DO
2 Press
until is displayed.
3 Press
several times until the desired number of bars for the "Sun" reference value has been set.
- +
4 Press
to store the changes.
guide
Stick the suction cap of the
brightness sensor to the inside of
the window pane at the desired
shade position of the roller
shutter.
is shown in the display. You can switch
for the "Sun" reference value is displayed.
is displayed.
Light sensor
