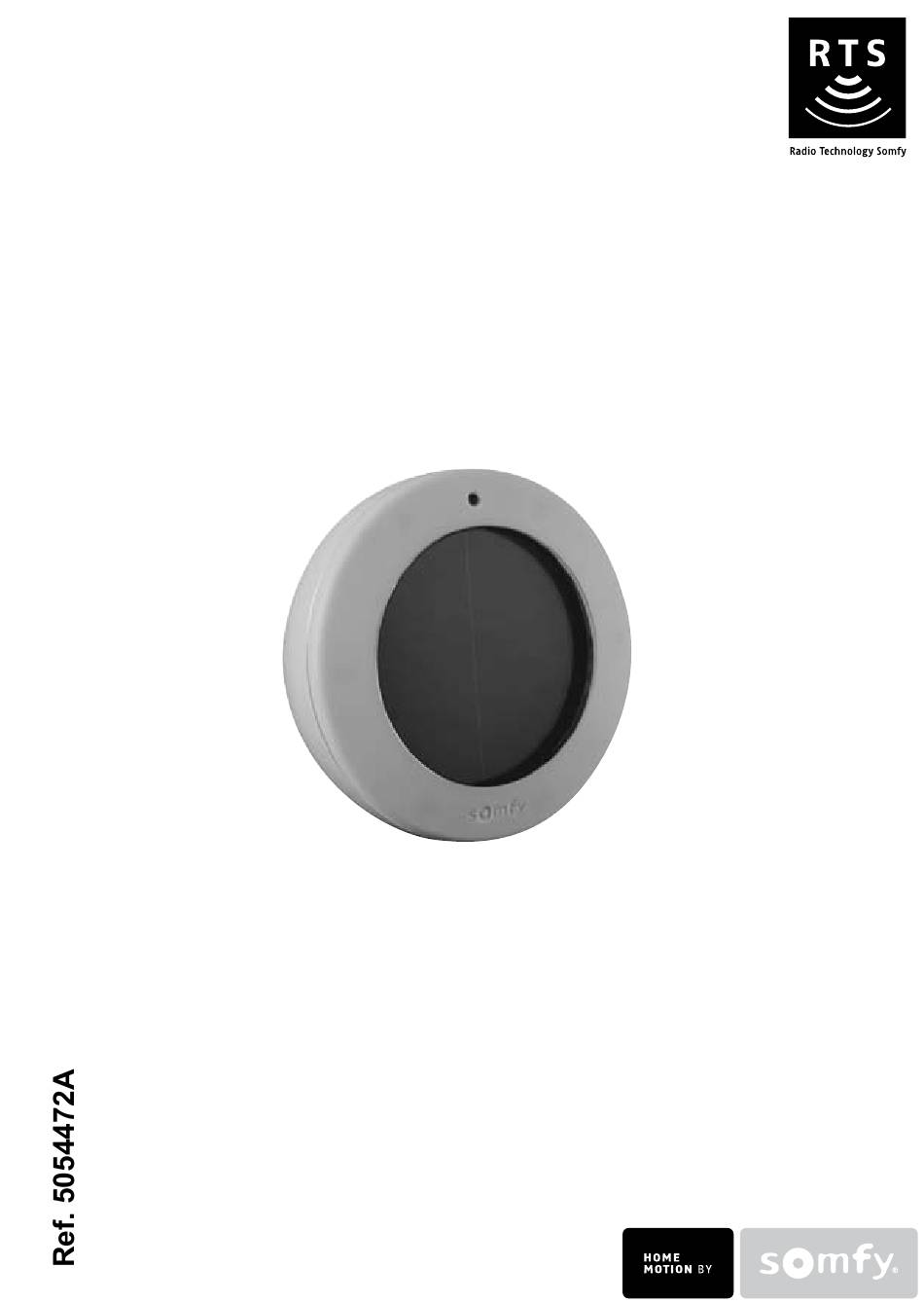

  • Page 1 Sunis RTS Operating and installation guide...

  • Page 2: Table Of Contents

    Sunis RTS Contents 1. The Sunis RTS in brief 1.1 what does the Sunis RTS do? 1.2 A few definitions 2. Safety - Important information 2.1 Installation and commissioning 2.2 Operating 2.3 Environment 3. Content of the kit and tools required 3.1 List of parts...

  • Page 3: The Sunis Rts In Brief

    In this guide, the term ‘product’ can include your awning, blind, curtain, garage door, gate, projection screen, roller shutter. well thought-out and easy to use, Somfy solutions are one of life’s little daily pleasures, making home life more enjoyable. 1. The Sunis RTS in brief 1.1 what does the Sunis RTS do?

  • Page 4: Safety - Important Information

    Keep remote controls out of the reach of children. Monitor the roller shutter/awning while it is moving, especially during commissioning of the Sunis RTS, and keep people at a distance until the roller shutter/awning is completely closed. Make sure the power supply to the roller shutter/awning is turned off before any maintenance operation in the vicinity of the product (for example, when cleaning windows near your awning).

  • Page 5: Environment

    Sunis RTS Do not wet the Sunis RTS or immerse it in liquids. Frequently check the product (e.g. awning) to detect any defects in balance or any signs of wear. Do not use the product if a repair or adjustment is required.

  • Page 6: Tools Required

    C. Solar cells (to charge the sensor) Rear: D. Indicator light showing the light inten- sity and mode selected E. PROG button F. Potentiometer G. MODE button (to switch between “INSTALLATION” and “Use” modes Copyright © 2008 Somfy SAS. All rights reserved.

  • Page 7: Technical Data

    Autonomy: 24 hours with no additional light intensity supply 5. Installing the Sunis RTS 5.1 Components required for installation To install and use the Sunis RTS, the roller shutter/awning to which the Sunis is connected should already be linked to a remote control equipped with the Sun function: •...

  • Page 8: Adding The Sunis Rts

    This guide describes the procedure for connecting a Sunis RTS to a compatible RTS roller shutter/awning. To connect the Sunis RTS to several motors, carry out the procedure described in the paragraph entitled “Connecting the Sunis RTS” for each of the roller shutters/awnings to be connected.
  • Page 9 Press the PROG button (E) on the Sunis RTS briefly with the tip of a pencil: the associated roller shutter/awning moves slightly again (or 8 “beeps” sound) to indicate that the Sunis RTS has been programmed. Copyright © 2008 Somfy SAS. All rights reserved.
  • Page 10 NB: if channel 5 cannot be used to control the roller shutter/awning to be connected to the Sunis RTS, connect the roller shut- ter/awning to the fifth channel of the Telis 4 Soliris RTS (refer to the Telis 4 RTS...
  • Page 11 5.2.5 Connecting the Sunis RTS from a Telis Composio RTS A linked individual remote control must be used to install the Sunis RTS from a Telis Composio RTS. It is not possible to install the Sunis RTS directly from the Telis Composio RTS.
  • Page 12 5.2.6 Connecting the Sunis RTS from an Impresario Chronis RTS A linked individual remote control must be used to install the Sunis RTS from an Impresario Chronis RTS. It is not possi- ble to install the Sunis RTS directly from the Impresario Chronis RTS.

  • Page 13: Setting

    Install the Sunis RTS on a sunny day with no wind. Caution! Never configure the settings on a windy day. To set or adjust the Sunis RTS, stand near to the roller shutter/awning, preferably outside, in order to simulate normal conditions of use.
  • Page 14 Sunis RTS has detected the current sunlight. Press the MODE button (G) on the Sunis RTS with the tip of a pencil until the associated roller shutter/awning moves slightly (or 3 “beeps” sound) to exit INSTALLATION mode and activate...

  • Page 15: Mounting The Sunis Rts

    (see paragraph 2.2 Use and 8.3 Maintenance). Do not install the Sunis RTS under a balcony, eaves, an awning or in any other place where it could be shaded from the sun. Do not install the Sunis RTS under a lamp, lamppost or any other source of artificial light that may interfere with the detection of sunlight.

  • Page 16: Mounting And Fitting

    Caution: do not use round head screws, only flat screws of the diameter indicated. Place the Sunis RTS on the bracket with the sunlight sensor at the top. Turn the Sunis RTS clockwise to secure it on the bracket.

  • Page 17: The Sunis Rts Day To Day

    RTS sends a signal to the roller shutter/awning and places it in the protection position. when the sunlight level drops below the set threshold, the Sunis RTS sends a signal to the roller shutter/awning. The roller shutter/awning then analyses the signal and starts to move after a delay of 15 to 30 minutes.

  • Page 18: Sunis Rts With Awning

    8.3 Sunis RTS with awning The reactions of the awning when the sun appears and disappears depend on: • how long the sunlight lasts, as detected by the Sunis RTS, • the type of motor fitted to the awning, and •...

  • Page 19: Sunis Rts With Roller Shutter

    8.4 Sunis RTS with roller shutter The reactions of the roller shutter when the sun appears and disappears depend on: • how long the sunlight lasts, as detected by the Sunis RTS, • the type of motor fitted to the roller shutter, and •...

  • Page 20: Modifying The Sunlight Sensitivity Threshold

    ► ger movement. 8.6 Maintenance The Sunis RTS operates using a sunlight sensor and solar cells. Make sure that the sunlight sensor and the solar cells are kept clean, and are not obstructed by leaves, snow, etc. Clean the sunlight sensor and the solar cell protective glass using a dry cloth.

  • Page 21: Problems With The Sunis Rts

    The roller shutter/awning Place the roller shutter in is already in the favourite the raised position to check position. whether it lowers to the favou- rite position (see paragraph “Sunis RTS with roller shutter”). Copyright © 2008 Somfy SAS. All rights reserved.
  • Page 22 RTS, stand near to the roller shutter/awning and carry out the adding procedure (see section entitled “Adding the Sunis RTS”). If the Sunis RTS still does not operate, contact Somfy's support service. Copyright © 2008 Somfy SAS. All rights reserved.

  • Page 23: Removing The Sunis Rts

    RTS briefly with the tip of a pencil: the associated roller shutter/awning moves slightly again (or 8 “beeps” sound) to indicate that the Sunis RTS has been removed. Remove the bracket from the wall if the Sunis RTS is no longer being used.
  • Page 24 Tel: +1 (0) 609 395 1300 website: www.somfy.com/nam/index. cfm?language=en-us Somfy hereby declares that this product conforms to the essential requirements and other relevant provisions of Directive 1999/5/CE. A Declaration of Conformity is available at www.somfy.com/ce. For use in the European Union, the Swiss Confederation (Switzerland) and Norway.
