SOMFY inteo EOLIS RTS Installation Manual

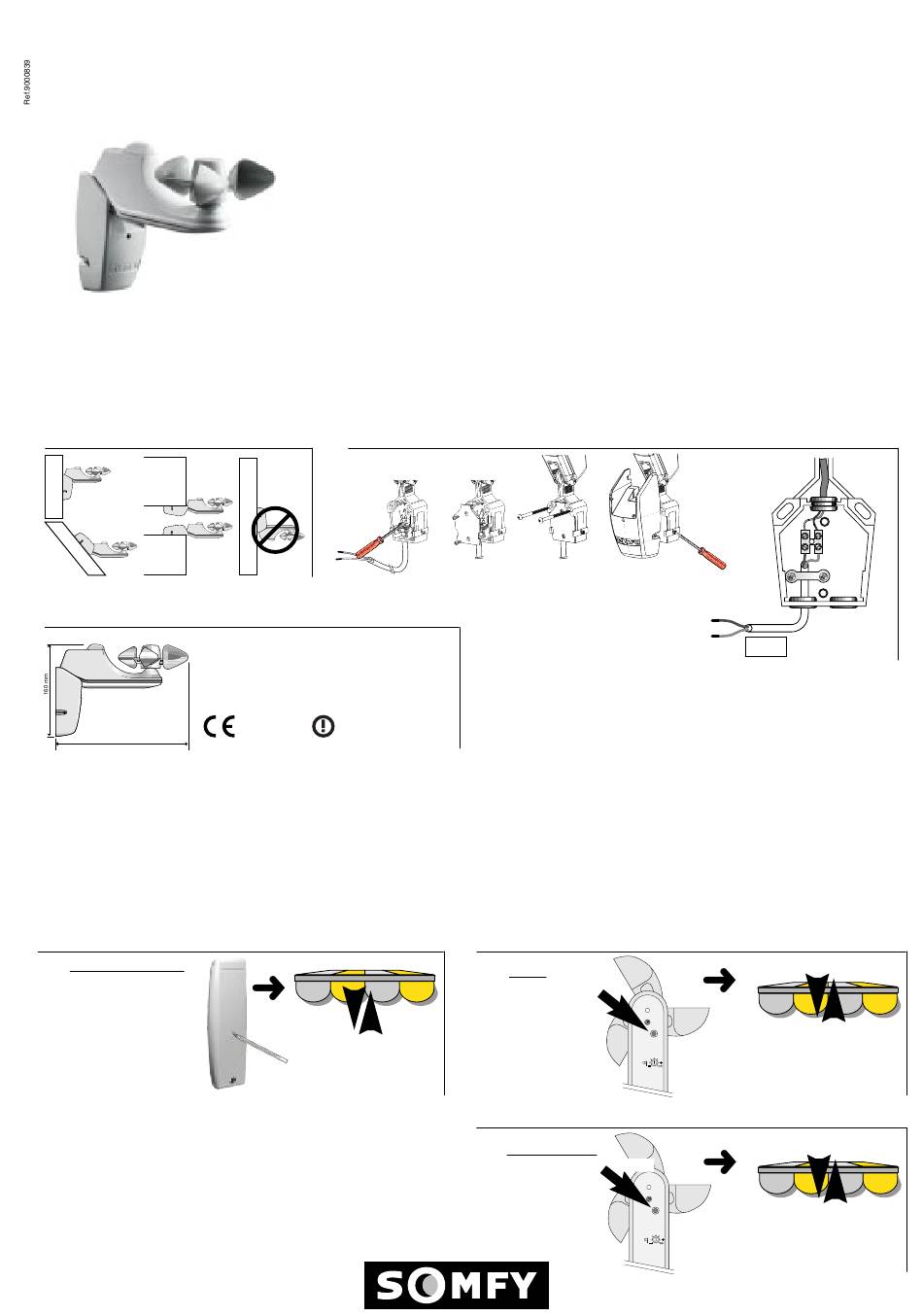

INSTALLATION
1
Installation:
Mounting
Characteristics
236 mm
2
Programming:
The motor must be in its learning mode to record an EOLIS sensor RTS.
Up to three EOLIS sensors RTS can be memorized in a motor and one EOLIS sensor RTS can be memorized in several motors.
Enter the "learning" mode
Press more than 2 seconds
on the programming button of
a RTS control which is already
memorized in the motor.
(please refer to the installation guide of
the concerned motor).
inteo

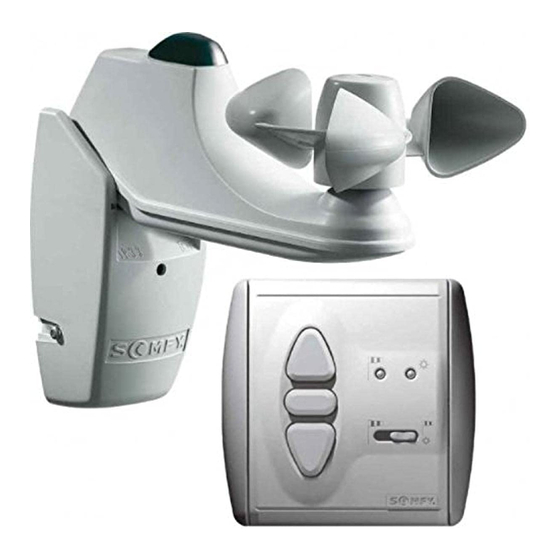

The EOLIS sensor RTS is a radio sensor for awnings with a protection against
wind damage.
The wind threshold can be set directly on the EOLIS sensor RTS.
The EOLIS sensor RTS has to be used with the OREA RTS and ALTUS RTS
motors.
Cabling
Connect the cable
to the terminal.
Mains supply : 220-240 V~ 50/60 Hz
Protection index : IP34
Operating temperature : -20°C to +50°C
Class II product once installed
0165
(Find in annex the CE declaration of conformity)
The awning moves shortly
(DOWN/UP).
>2 sec.
the motor is in "learning" mode.
EOLIS sensor RTS
Fix the sensor Put and screw
Put the
to the wall. the front box.
cover
Record or delete a sensor
Press briefly on the
"prog" button of the
EOLIS sensor RTS.
Erase all the sensors and record a new one
Press more than 7 sec. on
>7 sec.
the "prog" button of the
new EOLIS sensor RTS.
®
guide
Phase
Neutral MAINS
230V - 50Hz
2
2 wires x 0,75 mm
The awning moves shortly (DOWN/UP).
prog
If it is a new sensor : it will be recorded in the motor.
If the sensor was already recorded : it will be erased.
The awning moves shortly (DOWN/UP).
prog
the memory of the receiver is cleared (all the
previous sensors are erased) and the new sen-
sor is recorded.
