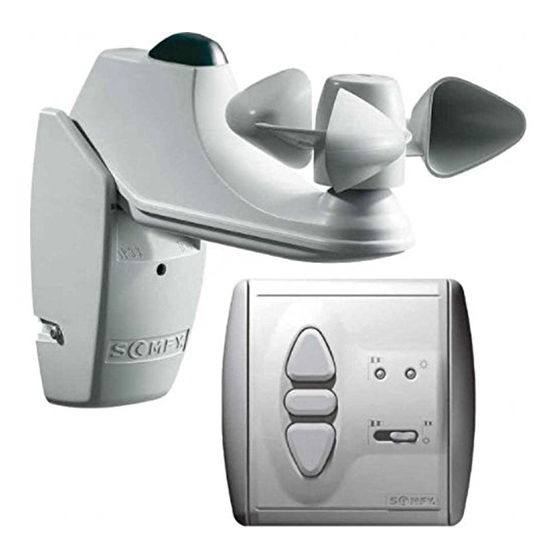

24V EOLIS RTS SENSOR KIT
CAT NO. 6301050
(Includes transformer, not shown)
1
Installation
2
Wiring
WARNING: For the
EOLIS RTS SENSOR
transmitter which is memorized into the motor's receiver, must be
configured correctly. The DOWN button MUST correspond to
DOWN on the end product. In the case of an awning, it will open
or extend the awning. If the UP button extends the awning, the
wind sensor will also extend the awning during windy conditions.
THIS IS DANGEROUS! Damage and injury could occur. Do not
proceed until proper operation of the transmitter is verified.
Please refer to the installation instructions of the relevant motor
to change the direction if necessary.
A. Power input to the sensor is not polarized,
but turn off the power and fully discharge
the transformer before making final connections.
B. The cable distance between the power supply
and the sensor must not exceed 164 feet.
TO 24V AC/DC
TRANSFORMER
3. Connect the cable leads to the terminals
- Terminal block is removable for
easier connections and the input power
is not polarized.
SOMFY SYSTEMS, INC. reserves the
right to update, change or modify
these instructions without prior notice.
REF. NO: 182450A
COPYRIGHT C SOMFY SYSTEMS, INC.
inteo
EOLIS RTS
Installation Instructions
The
EOLIS RTS
The wind threshold can be set directly on the
The
EOLIS
Power supply :
Rated Current :
The
EOLIS RTS
Operating temperature : -4
to function properly, the
SOMFY MEXICO S.A. De C.V.
Calle 3 No. 47, Loc. E-5
Fracc Ind. Alce Blanco
Nau., Edo. de Mex C.P . 53370
4/02
sensor
is a radio wind sensor for awnings
RTS
sensor
is compatible with the
24V AC/DC
25 mA at 24V DC
sensor
must be supplied by a class 2 transformer
0
F to +122 F/-20 C to +50 C
1. Remove Cover and unscrew
plate over wiring compartment
UP
STOP
DOWN
x
4. Replace wire
compartment cover
SOMFY SYSTEMS, INC.
47 Commerce Drive
Cranbury, NJ 08512
sensor
24V
EOLIS RTS
sensor
.
LT RTS CMO
and
ALTUS RTS
0
0
0
2. Loosen the strain relief
plate and guide the power
supply wires through
the black grommet into
terminal block
strain
relief
TO 24V AC/DC
TRANSFORMER
5. Attach the sensor to the wall.
Replace front cover and secure
with screws provided
SOMFY CANADA
6315 Shawson Drive, Unit #1
Mississauga, Ontario L5T1J2
motors only.
Dimensions
9.3 in./236 mm
grommets
x
