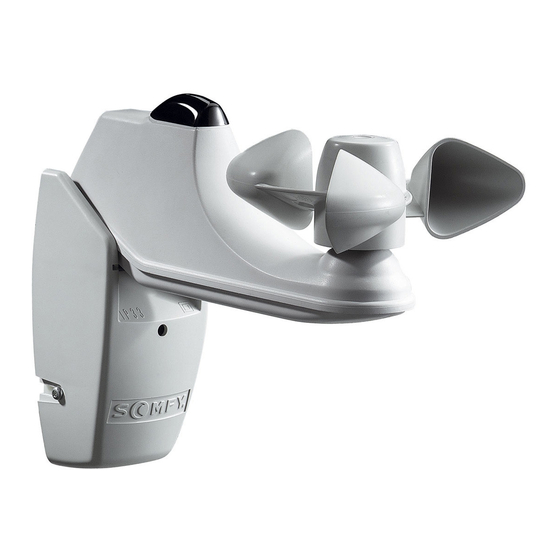

SOMFY Soliris io Manual

SOMFY Soliris io Manual

Defu detailed functionalities
Hide thumbs Also See for Soliris io:

Advertisement

DEFU Detailed Functionalities
Soliris io
DEFU_DOC158584_000 SOLIRIS io.ppt
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Soliris io and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SOMFY Soliris io

  • Page 1 DEFU Detailed Functionalities Soliris io DEFU_DOC158584_000 SOLIRIS io.ppt...
  • Page 2 Révision Indice Description Date Modified by Creation 20/11/2019 S.NICOLAFRANCESCO...
  • Page 3: Table Of Contents

    SUMMARY 1. PRODUCT PRESENTATION 2. SYSTEM INTEGRATION 2.1 Mode 1 2.2 Mode 2 2.3 Mode 3 INSTALLATION 3.1 Installation situation 3.2 Wiring 3.3 Pairing 1W & 2W 4. BEHAVIOUR 4.1Wind & sun in mode 1 4.2 Rain in security and comfort mode 4.3 Wind, sun &...
  • Page 4: Product Presentation

    PRODUCT PRESENTATION 1. PRODUCT PRESENTATION...
  • Page 5 SOLIRIS io Designed from 28 to 88km/h ✓ Local setting in 1W mode ✓ Compatible with rain sensor for security or ✓ comfort benefits (wired Ondeis) Always 230V Powered, no battery matter ✓ Io protocol 1W &2W ✓ Lpm 250ms compatibility postponed...
  • Page 6 Soliris io Application perimeter Wind & Swinging Roller Shutters Screen & Awnings Pergola shutter (Sun only) Zip screen Rain Screen & Security & Pergola Awnings Zip screen Comfort Comfort Screen & Pergola Roller Awnings Zip screen Shutters Not compatible with Autonomous actuators...
  • Page 7: System Integration

    PRODUCT PRESENTATION 2. SYSTEM INTEGRATION...
  • Page 8: Mode 1

    Sensor behaviour is directed by SOMFY recommendations (see appendix) Mode 2 (available in 2021): ⚫ ▪ Intelligents motors are paired at the soliris io sensor (as pergola box unit) ▪ Only one way remote control is used & paired ▪...
  • Page 9 Soliris io 2.1 SYSTEM INTEGRATION mode 1 Typical installation using sun, wind & rain in 1W Offer 230V Soliris io Wind 1W order Wind & => go to secured Rain sensor (opt) Rain position Rain: 1W order Sun: 1W order Soliris set on Security =>...
  • Page 10: Mode

    Soliris io 2.2 SYSTEM INTEGRATION mode 2 Typical installation using sun, wind & rain in 1W with intelligence in receiver Offer 230V Soliris io Wind 1W order => Wind level Wind & Rain sensor (opt) Rain Rain: 1W order Sun: 1W order...
  • Page 11 Soliris io 2.3 SYSTEM INTEGRATION mode 3 Typical installation using sun, wind & rain in 2W with TaHoma Offer 230V Soliris io Wind 1W order => => go to secured Rain sensor (opt) Rain Position & possibility for the future to send...
  • Page 12: Installation

    PRODUCT PRESENTATION 3. INSTALLATION...
  • Page 13: Installation Situation

    Soliris/Eolis io 3.1 Installation situations Cover assembling 1 direction only (not possible to reverse the cover position on the sensor)
  • Page 14: Wiring

    Soliris/Eolis io 3.2 Wiring (as Eolis io) Selector to choose Security or Comfort mode (rain Ondeis) 3 Positions: C=comfort S=secutity Neutral=no rain sensor Sensor Rain Plug for power supply Plug for Ondeis sensor (230V) (dry contact)
  • Page 15 Soliris io 3.3 pairing with 1W ecosytem Ondeis Soliris io Usual « Prog prog » procedure Soliris io and Ondeis paired to actuator...
  • Page 16 Soliris io 3.3 pairing with 2W ecosytem Pair Soliris+Ondeis by Ondeis Tahoma discovering process Soliris io Wind Soliris wind io paired to actuator Soliris sun & Ondeis paired to Tahoma Soliris must be set on Comfort • • 1W pairing for rain (security) & Sun...
  • Page 17: Behaviour

    PRODUCT PRESENTATION 4. BEHAVIOUR...
  • Page 18: Wind & Sun In Mode

    4.1 Wind in mode 1 Not recommended Awning Swinging Shutter Roller Shutter External Screen Ext Venitian Blind Pergola Pergola bio Roller Shutter with tilting slates No Action wind Go to secured position (ex: pergola bio = Slates open)=>command ACTIVATE_FUNC_D80A With Fast speed (if implemented by actuator) + blocking manual order 30s + blocking automatism order 11min 30s (after blocking manual order 30s)
  • Page 19 4.1 Sun in mode 1 Mode 1 The sensor will send 1 frame containing: = EVB go to « MY » & RS go to « MY » & All go to « Down End Limit » (pergola = Slates Closed) & All with « Low speed » (for actuators who manage low speed) = EVB go to «...
  • Page 20 4.2 Rain in security mode Not recommended Awning Swinging Shutter Window Opener Roller Shutter External Screen Ext Venitian Blind Pergola Pergola bio Roller Shutter with tilting slates No Action rain Go to secured position (pergola bio = Slates open) With Fast speed (if implemented by actuator) IVB = orientation Moves to the safety position automatically and remains blocked as long as the sensor detects rain.
  • Page 21 Moves to the lower end limit (or my) position automatically and remains blocked as long as the sensor detects rain. If the sensor is paired with a Somfy io bi-directional control point (e.g. TaHoma ), the scenario programmed by the user is activated.
  • Page 22 4.3 Wind / rain / sun behavior in mode 1 RAIN WIND ACTION (Security) GOTO 0% - Slat flat for EVB UEL (Fast) (secured position) UEL (Fast) (secured position) DEL for other io profile compatible My for RS, SW Shutter My for EVB UEL (Fast) (secured position) UEL (Fast) (secured position)
  • Page 23: Appendix

    PRODUCT PRESENTATION 5. Appendix...
  • Page 24 Soliris io Wind function : Potentiometer Potentiometer will be deliver on position 1 The change of threshold is made just upper the level of the mark. The value remains the same throughout the entire beach The Wind LED flashes number corresponds to the threshold set The feedback corresponding to the set threshold appears after 2s.
  • Page 25 Soliris io Wind function : Potentiometer Beaufort correspondence 8 Bft 7 Bft 9 Bft 6 Bft 10 Bft 5 Bft...
  • Page 26 Soliris io Wind Function (demo mode) Check the wind function: Lower the actuator. Turn the wind potentiometer to the « Demo » position. (Threshold for demo mode = Threshold 1) ➔ The motor makes a brief up and down movement Turn the anemometer manually to simulate the wind blowing.
  • Page 27 Soliris io Soliris io – Sun threshold setting ◼ Threshold 5 ~ 33,3 KLux Threshold 4 ~ 25 KLux Threshold 6 ~ 41,7 KLux Threshold 3 ~ 16,7 KLux Threshold 7 ~ 50 KLux Threshold 2 ~ 8,3 KLux Threshold 1~ 1 Klux...
  • Page 28 Thanks...
