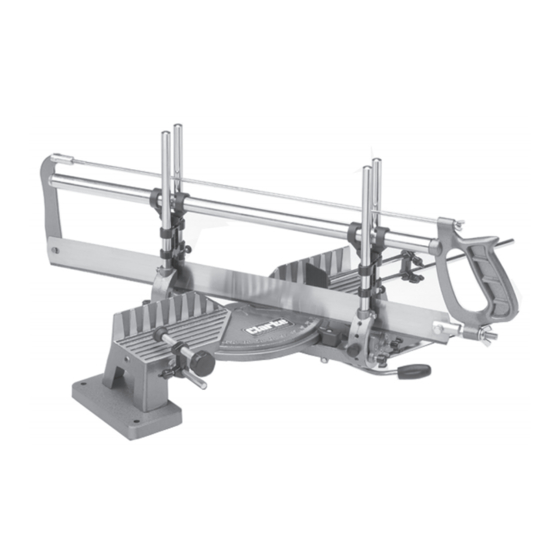

- Page 1 COMPOUND MITRE SAW MODEL NO: MBS600C Part No: 6461512 ASSEMBLY INSTRUCTIONS GC0311...
- Page 2 GUARANTEE This CLARKE product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt as proof of purchase.
- Page 3 COMPONENT GUIDE FIG 1 Upon receipt of the product, unpack all loose components and check for any missing parts. Any identified should be reported to your Clarke dealer. The MBS600C includes the following: 1 x Saw Frame c/w Blade 1 x Mitre Table...
- Page 4 ASSEMBLY BASE PLATES Attach the Base Plates to the Mitre Table using the socket head screws and flat washers provided - two for each base. • A 3mm hex key is required. • The two holes nearer the edge of the base should be towards the outside of the Mitre Table and are visible when assembled as shown in Fig 2.
- Page 5 GUIDE RODS, SAW FRAME AND BLADE Insert the Guide Support Rods into the holes in each angle setting quadrant as shown in Fig. 5 and secure using the x-head screws. Slide a Depth Stop Collar onto either one of the Guide Support Rods at each end of the carriage, before carefully sliding the guides of the Saw Frame Assembly onto the Guide Support Rods.
- Page 6 USING THE MITRE SAW CUTTING SIMPLE MITRES OR BEVELS Simple mitres or bevels are cuts made in one plane only. For simple mitres, the carriage is moved to the desired angle to the base by lifting the Locking Lever to allow the carriage to swivel, with the saw blade remaining perpendicular to the table.
- Page 7 SPECIFICATIONS Please note that the details and specifications contained herein, are correct at the time of going to print. However, CLARKE International reserve the right to change specifications at any time without prior notice. Parts & Service: 020 8988 7400/E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
